Follow these steps to attach the cable-management brackets to both sides of the Cisco ASR 1001 Router in
the rack:
SUMMARY STEPS
1.
Align the cable-management bracket to the rack-mount bracket on one side of the Cisco ASR 1001 Router.
The cable-management bracket aligns to the top hole of the chassis rack-mount bracket.
2.
Using a Phillips screwdriver, insert the screw through cable-management bracket and into the chassis
rack-mount and tighten the screw.
3.
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the
chassis rack-mount (see Figure 212: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management
Bracket, on page 437).
DETAILED STEPS
Step 1
Align the cable-management bracket to the rack-mount bracket on one side of the Cisco ASR 1001 Router. The
cable-management bracket aligns to the top hole of the chassis rack-mount bracket.
Step 2
Using a Phillips screwdriver, insert the screw through cable-management bracket and into the chassis rack-mount and
tighten the screw.
Use the package of screws that came with your chassis containing four screws.Note
The following image shows where to attach the front rack-mount brackets to the Cisco ASR 1001 Router in a rack.

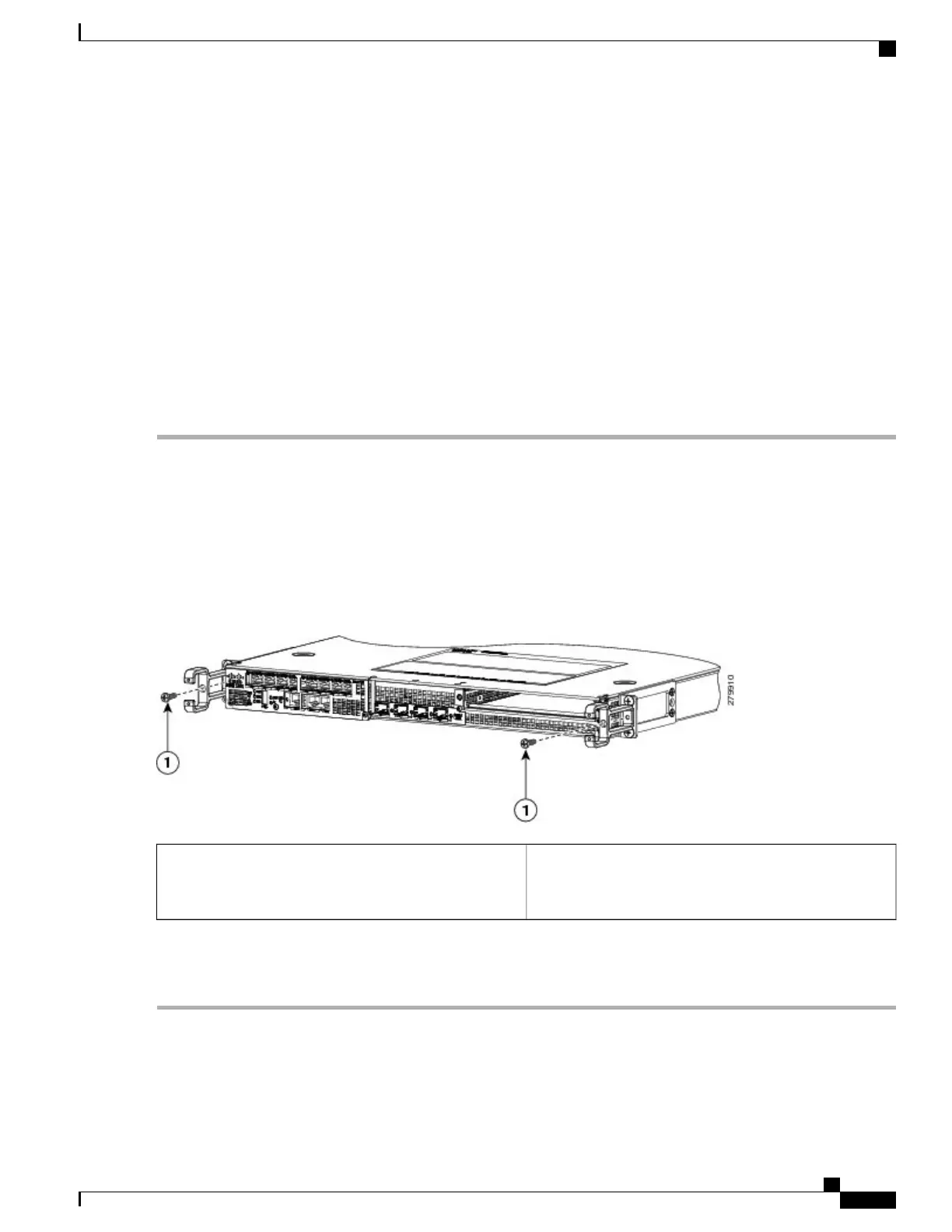

Figure 212: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket
Secure the cable-management screw to the middle ear hole
of the front rack-mount bracket on both sides of the Cisco
ASR 1001 Router.
1
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Figure 212: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket, on page 437).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis.
Cisco ASR 1000 Series Router Hardware Installation Guide
437
Cisco ASR 1001 Router Overview and Installation
Attaching the Cable-Management Bracket
