Cisco ASR 1002-X Hardware Installation Guide

*For information about
the DB-25 alarm
connector, how it works,
and Cisco ASR 1000
route processor LEDs, see
the xref “How Cisco
ASR1000-RP Alarm
Monitoring Works”
section on page 2-20.
Note: Shielded cables
must be used to connect
to the DB-25 alarm
connector on both the AC
and DC power supplies,
in order to comply with
FCC/EN55022/CISPR22
Class A emissions
requirements.

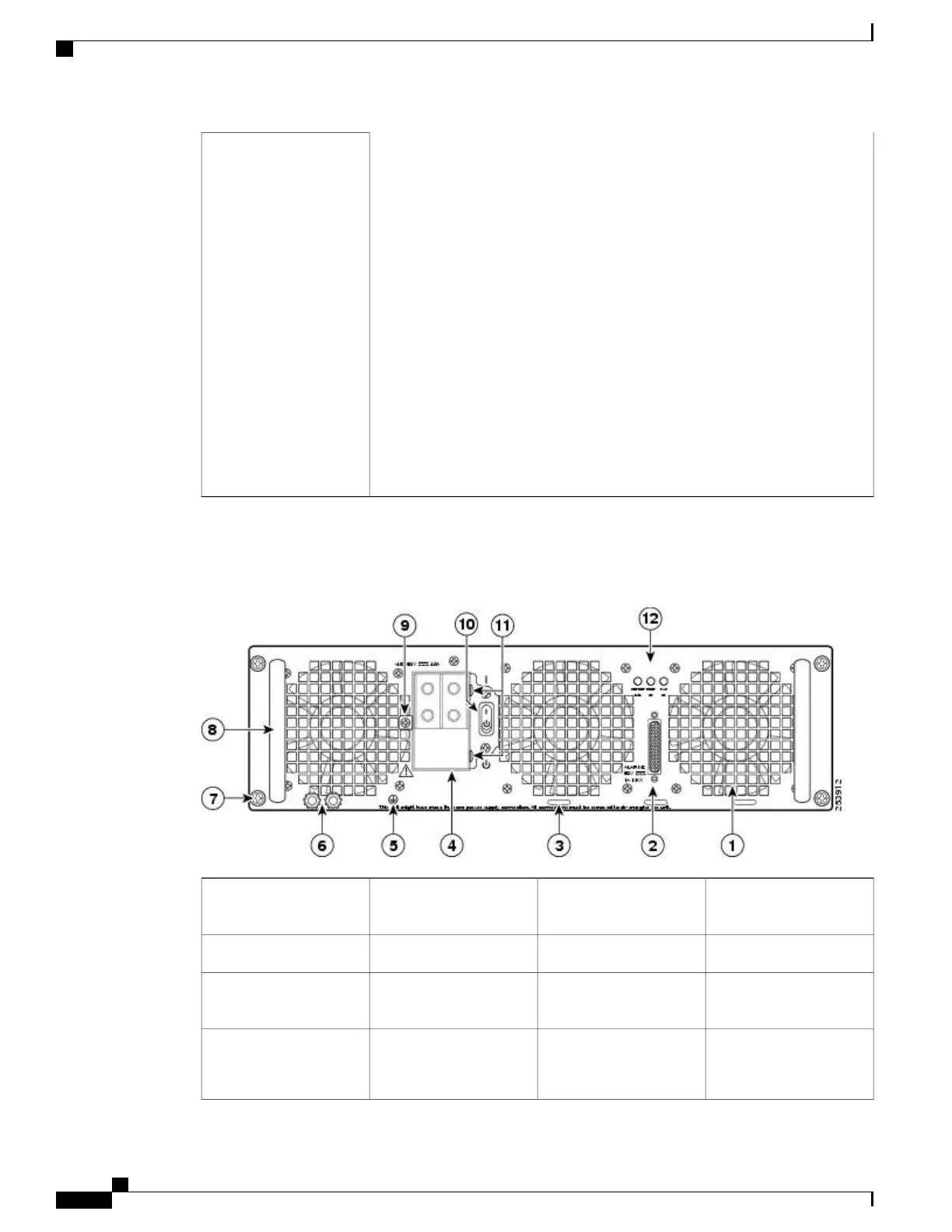

The following figure shows the ASR1013/06-PWR-DC power supply and components.
Figure 266: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC)
DC power supply captive
screw
7Fan1
DC power supply handle8DB-25 alarm connector*2
Terminal block and
plastic cover single screw
9Tie-wrap tab3
On/Off (|/O) circuit
breaker switch
10DC power supply
terminal block and plastic
cover
4
Cisco ASR 1000 Series Router Hardware Installation Guide
544
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a DC Power Supply in Cisco ASR 1006 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
