AV7000 LINEAR CAMERA REFERENCE MANUAL

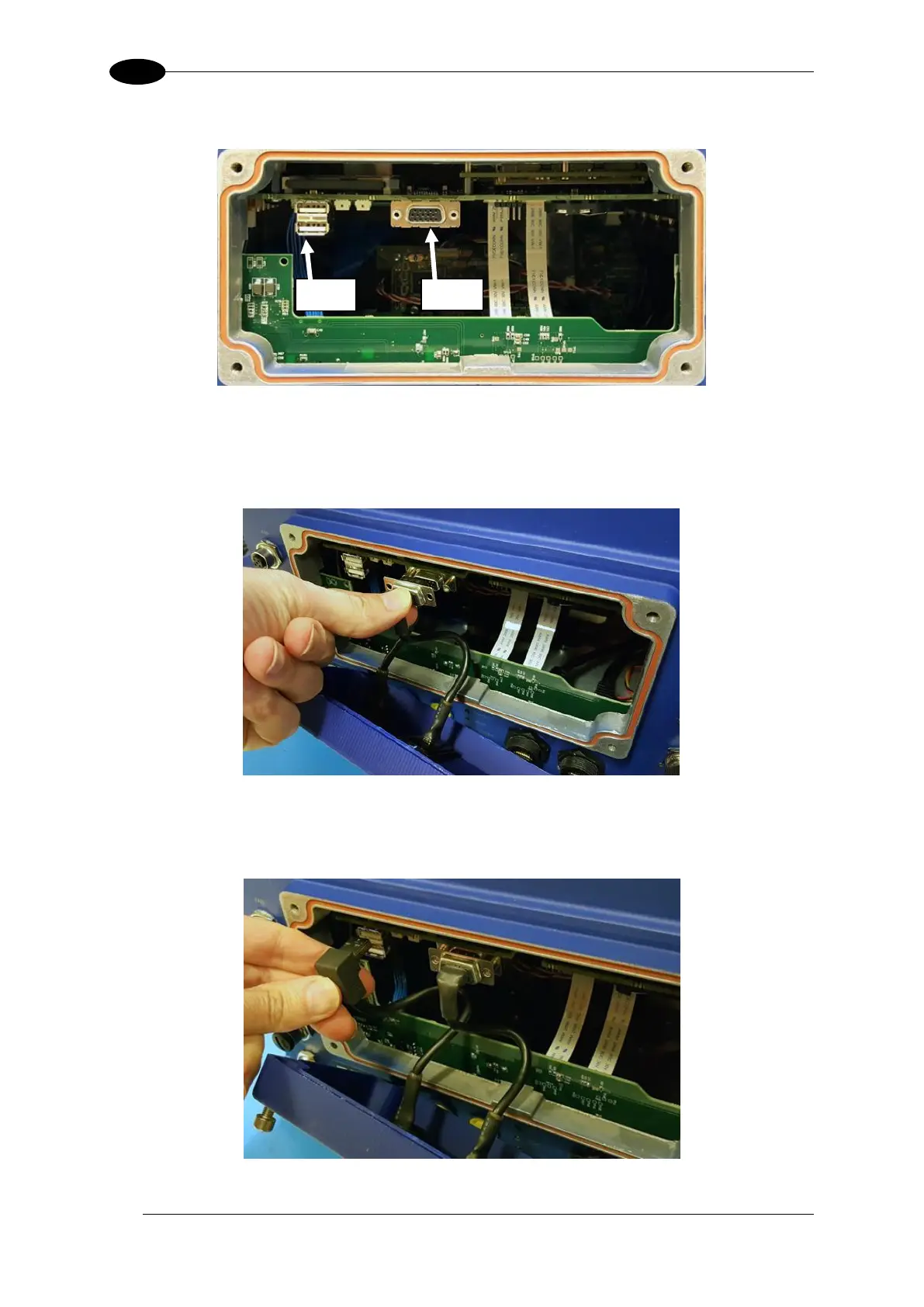

3. Locate the USB and VGA connectors inside the camera.
Figure 90: USB and VGA Connectors inside camera
4. Connect the VGA cable on the back of the VGA / USB Interface Panel Kit to the VGA
connector inside the back of the camera.
Figure 91: Connecting VGA Cable
5. Connect the USB cable on the back of the VGA / USB Interface Panel Kit to one of the
USB connectors inside the back of the camera.
Figure 92: Connecting USB Cable
