MECHANICAL INSTALLATION
33
2
2.4.9 AV7000 Bracket Angles
Standard camera bracket angles are shown below. The YELLOW bolt indicates the locking
position between the Main Bracket (blue) and Rising Bracket (red).
NOTE: In most applications, the viewing angle is created with a
deflection mirror and its brackets, and the camera is mounted at 90-
degrees.
NOTE: The “left” and “right” references shown below refer to the
ends of the illumination, and not the AV7000’s position on the
mounting structure.

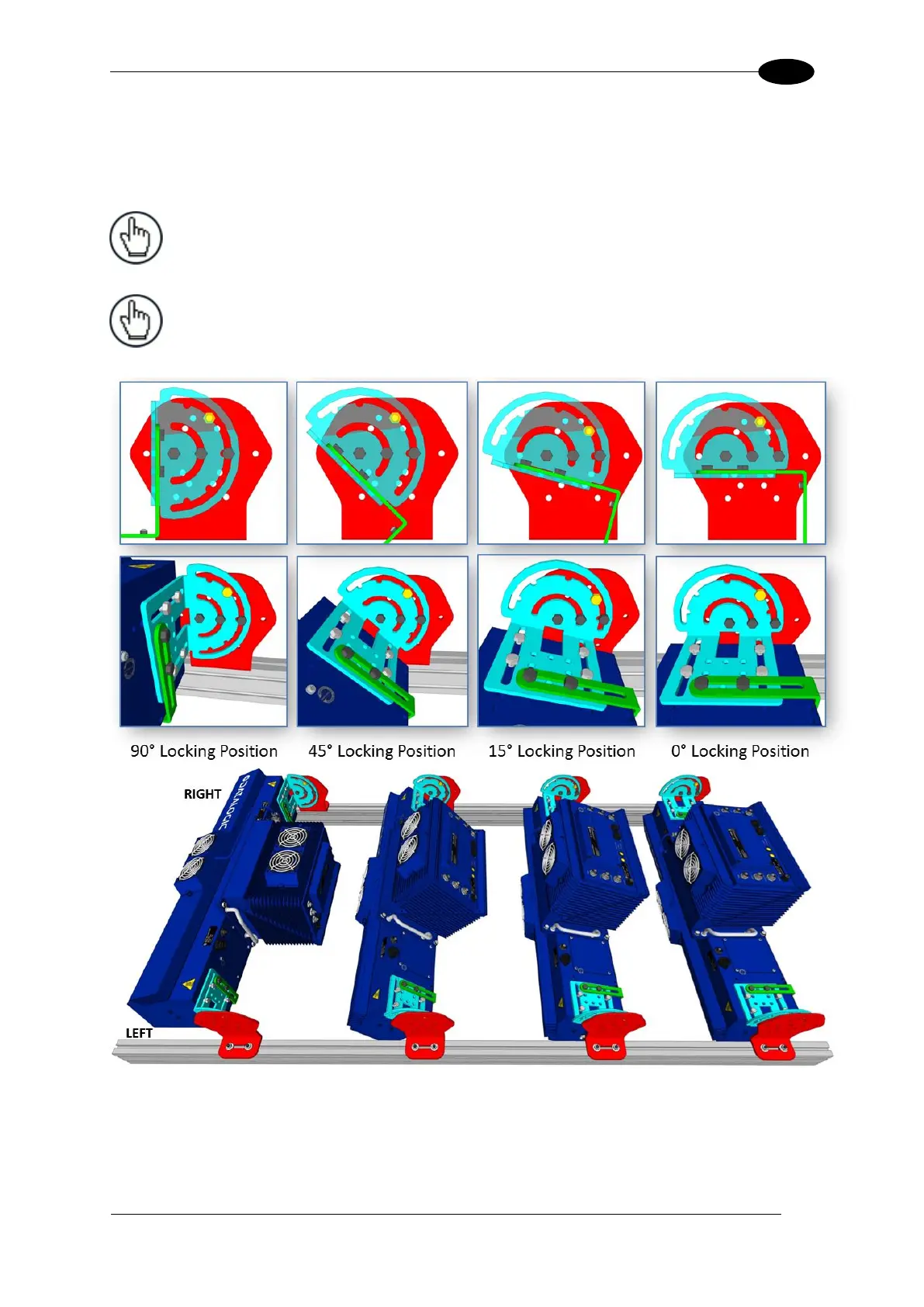

Figure 32: Standard TOP Mount AV7000 Bracket Angles (with locking bolt position)
