AV7000 LINEAR CAMERA REFERENCE MANUAL
32
2
AV7000 Side Mounting Sequence:
1. Mount the cooling fan to the AV7000 camera (See section 2.4.11).
2. Pre-assemble the Illuminator brackets according to the application.
3. Mount the bracket to the station frame.
4. Place the lower end of the illumination on the bottom bracket, and then tilt the top end of
the illumination in line with the top bracket.
5. Lower the top support bracket down to capture the locating pins in the end of the
illumination. See Locating Pins in the illustration below.
6. Mount the Camera to the illuminator.
0.

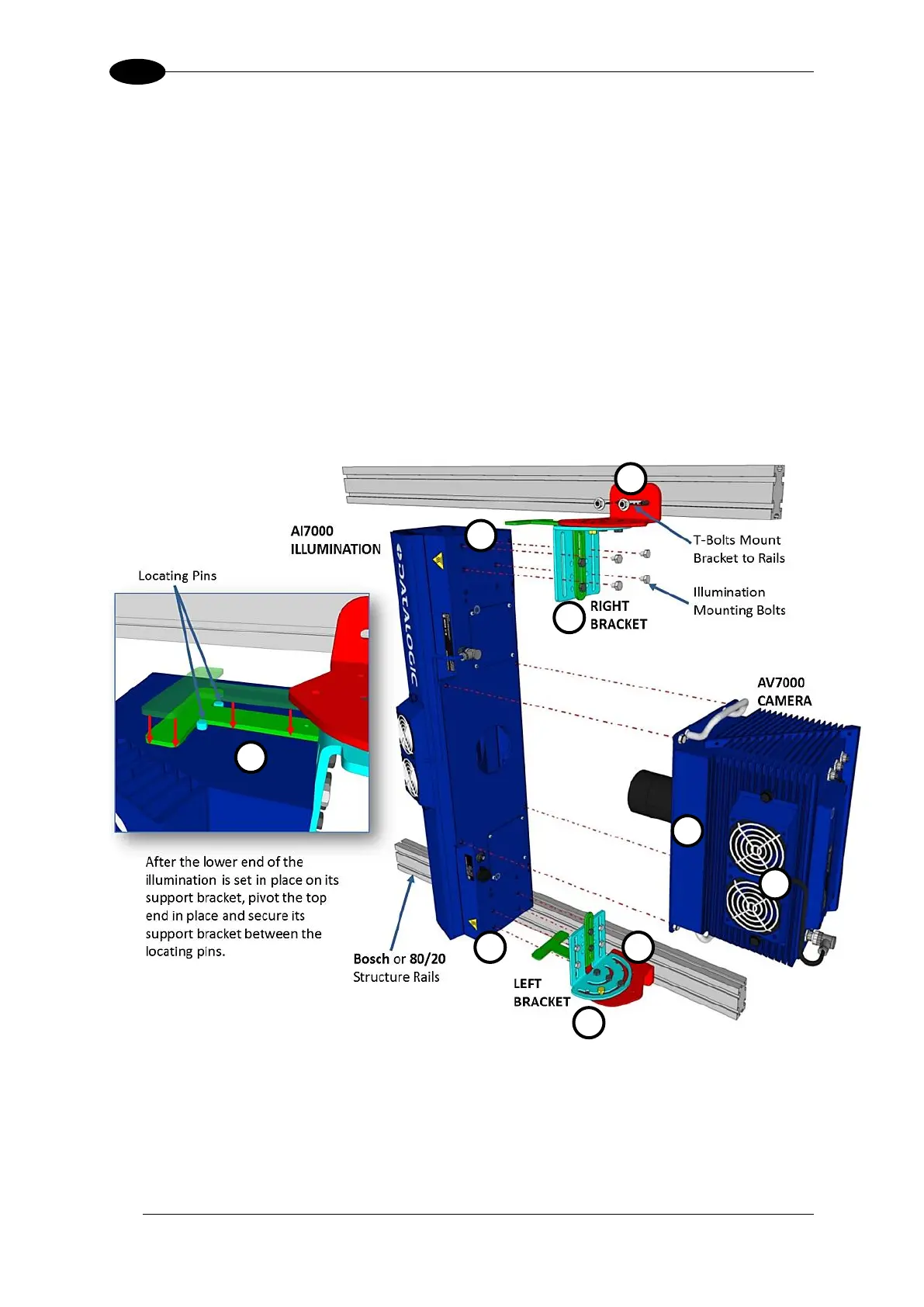

Figure 31: Mounting a SIDE AV7000 Camera
1
2
2
3
3
4
4
5
6
