7.3 BYPASSING AN AV7000 IN AN ARRAY (TUNNEL)
If for any reason, a slave AV7000 needs to be removed from an array (tunnel), it can be
bypassed to allow the array to continue functioning in a redundant loop, minimizing down
time.
To do this, remove the sync cables from SYNC IN and SYNC OUT connectors of the slave
AV7000 and connect the sync cables end-to-end to complete the sync network. When the
slave AV7000 is ready to be brought back into the sync network, reattach the cables to its
SYNC IN and SYNC OUT ports. To bring the slave AV7000 back into the array cluster, see
section 4.4.

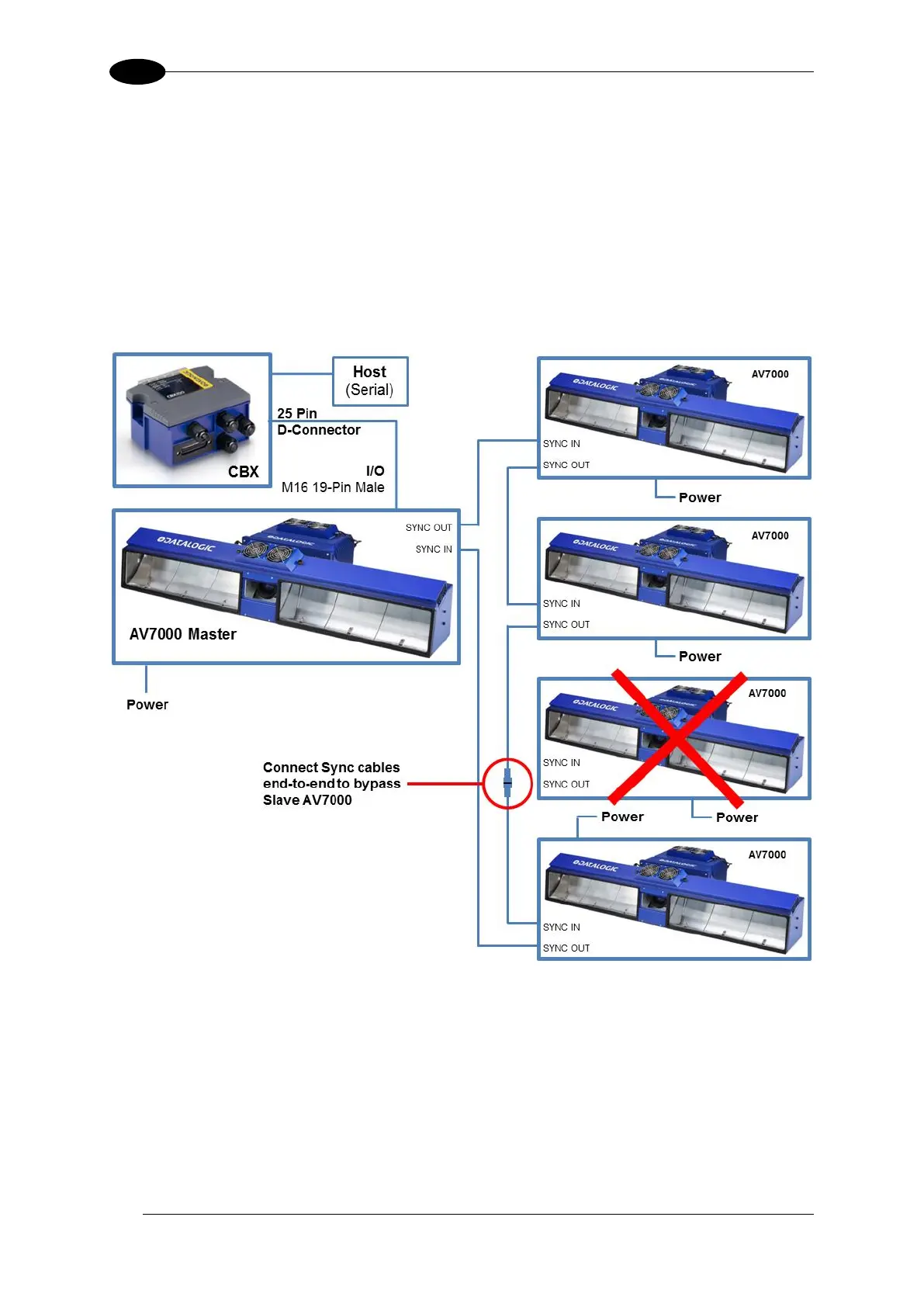

Figure 149: Bypassing a slave AV7000
