5.5 REPLACING AN AV7000 CAMERA
Use the following procedures to replace an AV7000 Camera, either a stand-alone unit, a
Master in a tunnel/array, or a Slave unit in a tunnel/array.
1. Disconnect the power source from the camera.
2. Disconnect all the cables except for the fan cable from the camera.

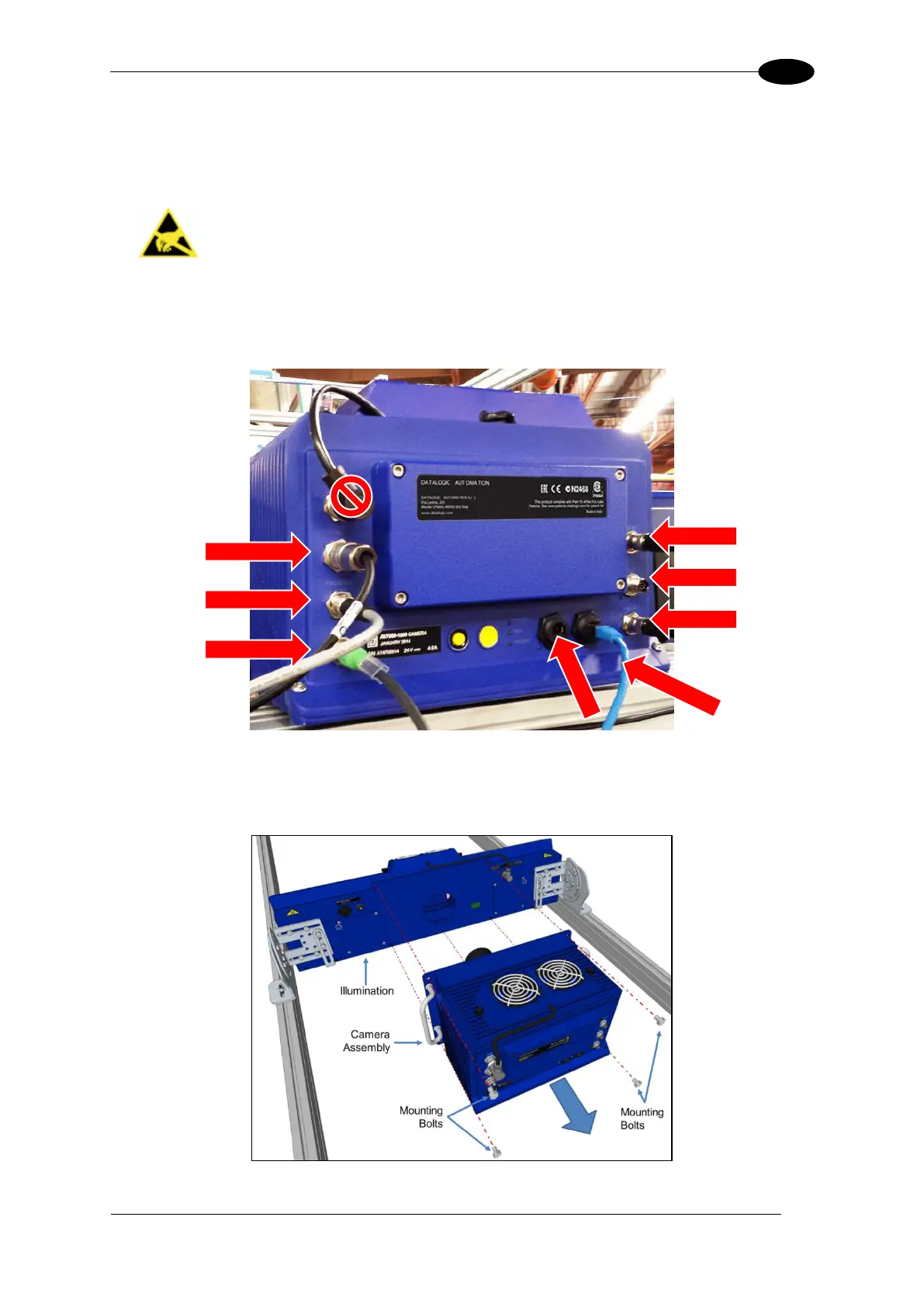

Figure 121: Remove cables
3. Remove the camera from the illumination by unscrewing the four (4) mounting bolts.
Figure 122: Removing the camera
ESD CAUTION: Observe precautions to prevent Electrostatic
Discharge (ESD). Use an ESD grounding wrist strap and avoid direct
contact with circuit boards, which could be damaged by ESD.
