4.5.5 Protocol Index Setup Example
Protocol is used to get a message from third party equipment such as a scale or sorter. The
message can then be attached to the barcode message output from the system.
In the following example, a message from a third party scale needs to be attached to a
barcode relating to a package.
Protocol Index Setup Example:

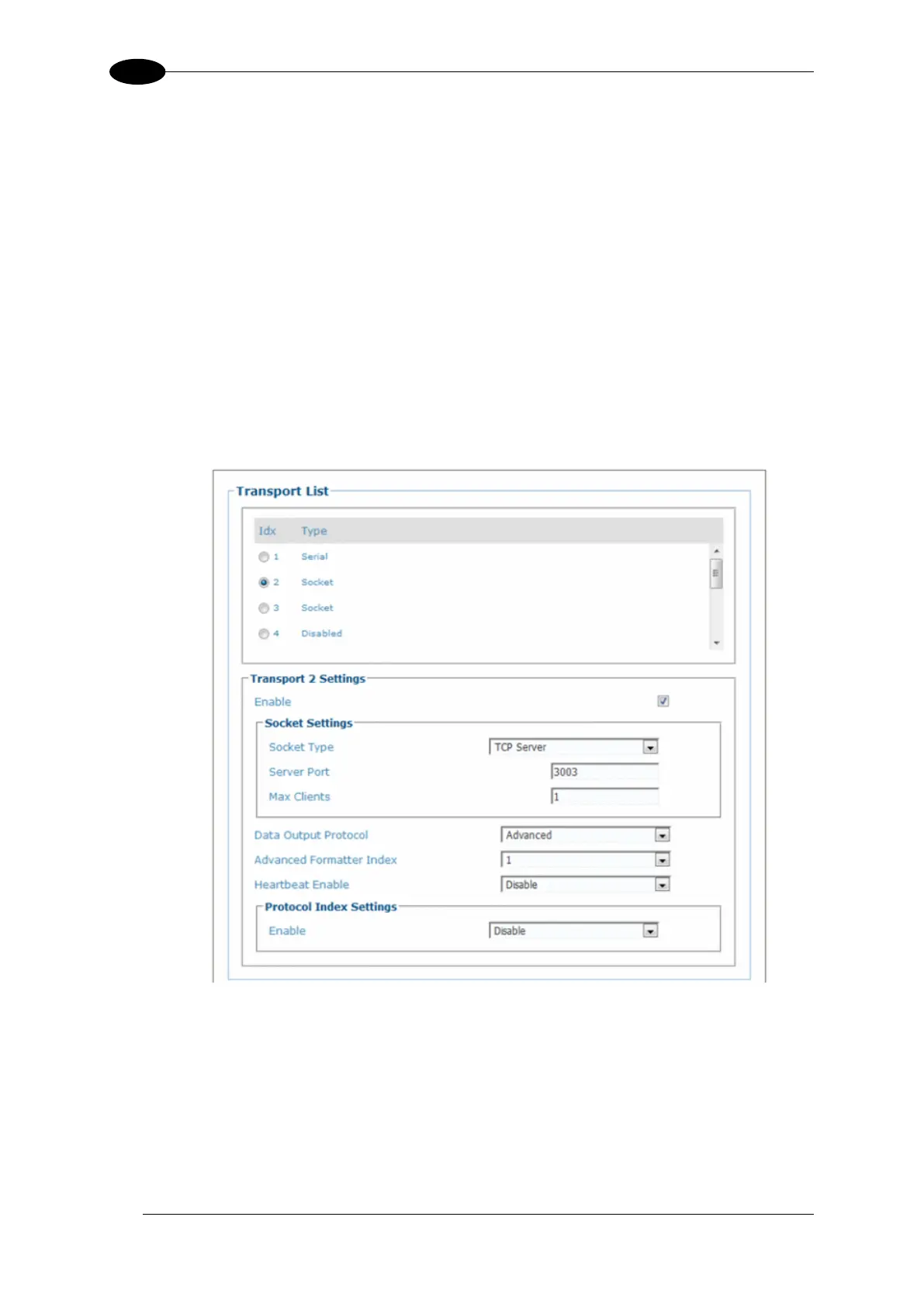

First, configure the transport connections in Global Settings | Communications |
Transports.
1. Navigate to Global Settings | Communications | Transports.
2. Select a transport for the outgoing Host message. In this example, transport number 2 is
selected.
3. Make sure TCP Server is selected from the Socket Type drop-down list.
4. Enter a viable server port number for your system in the Server Port text field.
5. Select Advanced from the Data Output Protocol drop-down lilst.
6. Select 1 from the Advanced Formatter Index.
