Datalogic AV7000 Reference Manual

AV7000 LINEAR CAMERA REFERENCE MANUAL
46
2

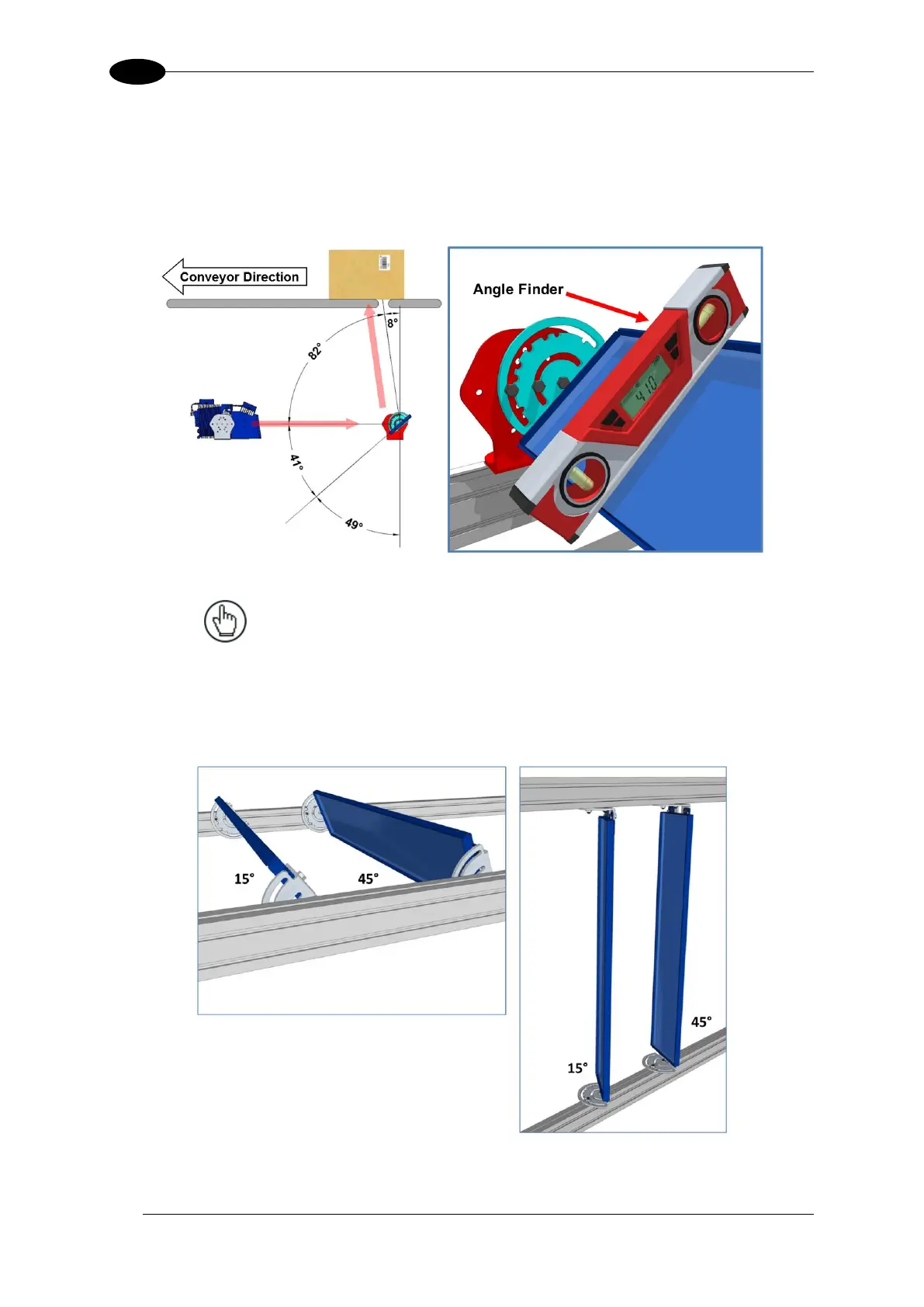

Deflection mirrors for bottom mounted AV7000 Cameras should be mounted to create an 8-
degree view angle (from vertical). However, the angle must be set up manually because
there is no locking hole in the bracket for this angle. Using an electronic angle finder, tilt
the mirror 41-degrees off the horizontal, as shown below. Securely tighten the bracket bolts.
8° View Angle (Bottom Read)
Figure 47: Bottom Mounted Deflection Mirror
NOTE: A bottom read mirror should be mounted upstream
of the gap in the conveyor to minimize debris build up.
2.5.2 Alternative Deflection Mirror Mounting Between Rails
Like the AV7000 Camera, the deflection mirror can also be mounted between the mounting
structure rails, as illustrated below.
Figure 48: Alternative Deflection Mirror Mounting Between Rails
