AV7000 LINEAR CAMERA REFERENCE MANUAL
3.9 WIRING INTO THE CBX CONNECTION BOX
WARNING: DO NOT connect a separate power source to the CBX
connection box. The CBX receives its power through its connection to the
AV7000. Connecting a separate power source will be detrimental to the
system operation.
As shown below, loose-lead cables must pass through the water-tight seals in the base of
the CBX connection box (CBX100 shown). Insert the cables allowing enough slack for the
individual wires to reach the appropriate pin block connectors. Securely tighten the water-
tight seals after the cables have been inserted.
Insulation on individual wires should be removed to expose 13 mm [0.5 in] of bare metal
before inserting into the pin block.

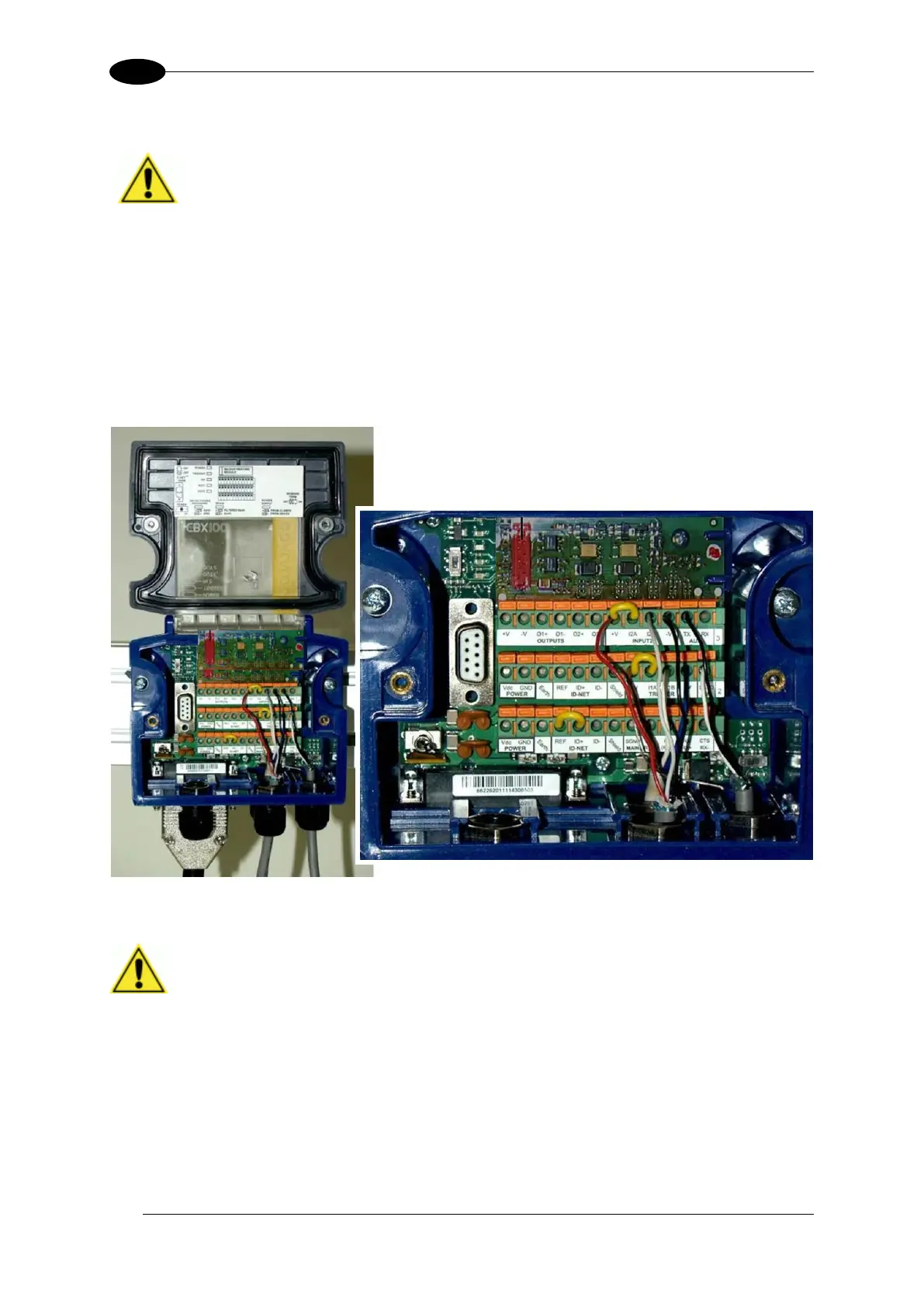

Figure 62: Securing wires with water-tight seals
IMPORTANT: If you are terminating more than one wire in a single
terminal, cut off any tinned ends and twist the wires together before
inserting them into the terminal.
