Datalogic AV7000 Reference Manual

ELECTRICAL INSTALLATION
75
3
3.10.6 Relay Configuration from CBX100/CBX500
The CBX100/CBX500 includes an OUTPUTS block for wiring relays as needed for external
accessories. e-Genius Modify | Relays window includes options for outputs 1 and 2 including
Life Light, Trigger Output, Error Light, Ready Light, Good Dim, and No Dim.
Schematics for Isolated and Non-Isolated relays are provided below.
Outputs 1 and 2
Maximum Voltage 30 V

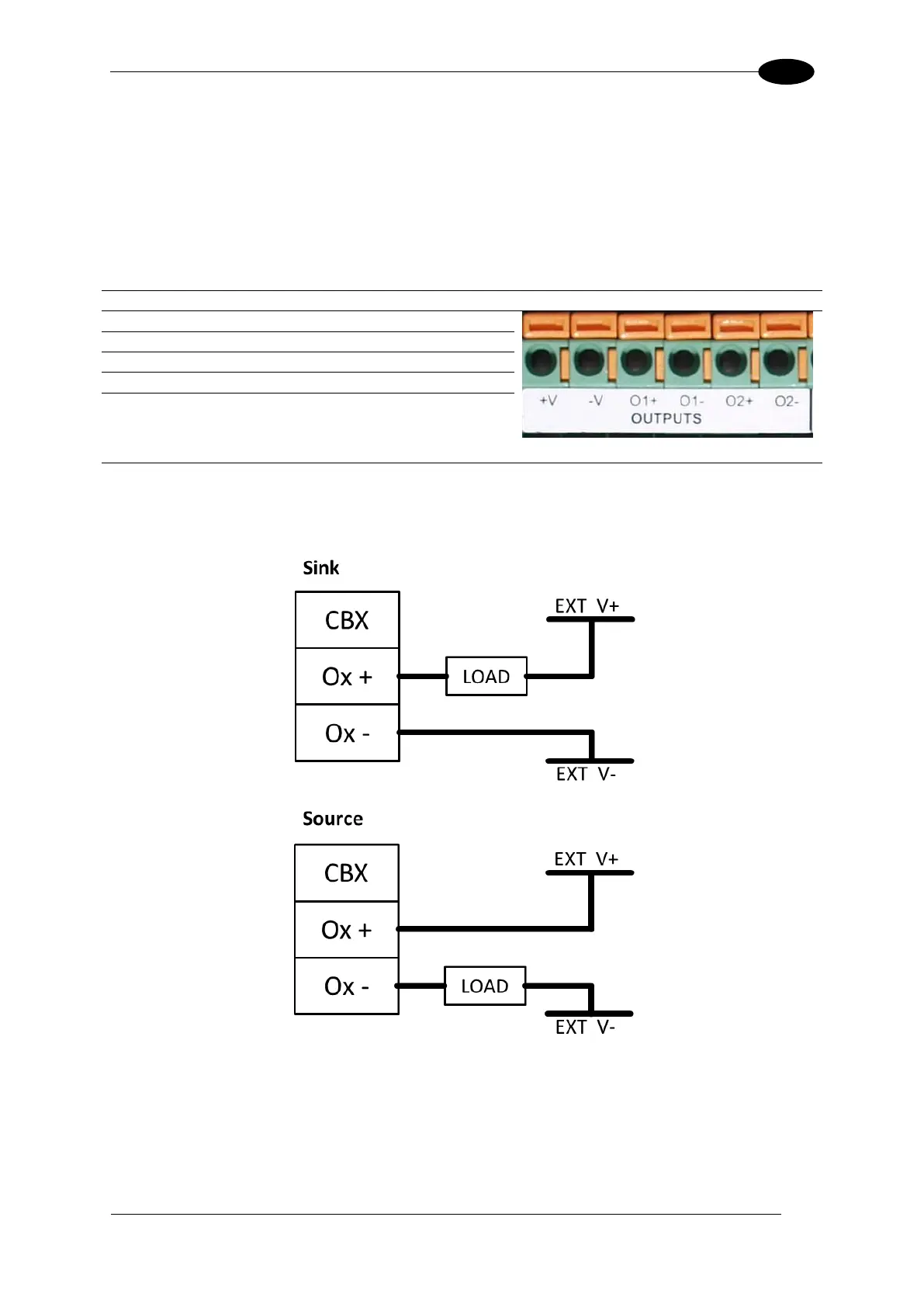

Figure 74: OUTPUTS Block
Collector Current (pulse) 130 mA Max.
Collector Current (continuous) 40 mA Max.
Saturation Voltage (VCE) 1 V at 10 mA Max.
Maximum Power Dissipation 90 mW at 50°C
(Ambient temperature)
Unpowered Outputs
Figure 75: Unpowered Output Connections
