3.10.1 Photoelectric Sensor Connections to CBX100/CBX500/CBX800
A photoelectric sensor can be used as a trigger (phase) for an AV7000 system. The
photoelectric sensor is wired directly into the CBX100/CBX500/CBX800.
If your application uses a trigger other than the one specified by Datalogic, follow the
appropriate wiring diagram to assure proper wiring.
IMPORTANT: You must use shielded interface cables with this
product.
NOTE: To confirm the photoelectric sensor is functioning properly,
watch the TRIG LED while the photoelectric sensor’s beam is
blocked. The Datalogic photoelectric sensor also includes a status
LED.
Photoelectric Sensor (NPN Output)
The following diagram illustrates standard/recommended wiring of the Photoelectric Sensor
in an AV7000 application.

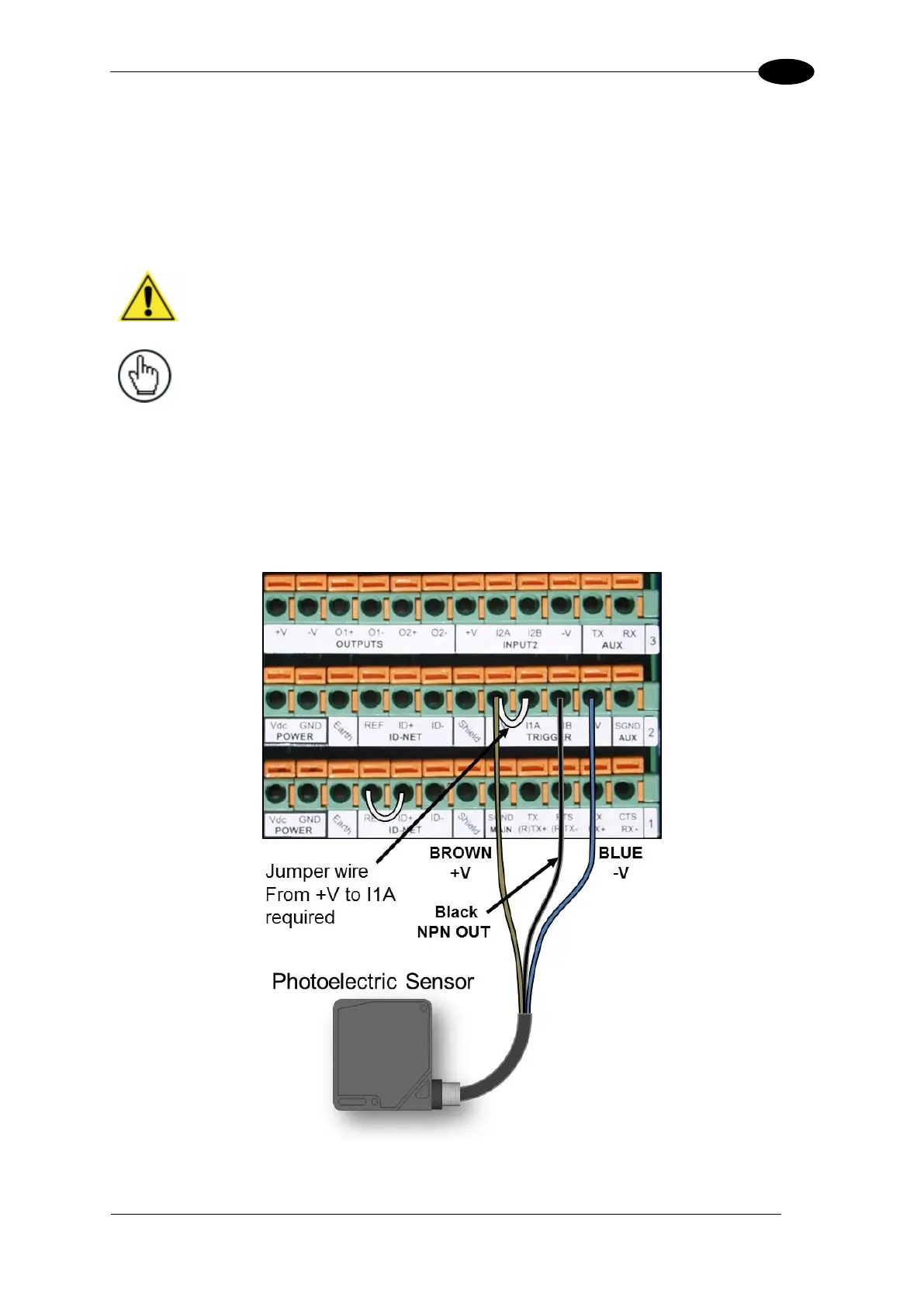

Figure 66: Photoelectric Sensor Wiring (NPN Output)
