3.3.3 Single Head AV7000 with LCC-75xx Light Curtain Kit

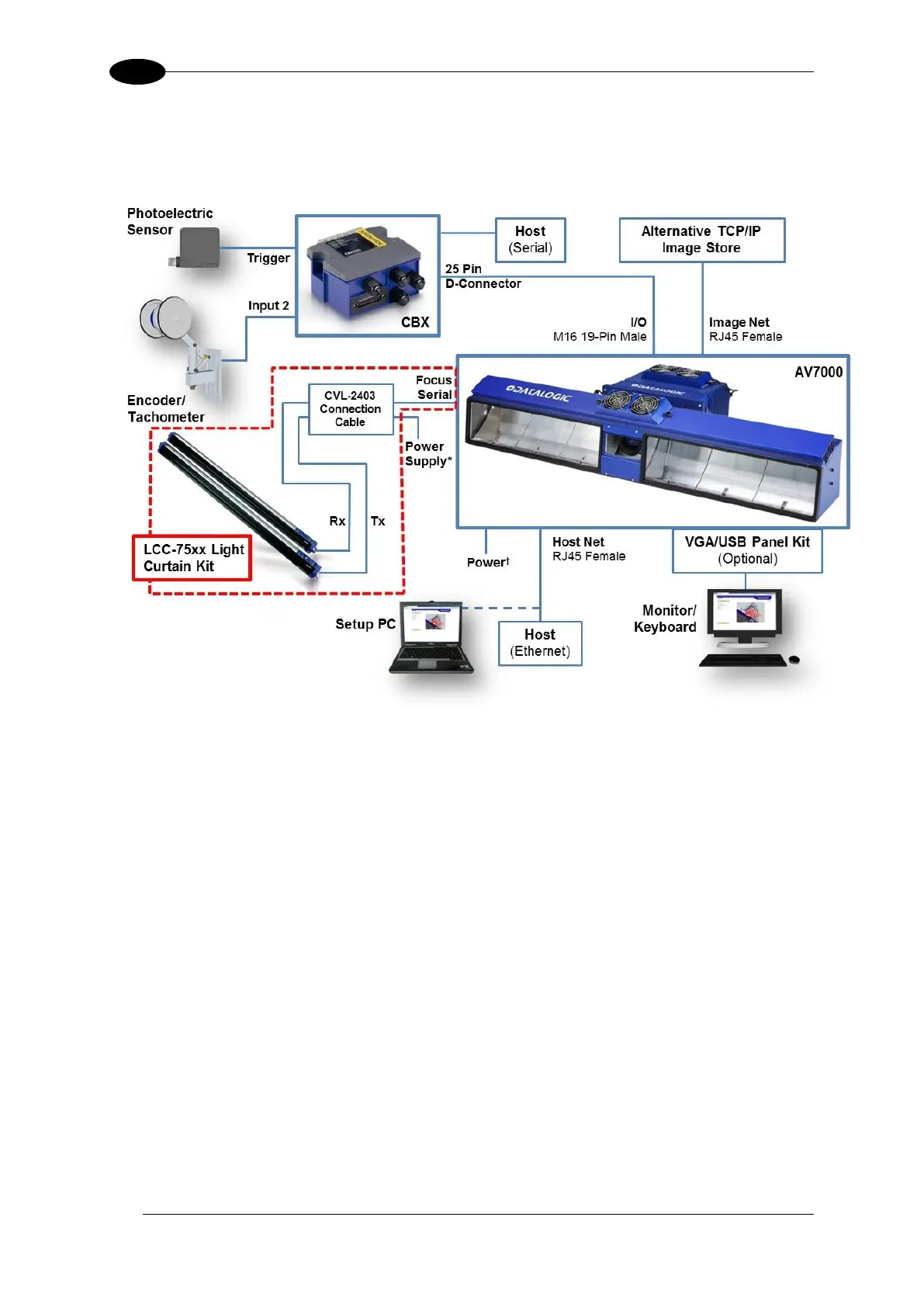

Figure 53: Single AV7000 with LCC-75xx Light Curtain Kit
* See section 5.2.3 for LCC-75xx power supply connections.
†
See section 3.8.1 for AV7000 power supply connections.
