3.11.2 AS1 Area Sensor to CBX510 Connections
The AS1 area sensors can detect and provide trigger for very small or irregularly shaped
objects.
AS1 Area Sensor (PNP Output)

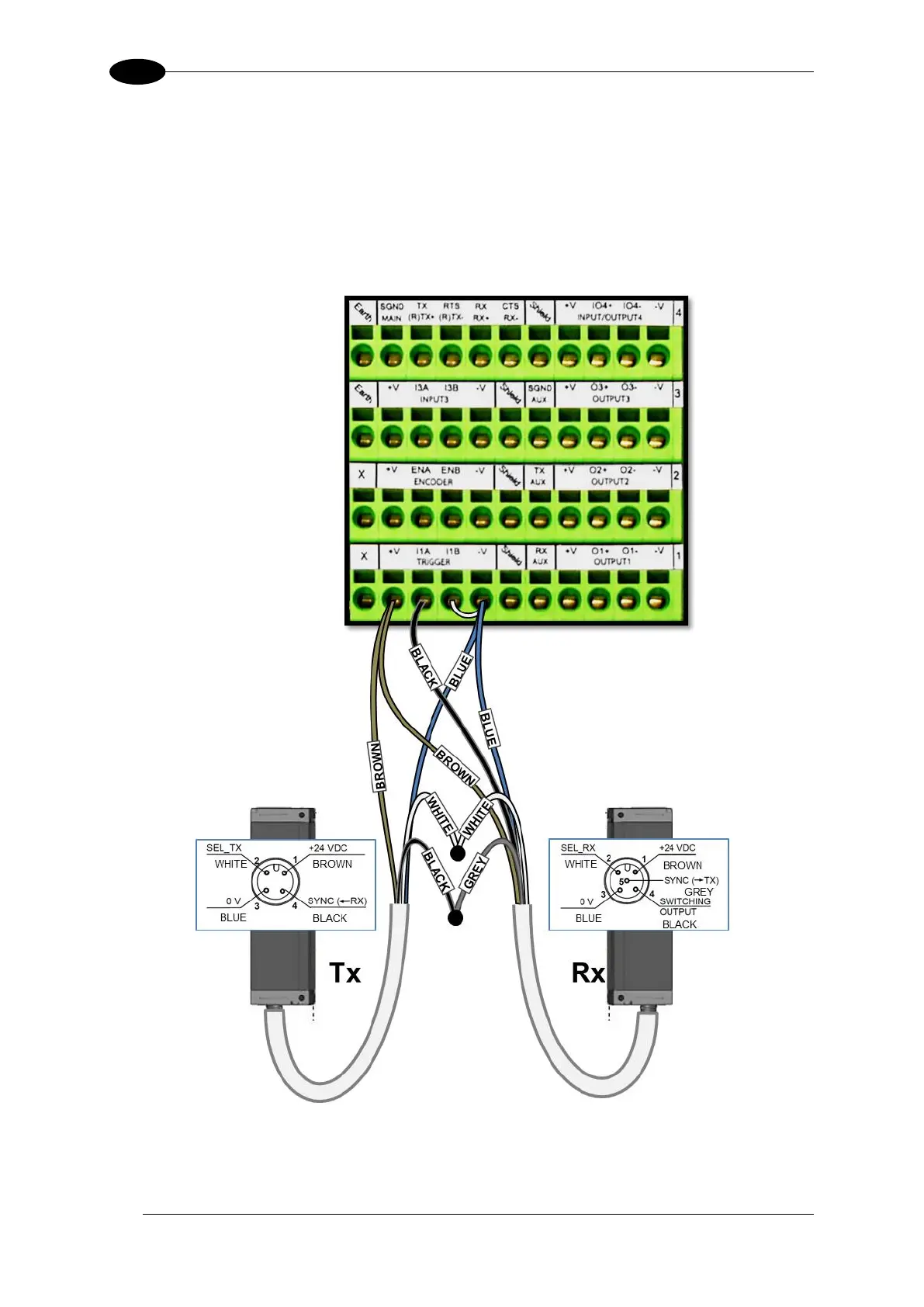

Figure 80: AS1 Area Sensor Wiring (PNP Output)
