AV7000 LINEAR CAMERA REFERENCE MANUAL
12
1
1.11 AREA SENSOR
The photoelectric light grids of the AS1 series are crossed-beam area sensors able to detect
all objects, with even 0.2mm thickness, inside a 100mm height, over operating distances
reaching 3m between emitter and receiver. The AS1 area sensors represent the ideal
solution for the detection of very small objects, even when passing in different positions
inside the controlled height and width. Versions with trimmer adjustment and optic
synchronism between emitter and receiver unit are available. Area sensors also help avoid
multiple triggers on irregular shaped packages. See section 3.10.2 and 3.11.2 for wiring
options.

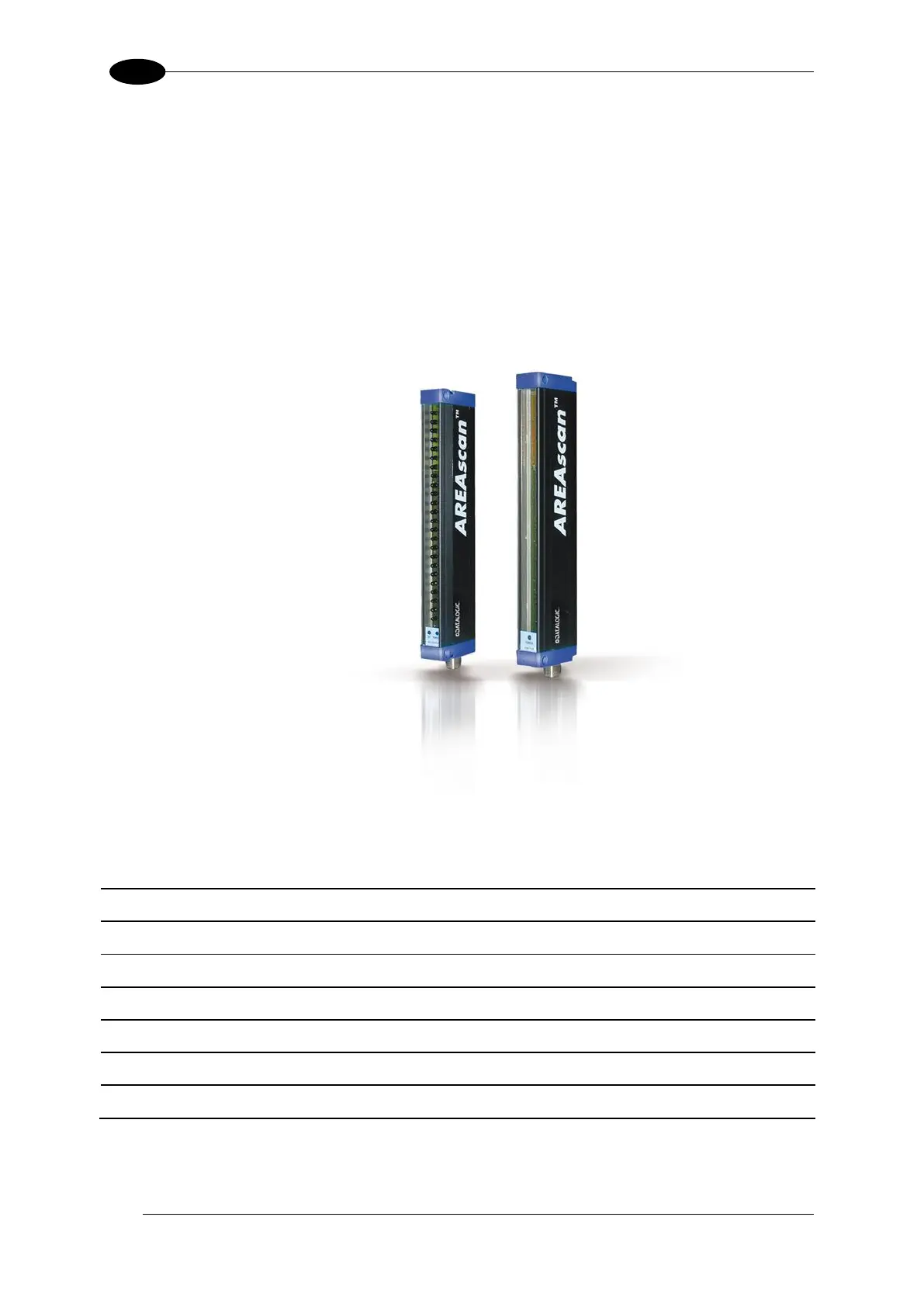

Figure 12: Area Sensors
Area Sensor and Cable (recommended)
AS1-HD-SR-010-J D 3m RES 5mm H 100mm
958101030
CS-A1-03-G-03 M12-5 p 3m (Receiver)
95ACC2110
CS-A1-03-G-05 M12-5 p 5m (Receiver)
95ACC2120
CS-A1-03-G-10 M12-5 p 10m (Receiver)
95ACC2140
CS-A1-02-G-03 M12-4 p 3m (Emitter)
95A251280
CS-A1-02-G-05 M12-4 p 5m (Emitter)
95A251270
CS-A1-02-G-10 M12-4 p 10m (Emitter)
95A251390
