AV7000 LINEAR CAMERA REFERENCE MANUAL
70
3
3.10.3 Encoder/Tachometer Connections to CBX100/CBX500
AV7000 applications over a conveyor belt use an accessory tachometer and mounting kit.
Use the cable provided with the tachometer to connect to the CBX100/CBX500 pin block as
shown below.

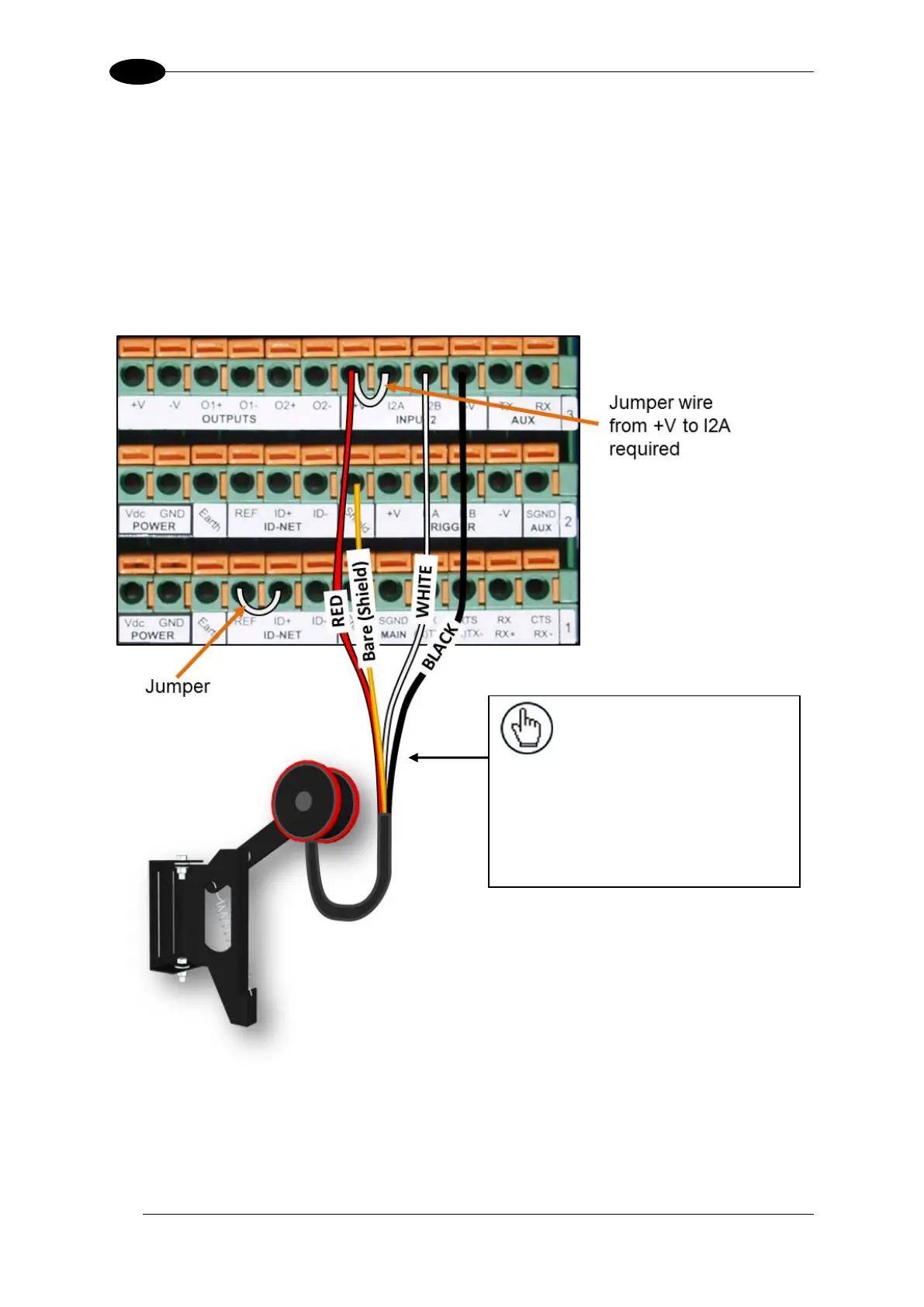

Encoder/Tachometer Wiring for NPN Output
Figure 69: OEK-2 Encoder/Tachometer Wiring (NPN Output)
NOTE: Some Photocraft
tachometers may have a different
color coding:
(+V)
Red or White/Orange
(Signal)
White or White/Blue
(Ground) Black or Orange/White
