MECHANICAL INSTALLA
TION
35
2
2.4.10
Alternative Camera Mounting Between Rail
s
In
some
cases
when
you
need
to
save
space,
the
AV7000
Camera
(and
deflection
mirror)
can be mounted directly between the rails
, without the use of the Rising Bracket.
Figure
34

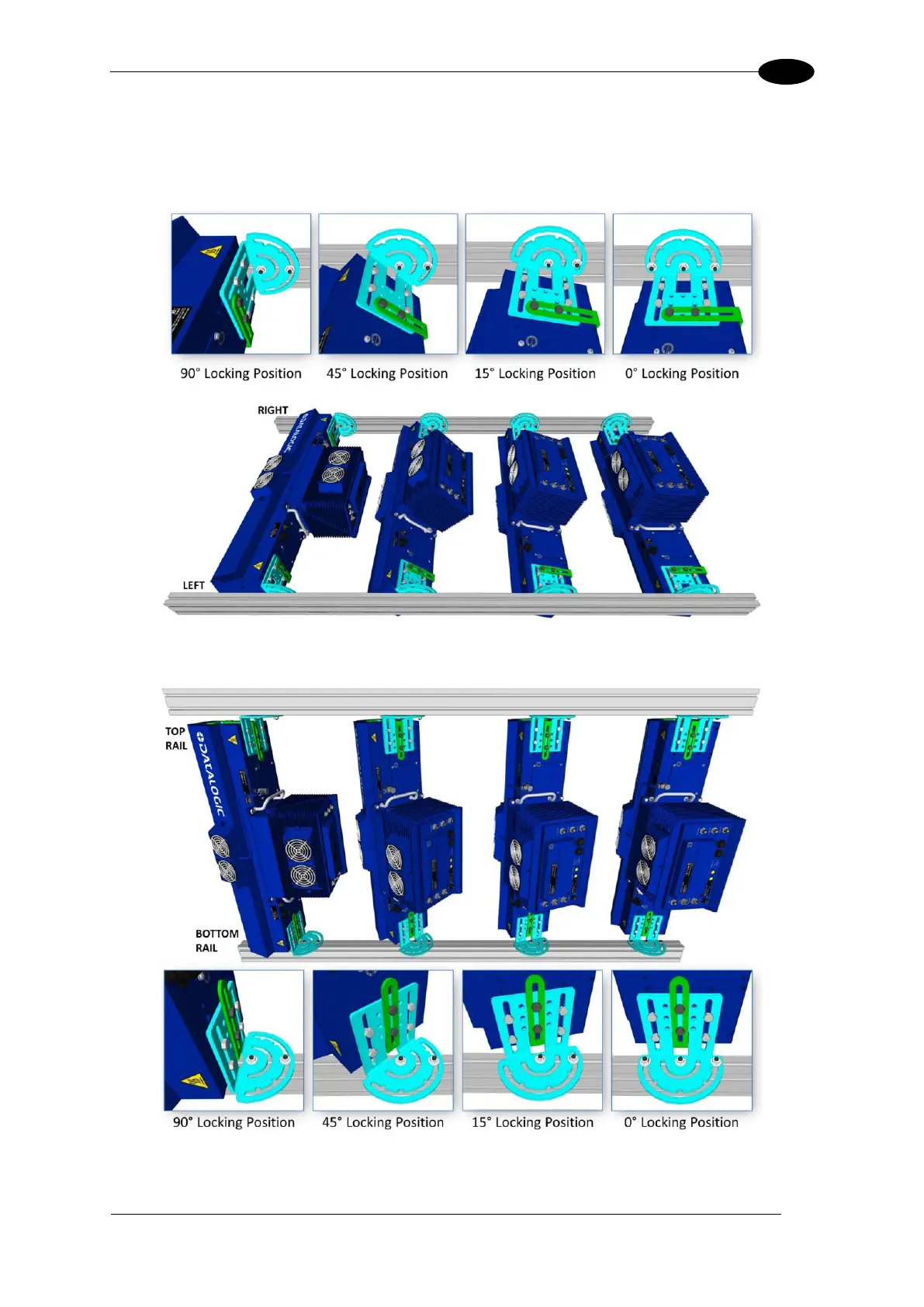

: Alternative Mounting: TOP Camera Between Rails
Figure
35
: Alternative Mounting: SIDE Camera Between Rails
