E-GENIUS
175
4

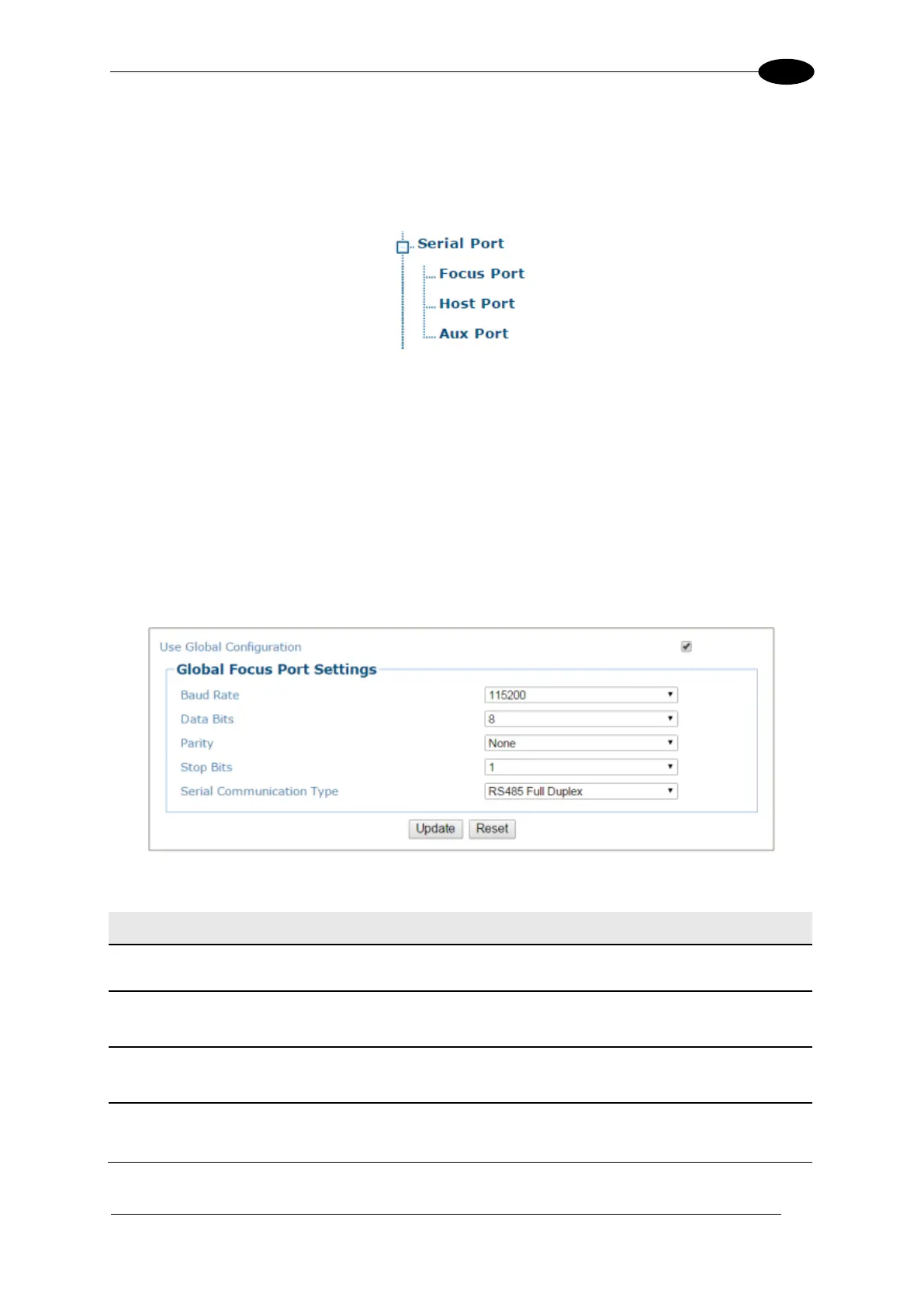

4.6.5 Modify Settings | Device Settings | <Camera Name> | Serial Port
Use the Serial Port menu tree selections to set up communications through the serial Port. If
necessary, you can later make modifications to the device settings using the same menu
selections, including:
Serial Port | Focus Port
Use the Focus Port window to configure communication between the barcode reader and
the focusing device. The focus port is only used to match the focus device’s communication
configuration (light curtain, RangeFinder, DM3610).
To edit the Focus Port settings:
1. In the menu tree under Modify Settings, navigate to Modify Settings | Device Settings |
Camera N | Serial Ports | Focus Port. The Focus Port window opens.
2. Enter the appropriate information in the form as described below:
Field Name
Action/Definition
Use Global
Configuration
Select the check box when using a serial focus device for one or more cameras.
Baud Rate
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the
transmission speed in a communication line.
Data Bits
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the
number of bits composing the data packet of the communication protocol frame.
Parity
Select None, Odd, or Even from the drop-down list. Parity is a parameter indicating
the presence of a control bit in the communication protocol frame.
