AV7000 LINEAR CAMERA REFERENCE MANUAL
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the
number of stop bits in the data packet of the communication protocol frame.
Serial
Communication
Type
Select RS422 Full Duplex or RS232 from the drop-down list.
3. When you have finished making changes, click Update to save or click Reset to revert to
the previously saved values.
Serial Port | Host Port

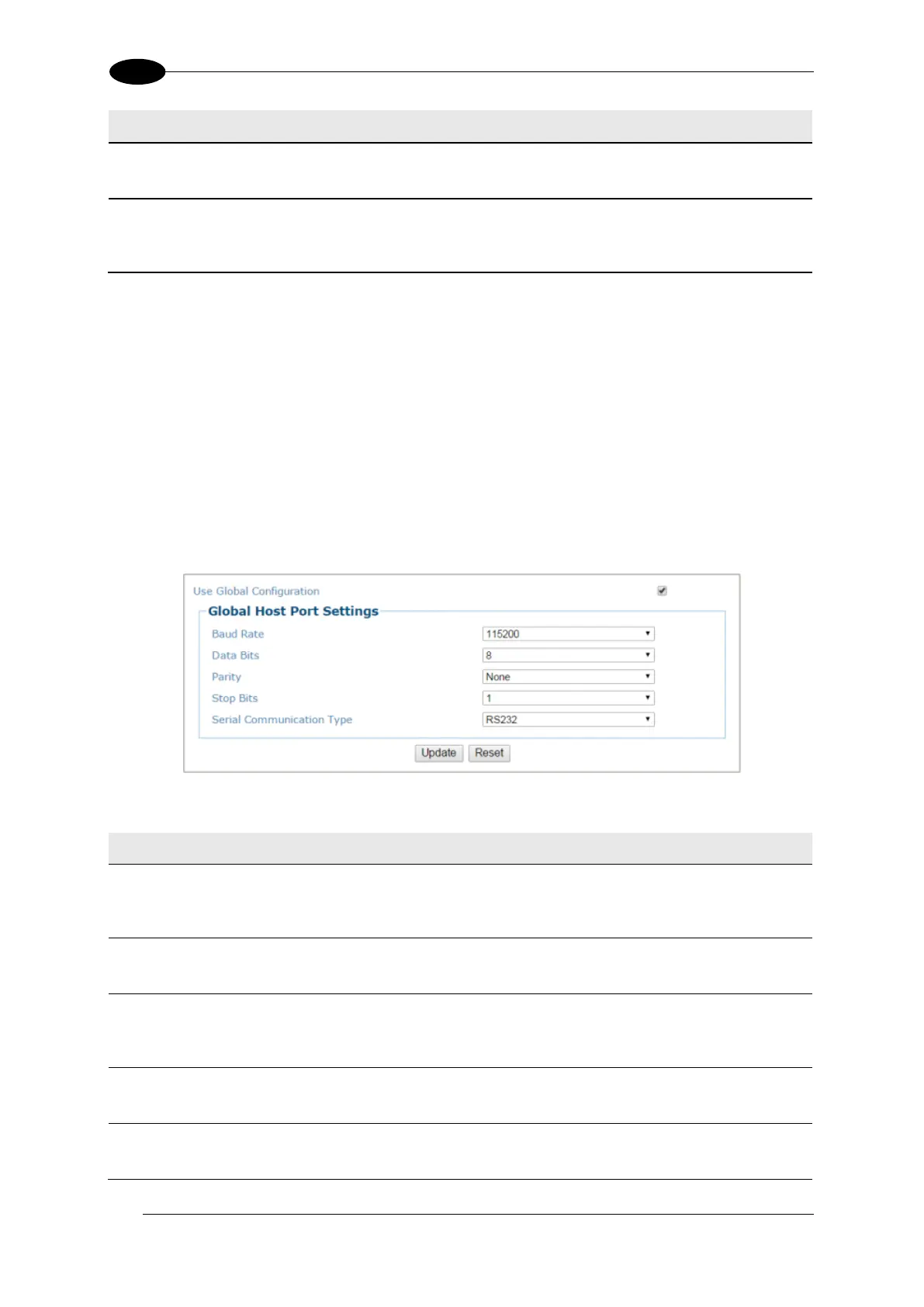

Use the Host Port window to configure communication between the barcode reader and the
Host, or, in a multi-sided layout, between the Master and a Host.
To edit the Host Port settings:
1. In the menu tree under Modify Settings, navigate to Modify Settings | Device Settings |
Camera N | Serial Ports | Host Port. The Host Port window opens.
2. Enter the appropriate information in the form as described below:
Select the check box to use the same "Global" configuration for all of the
cameras in an array/tunnel. If not selected, the settings will be used for the
currently selected camera.
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the
transmission speed in a communication line.
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the
number of bits composing the data packet of the communication protocol
frame.
Select None, Odd, or Even from the drop-down list. Parity is a parameter
indicating the presence of a control bit in the communication protocol frame.
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the
number of stop bits in the data packet of the communication protocol frame.
