E-GENIUS
Serial
Communication
Type
Select RS422 Full Duplex or RS232 from the drop-down list.
3. When you have finished making changes, click Update to save or click Reset to revert to
the previously saved values.
Serial Port | Aux Port

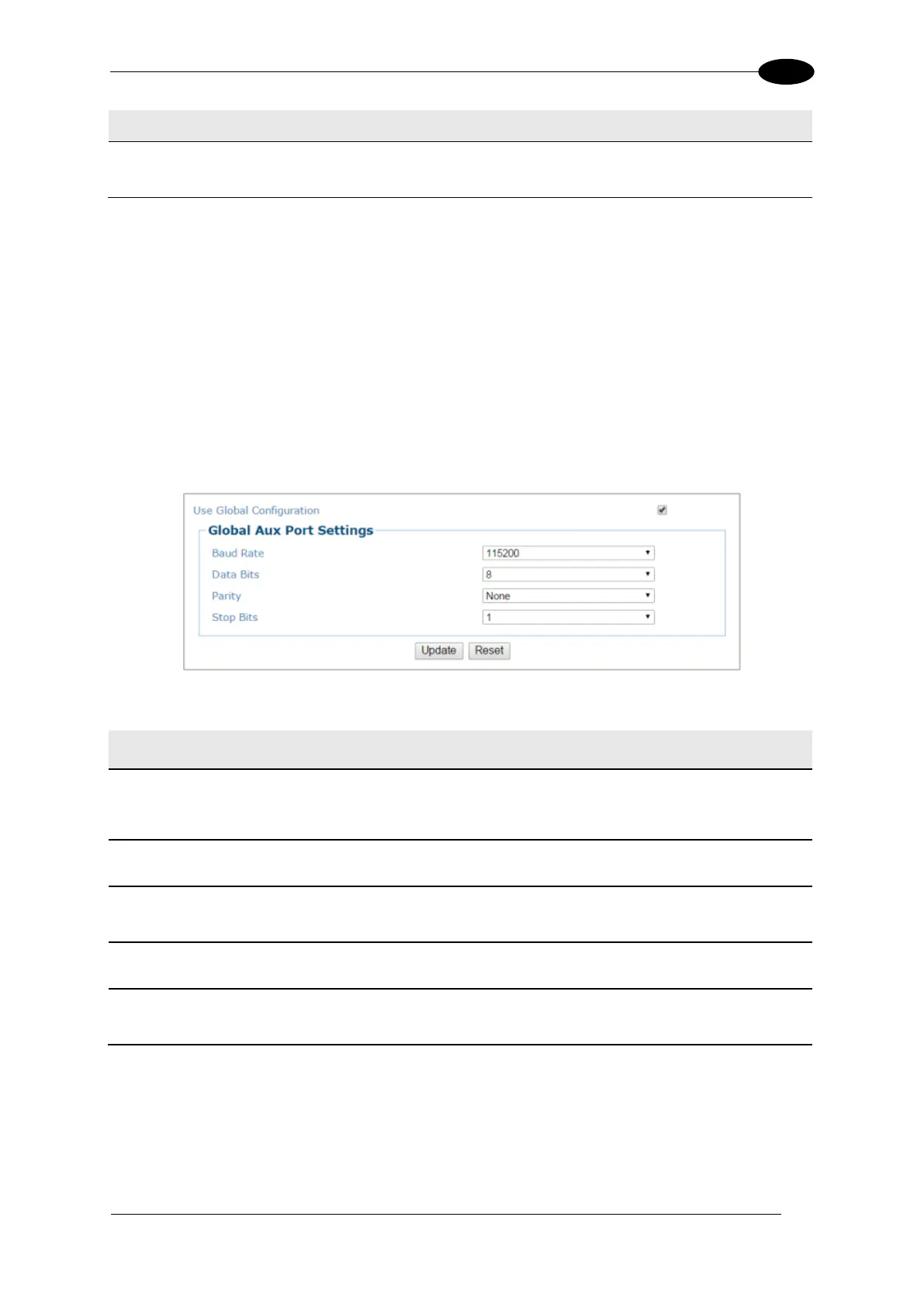

Use the Aux Port window to configure communication between the barcode reader and the
Host, or, in a multi-sided layout, between the Master and a Host.
To edit the Aux Port settings:
1. In the menu tree under Modify Settings, navigate to Modify Settings | Device Settings |
Camera N | Serial Ports | Aux Port. The Aux Port window opens.
2. Enter the appropriate information in the form as described below:
Select the check box to use the same "Global" configuration for all of the cameras in
an array/tunnel. If not selected, the settings will be used for the currently selected
camera.
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the
transmission speed in a communication line.
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the number of
bits composing the data packet of the communication protocol frame.
Select None, Odd, or Even from the drop-down list. Parity is a parameter indicating the
presence of a control bit in the communication protocol frame.
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the number of
stop bits in the data packet of the communication protocol frame.
3. When you have finished making changes, click Update to save or click Reset to revert to
the previously saved values.
