Datalogic AV7000 Reference Manual

ELECTRICAL INSTALLATION
87
3
3.13 INSTALLING THE OPTIONAL VGA / USB INTERFACE PANEL KIT
An optional VGA / USB Interface Panel Kit (93A201204) replacement panel accessory can
be used to attach a monitor, keyboard and mouse to an installed AV7000 camera. In this
way, system status and statistics can be monitored local to a scan point or tunnel, and the
monitor, keyboard and mouse can be used to change parameters without the need of an
external computer.

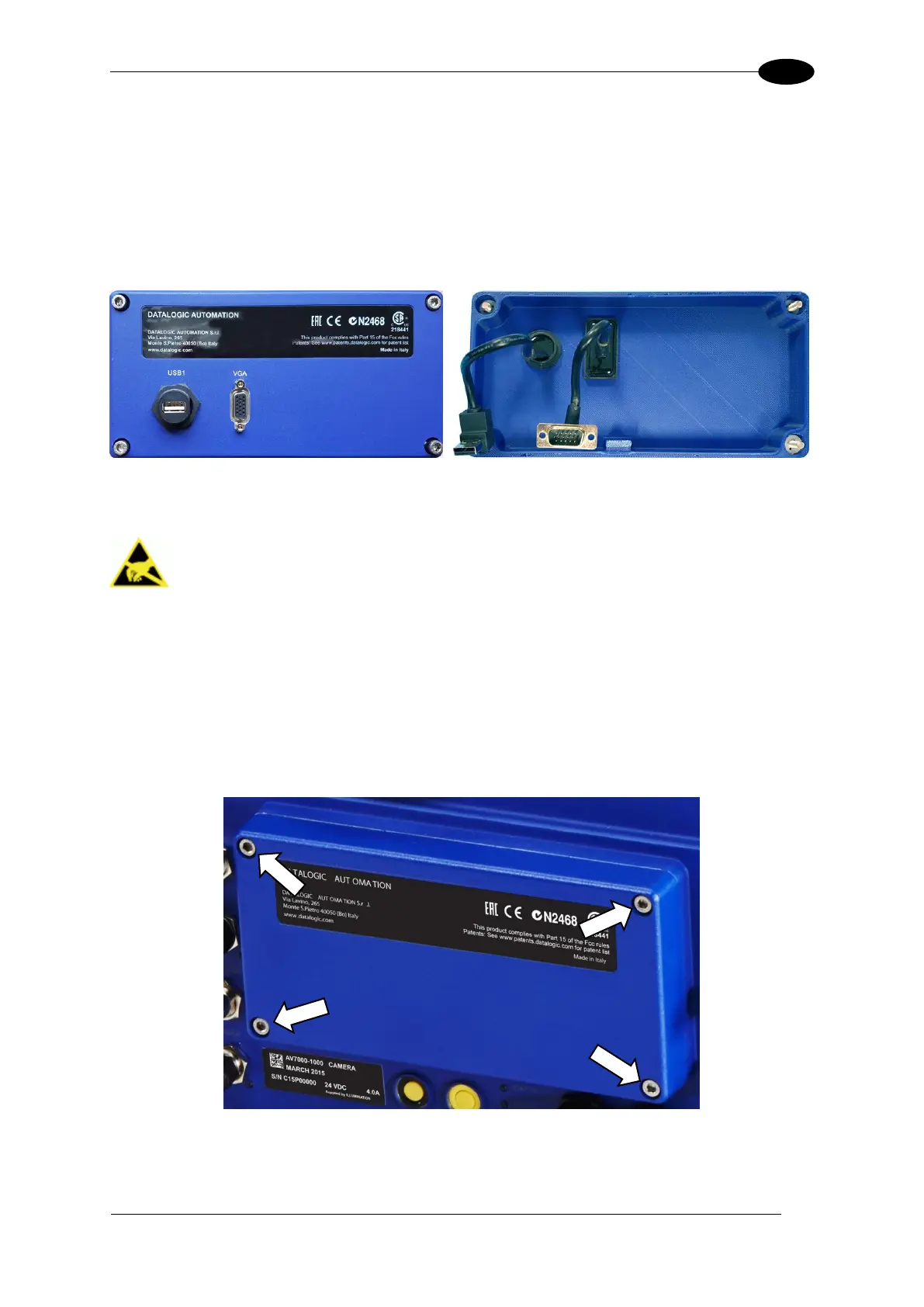

Figure 88: VGA / USB Interface Panel Kit external connectors and internal cables
To install the optional VGA / USB Interface Panel Kit:
1. Disconnect the power source from the AV7000 camera.
2. Remove the camera’s rear access panel by loosening the four screws at its corners.
Figure 89: Rear access panel screw locations
ESD CAUTION: Observe precautions to prevent Electrostatic
Discharge (ESD). Use an ESD grounding wrist strap and avoid direct
contact with circuit boards, which could be damaged by ESD.
