AV7000 LINEAR CAMERA REFERENCE MANUAL
CBX800
Please verify that the CBX800 connection box is configured for the AV7000 application as
follows:

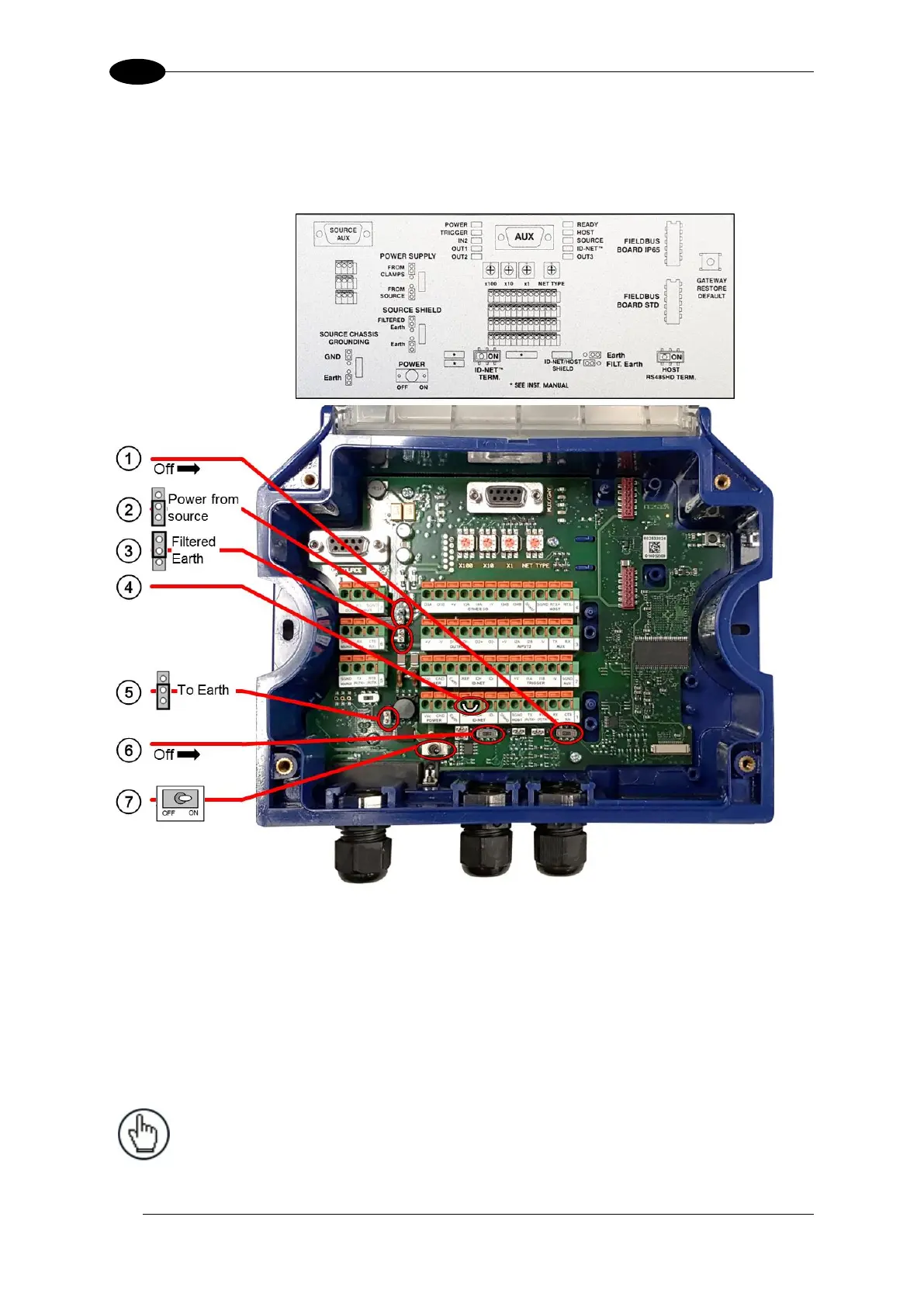

Figure 65: CBX800 Initial Setup
1. Set HOST RS485HD TERM switch to OFF.
2. Set Power Source Selector jumper to FROM SOURCE.
3. Set Shield jumper to FILTERED Earth.
4. Insert jumper wire in pin block from REF to ID+ (one jumper in either block is
sufficient).
5. Set DEVICE CHASSIS GROUNDING to Earth.
6. Set ID-NET TERM switch to OFF.
7. Set POWER switch to ON.
NOTE: Refer to the CBX800 Host Mode Programming Manual for
programming instructions.
