ELECTRICAL INSTALLATION
4. Set ID-NET TERM. switch to OFF.
5. Set Shield jumper to FILTERED Earth.
6. Set DEVICE CHASSIS GROUNDING to Earth.
7. Set POWER switch to ON.
CBX500
Please verify that the CBX500 connection box is configured for the AV7000 application as
follows:

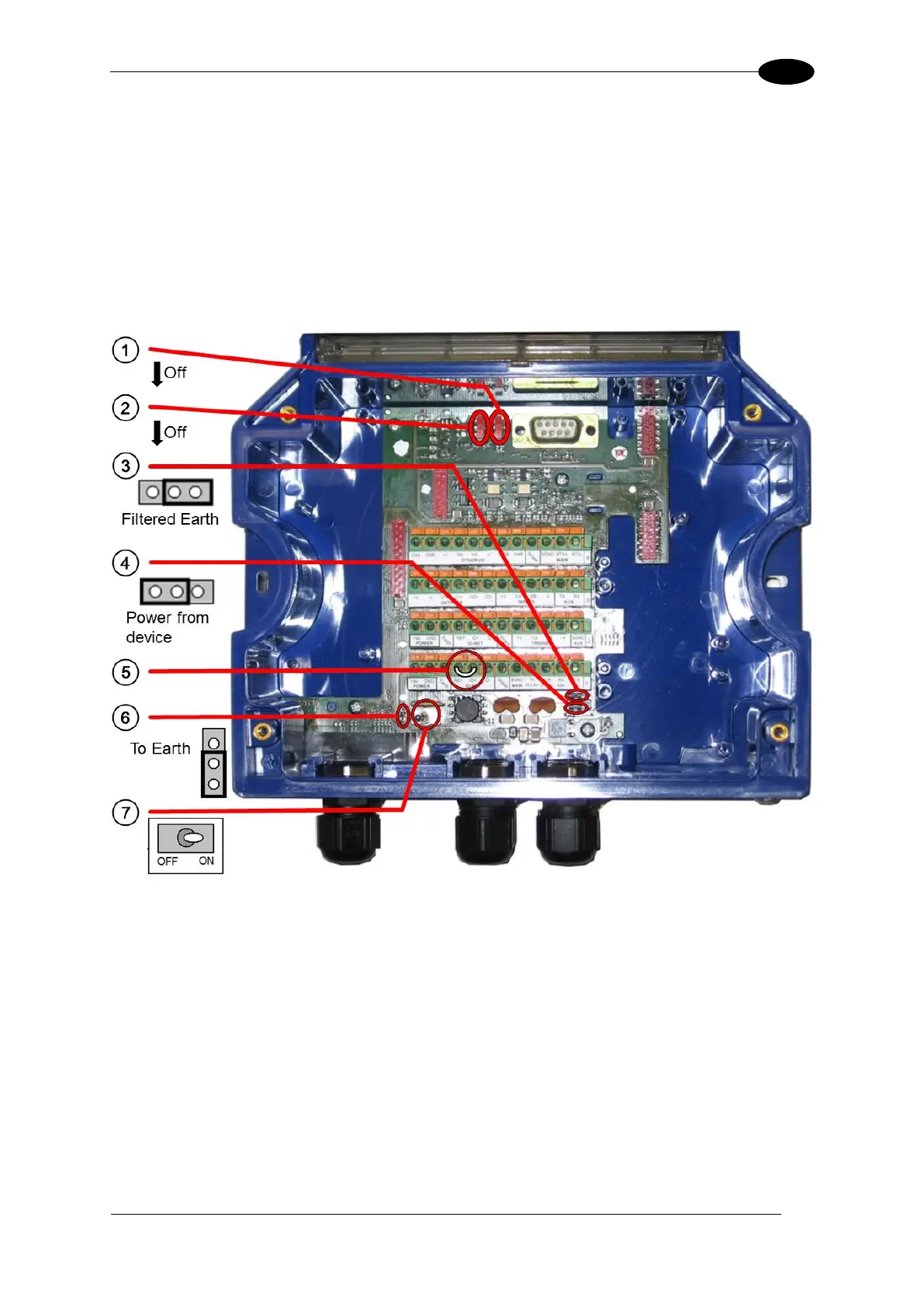

Figure 64: CBX500 Initial Setup
1. Set ID-NET TERM switch to OFF.
2. Set RS422HD TERM switch to OFF.
3. Set Shield jumper to FILTERED Earth.
4. Set Power Source Selector jumper to FROM DEVICE.
5. Insert jumper wire in pin block from REF to ID+ (one jumper in either block is
sufficient).
6. Set DEVICE CHASSIS GROUNDING to Earth.
7. Set POWER switch to ON.
