AV7000 LINEAR CAMERA REFERENCE MANUAL
The default setup IP address for all AV7000 cameras is: 192.168.0.145 (setup/sync
controller), 192.168.3.10 (Host), and 10.0.40.20 (Image).

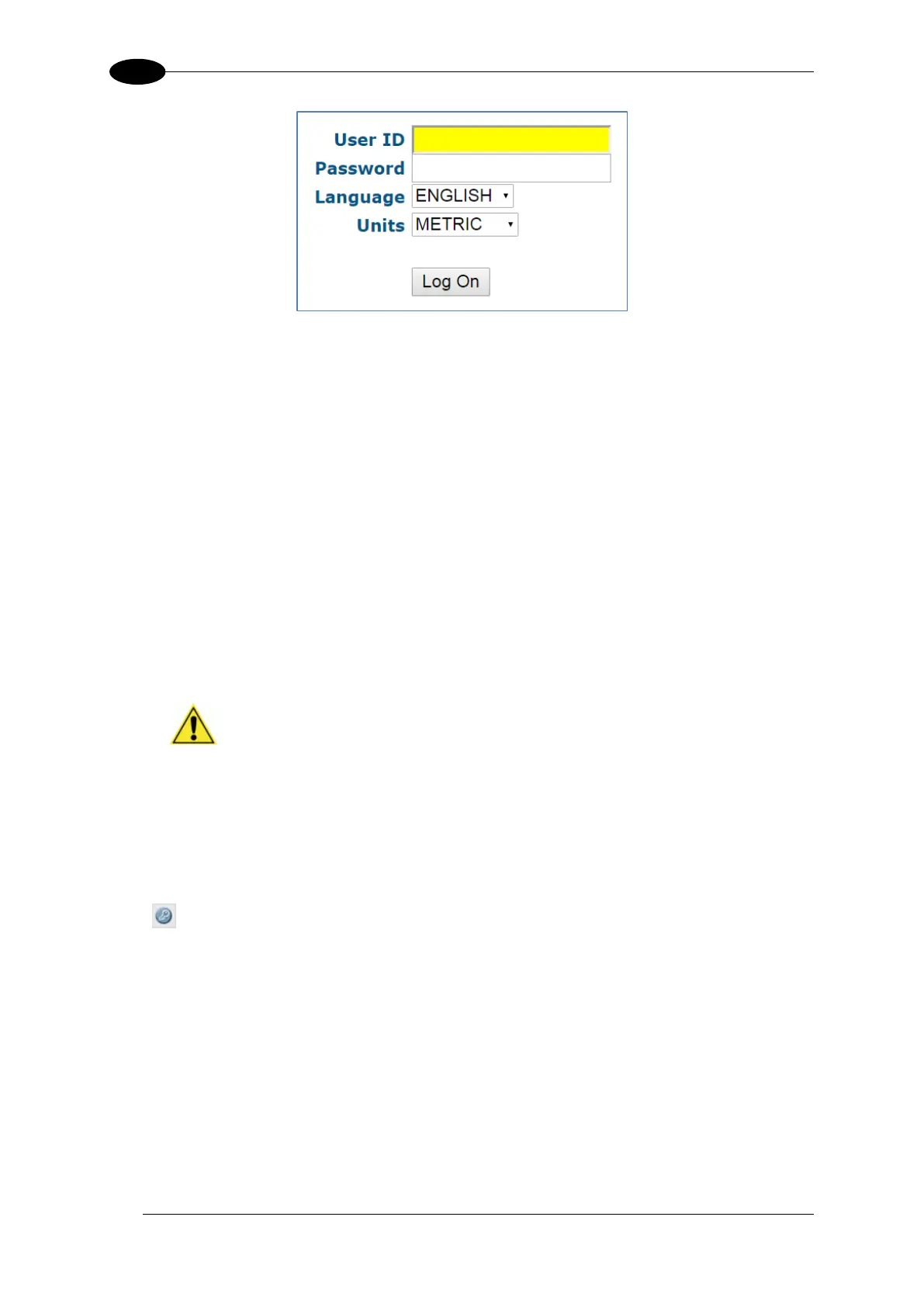

5. Enter the User ID (default is setup) and Password (default is DLAset) for your system in
the fields provided. Your site administrator may have modified these defaults.
6. Select a language from the Language drop-down list.
7. Select METRIC or IMPERIAL from the Units drop-down list.
8. Click Log On.
If the user name and password are valid, the application enables all functions available to
the user and displays the System Info window.
If the password is not valid, the application displays a results box with the message,
“Incorrect Password.” Click OK to return to the Log On window and enter the correct user
name and password. I you don’t know the password, contact your system manager.
IMPORTANT: The user ID and password shown above
provide full setup rights to the user.
If a user only needs to view system information without
saving changes, the User ID: monitor and Password:
DLAmon should be used.
To log out of the e-Genius:
Click at the upper right corner of the e-Genius window to Log Out. When logged out,
the Log On window will appear.
