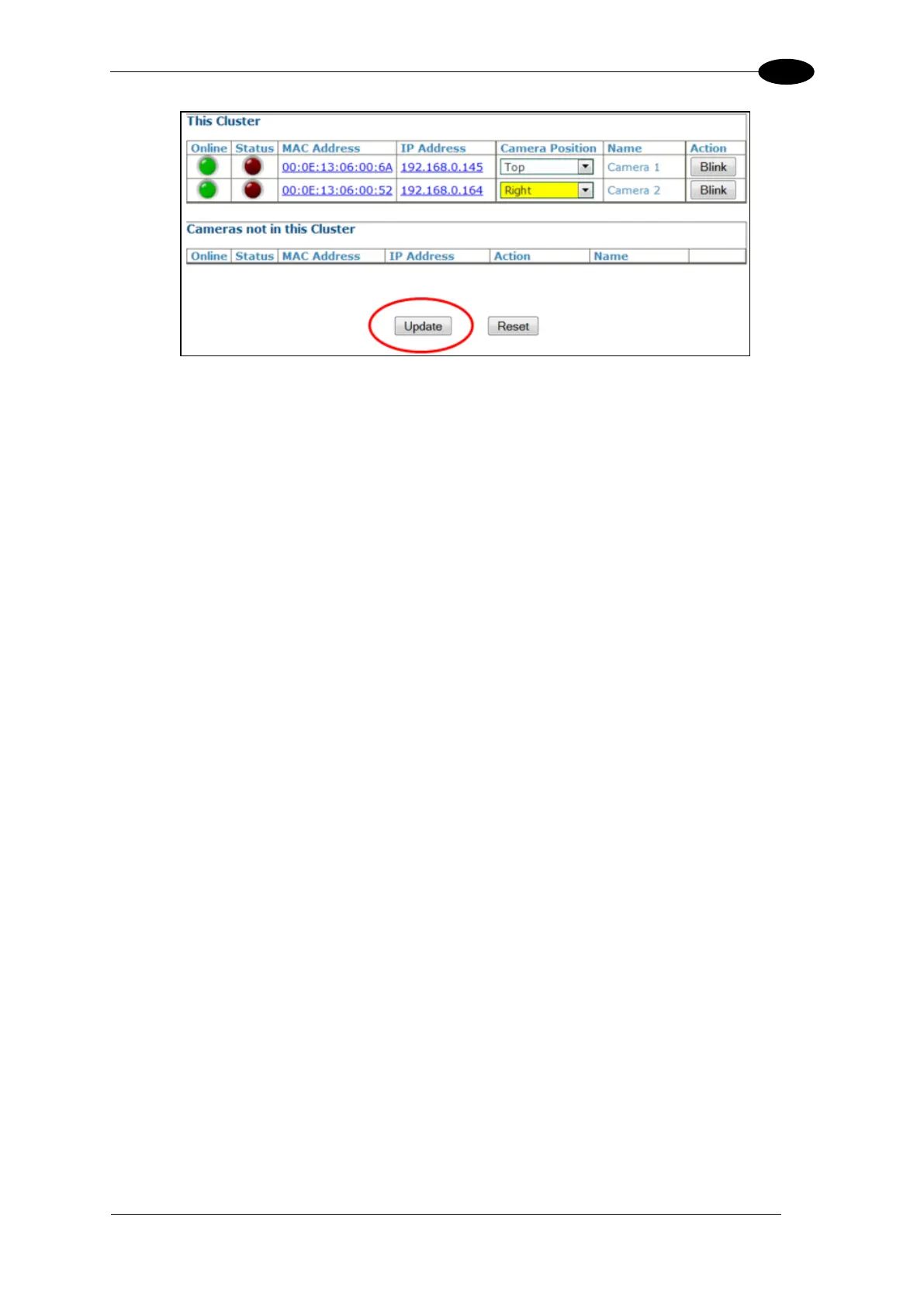

Operating Mode

In the menu tree under Modify Settings, navigate to Global Settings | Operating Mode.

The Operating Mode window opens. See section 4.5.1 for an explanation of the Operating

Mode options.

The following parameters are important to be set to match the application:

1. Encoder Settings

Encoder Step Settings: See section 4.5.1 Modify Settings | Global Settings |

Operating Mode > Encoder Step

Conveyor speed: Enter the conveyor speed (Formula: Max conveyor speed x 1.05). This is

needed so the AV7000 sets the exposure time parameter during calibration

2. Conveyor width: Enter the width of the conveyor (the distance between left and right

focus offsets; See section 0)

3. Trigger Source: Make sure the Trigger Active State is set correctly, To test this, navigate

to Diagnostics | Device Tracking. Run two boxes through the system. Confirm that the

start and end trigger corresponds to the correct Seq Number.

4. Transmit Point Settings

5. Other Important Application Dependent Parameters:

 Modify Settings | Global Settings | Object Detection (See section 4.5.2)

 Modify Settings | Global Settings | Barcode Settings (See section 4.5.3)

 Modify Settings | Global Settings | Communications (See section 4.5.4)

 Modify Settings | Global Settings | Output Format (See section 4.5.6)

 Modify Settings | Global Settings | Image Saving (See section 4.5.7)
