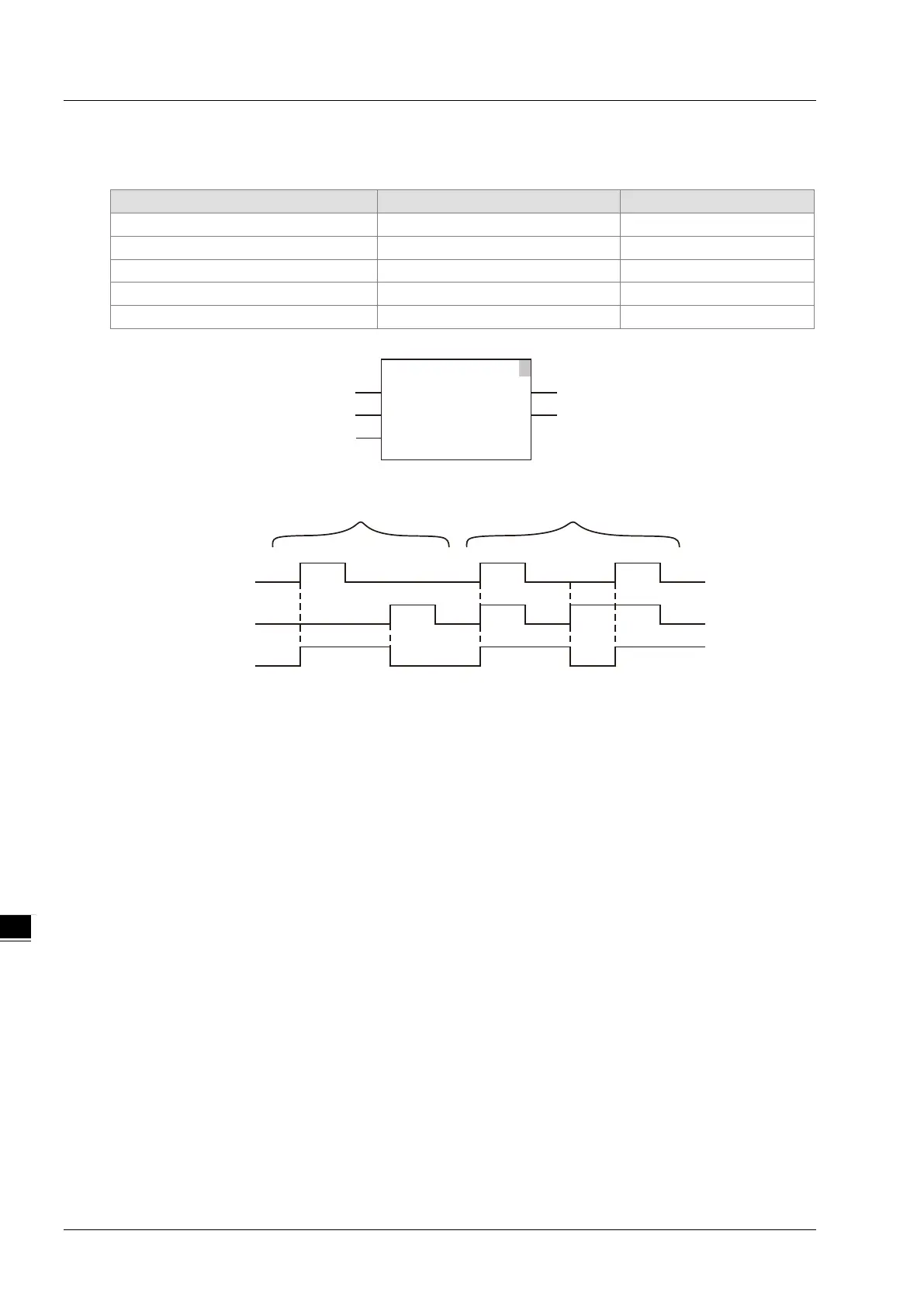

DVP-15MC Series Motion Controller Operation Manual

8-16

 Programming Example

 The variable table and program

Variable name Data type Initial value

SR1

SR1_EN

BOOL

FALSE

SR1_SET

BOOL

FALSE

SR1_Reset

BOOL

FALSE

SR1_Q

BOOL

 Timing Chart:

Case 1： When SR1_SET is TRUE, SR1_Q is TRUE. When SR1_Reset is TRUE, SR1_Q is

FALSE.

Case 2： SR1_SET is given the priority when SR1_SET and SR1_Reset are both TRUE.

EN ENO

SET Q

Reset

SR1_EN

SR1_SET

SR1_Reset

SR1_Q

SR1_SET

SR1_Reset

SR1_Q

Case 1

Case 2
