 If the value of InPos exceeds the range of the data type of In, the movement is not performed.
 If the value of InOutPos exceeds the range of the data type of InOut, the movement is not
performed.
 If the value of Size exceeds the range, the movement is not performed.
 Programming Example
 The variable table and program
Variable name
Data type
Current value
TrsBit_EN BOOL TRUE
TrsBit_In USINT 63
TrsBit_InPos
UINT
1
TrsBit_InOutPos
UINT
2
TrsBit_Size
UINT
2
TrsBit_Inout
USINT
12

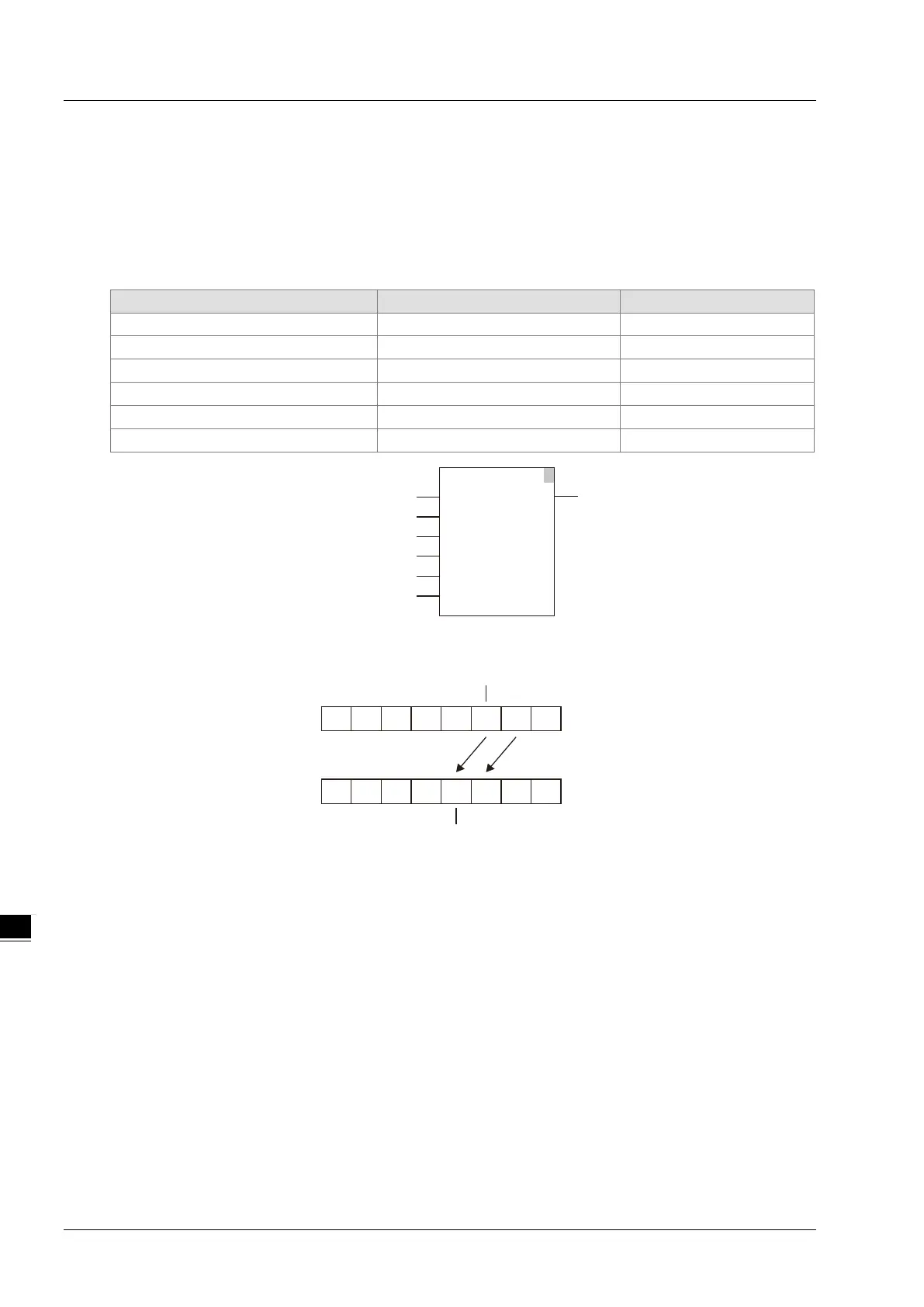

 Move Figure
bit0bit7
TrsBit_In
0 10 0 0 00TrsBit_InOut
1111 1
bit0bit7
TrsBit_InPos=UINT#1
TrsBit_InOutPos=UINT#2
111
1
TrsBit_Size=UINT#2
1
TransBit
EN ENO
In
InPos
InOutPos
Size
InOut
TrsBit_EN
TrsBit_In
TrsBit_InOutPos
TrsBit_InPos
TrsBit_Size
TrsBit_InOut
