Chapter 11 Motion Control Instructions
11-137
Parameter name Function Data type Valid range
Error
TRUE when there is an error in the execution of the
instruction.
BOOL TRUE/FALSE
ErrorID
Contains the error code when an error occurs. Please
refer to section 12.2.
WORD -
Output Update Timing
Name Timing for changing to TRUE Timing for changing to FALSE
Done When the jogging stops.
One period later after the jogging
stops.
Busy
When JogForward or
JogBackward changes to TRUE.
When Done changes to TRUE,
When Error changes to TRUE,
When CommandAborted changes
CommandAborted
TRUE when the instruction is
aborted by other motion
JogForward
JogBackward changes from
Error
When an error occurs in the
instruction execution or the input
parameters for the instruction are
When JogForward or
JogBackward changes from
TRUE to FALSE.

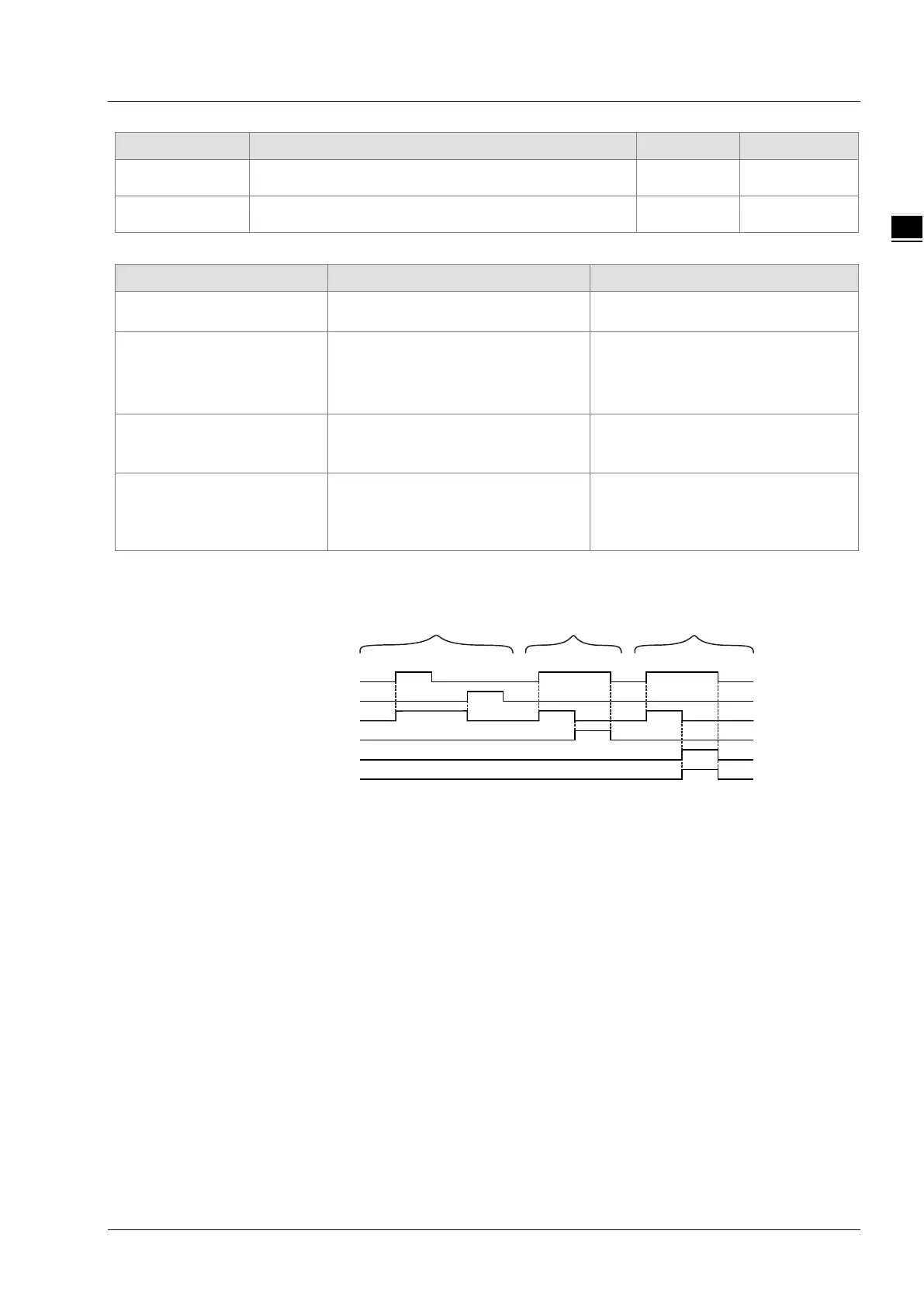

Output Update Timing Chart
JogFward or
JogBackward
Done
Busy
CommandAborted
Error
Error ID
Case1 Case2 Case3
Case 1： When JogForward or JogBackward changes from FALSE to TRUE, Busy changes to TRUE.
When the jogging stops, the velocity of the axis is decreased to 0, Done changes to TRUE and
Busy changes to FALSE.
Case 2： When JogForward or JogBackward changes from FALSE to TRUE, CommandAborted changes
to TRUE and meanwhile, Busy changes to FALSE after the instruction is aborted by other motion
instruction. CommandAborted changes to FALSE when JogForward or JogBackward changes
from TRUE to FALSE.
Case 3： After JogForward or JogBackward changes from FALSE to TRUE, Error will change to TRUE
and ErrorID will show corresponding error codes if any error occurs such as axis alarm or Offline.
Meanwhile, Busy will change to FALSE. Error will change to FALSE and the value of ErrorID will
be cleared to 0 when JogForward or JogBackward changes from TRUE to FALSE.
Function
DMC_Jog jogs an axis. The JogForward parameter controls the axis to run forward and the
JogBackward parameter controls the axis to run backward. When the jogging stops, Done changes to
TRUE and one cycle later, it changes to FALSE. Meawhile, Busy changes to FALSE.
