DVP-15MC Series Motion Controller Operation Manual
11-270
11
1
 Example 1
 Specify the center of a circle and conduct a circular interpolation in absolute mode
 Current position (1000, 3000), axis parameters: default values, the G codes to be executed:
N00 G90
N01 G17
N02 G2 X4000 Y2000 I1000 J-2000 E5000 F5000

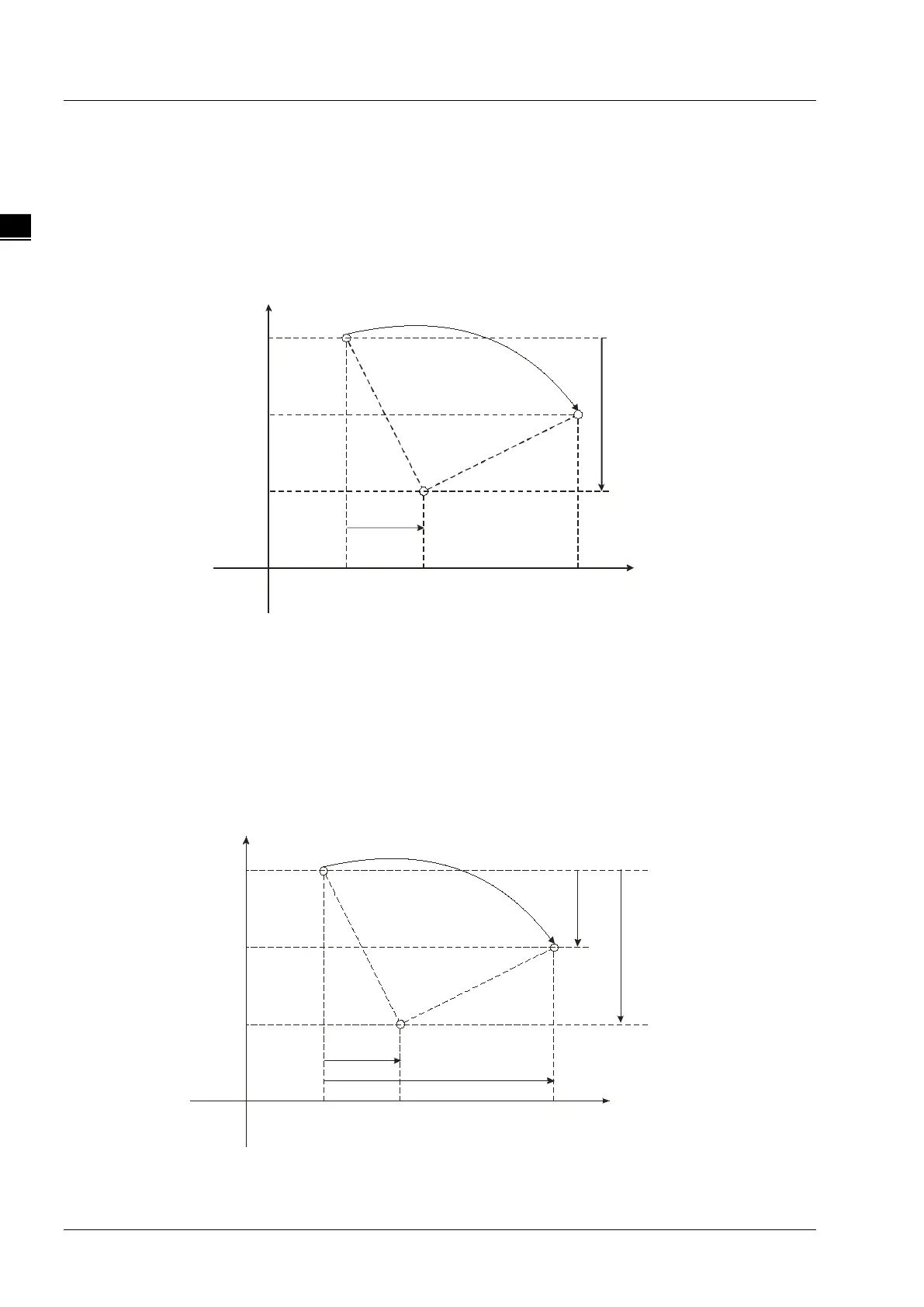

 After G codes are executed, the Y/X curve for the whole movement process is shown below:
1000
X
Y
1000
2000
3000
2000
4000
I=1000
J=-2000
(0,0)
 Example 2:
 Specify the center of a circle and conduct a circular interpolation in relative mode
 Current position (1000, 3000), axis parameters: default values, the G codes to be executed:
N00 G91
N01 G17
N02 G2 X3000 Y-1000 I1000 J-2000
 After G codes are executed, the Y/X curve for the whole movement process is shown below:
1000
(0,0)
X
Y
1000
2000
3000
2000
4000
I=1000
J= -2000
3000
-1000
Start
End point
Center
End
Cente
Start point
