DVP-15MC Series Motion Controller Operation Manual
12-6
12
1

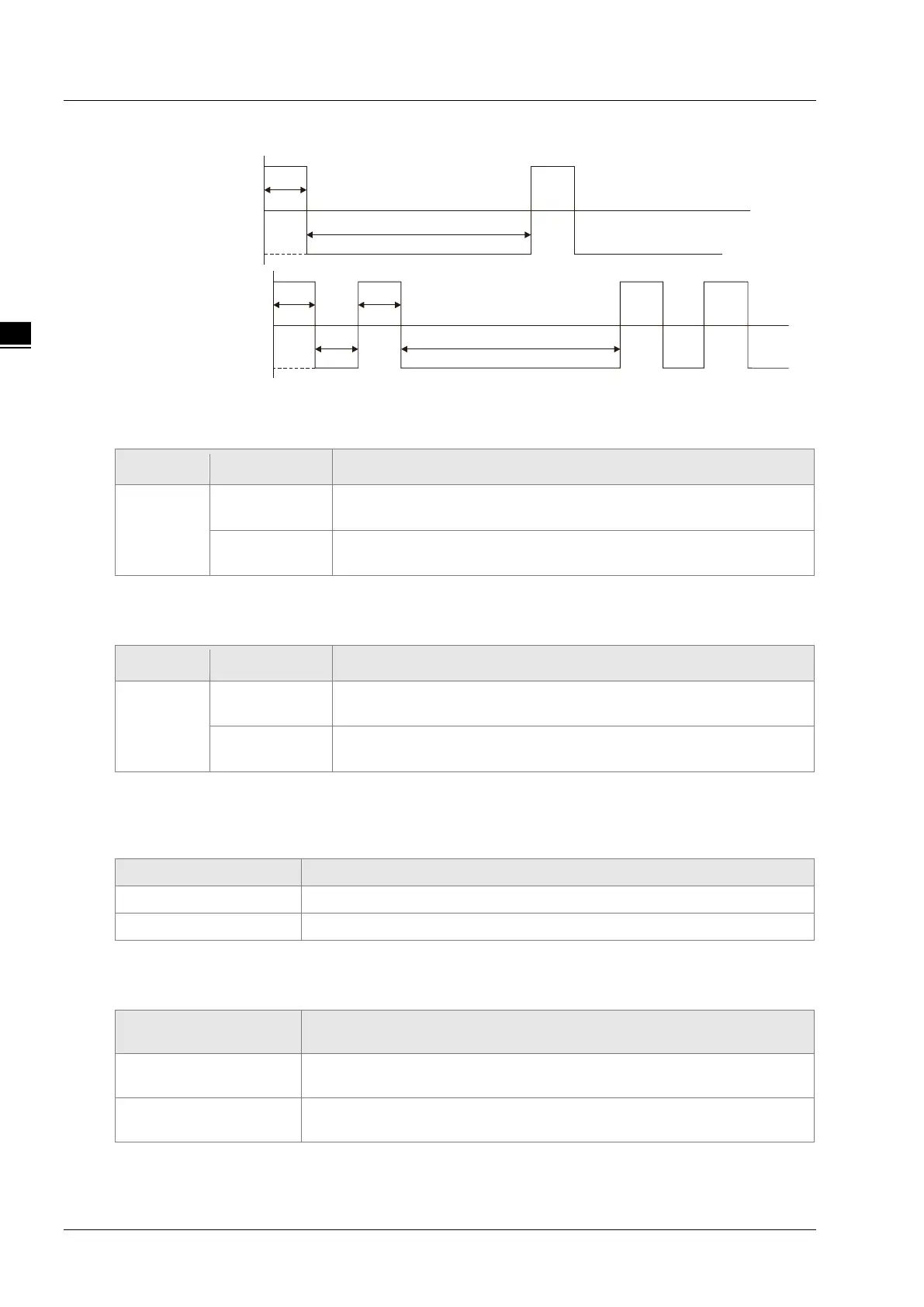

 ERR LED: Red light is in a single flash and double flashes as below.
 LAN1 LED
LAN1 LED indicates the network state of the first Ethernet communication port of the left side of
DVP-15MC series motion controller.
LED State Indication
Yellow
light
Blinking
Data are being sent or received via the first Ethernet port of DVP-
15MC series motion controller.
OFF
The first Ethernet port of DVP-15MC series motion controller is
not connected to the Ethernet network.
 LAN2 LED
LAN2 LED indicates the network state of the second Ethernet communication port of the left side of
DVP-15MC series motion controller.
LED State Indication
Yellow
light
ON
Data are being sent or received via the second Ethernet port of
DVP-15MC series motion controller.
OFF
The second Ethernet port of DVP-15MC series motion controller
is not connected to the Ethernet network.
 RS232 LED
RS232 LED, the RS-232 communication indicator of DVP-15MC series motion controller indicates
the communication state of RS-232 port of DVP-15MC series motion controller.
LED state Indication
Yellow light blinking There are response data via RS-232 port.
LED OFF There are no response data via RS-232 port.
 RS485 LED
RS485 LED, the RS-485 communication indicator of DVP-15MC series motion controller indicates
the communication state of RS-485 port of DVP-15MC series motion controller.
LED state Indication
Yellow light blinking There are response data via RS-485 port.
LED OFF There are no response data via RS-485 port.
 Input point LED
ON
OFF
200m s
1000ms
Red light
single flash
ON
OFF
200m s
2 00ms
200m s
10 00ms
Red light
double flashes
