5. If a seal wash reservoir with a drop-sensor cap is installed, connect the outlet
line from the reservoir cap to the secondary pump head (see Figure 4-3
).
NOTE The drop-sensor cap is not installed on current pump
models.
6. Follow these steps to activate the piston seal wash function:
a. In Chromeleon or Chromeleon Xpress, select Command on the Control
menu or press the F8 key.

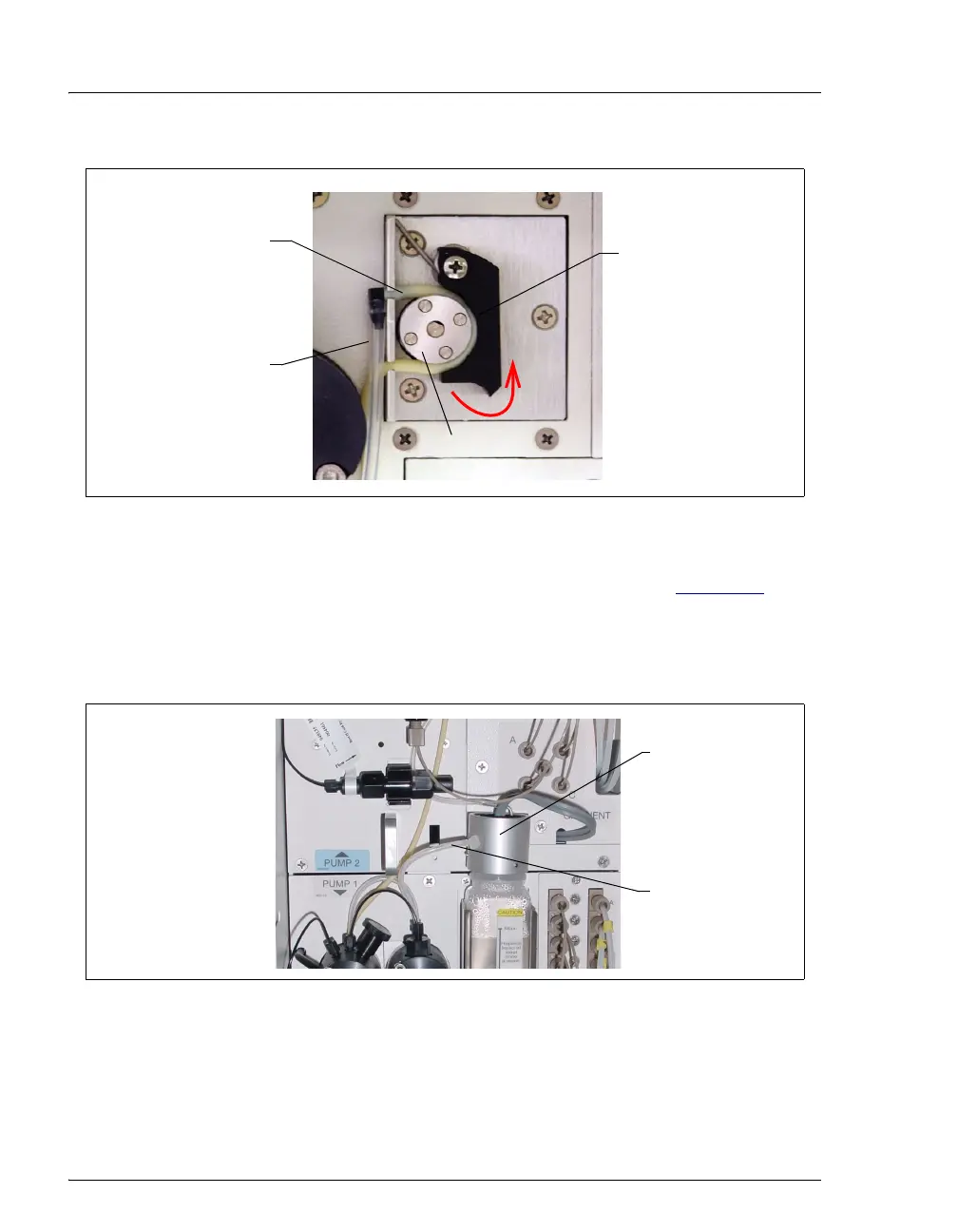

Figure 4-2. Peristaltic Pump
Figure 4-3. Optional Drop-Sensor Reservoir Cap Connections
Rotor
Lever
Outlet Tubing
from Seal Wash
Reservoir
Tubing to
Secondary Pump
Head
Drop-Sensor Cap
(included only on
early pump models)
Seal Wash
Reservoir Inlet
Line
