6. Locate the 10-32 plug (P/N 053981) removed from the EluGen
cartridge vent opening during installation. Install the plug in the vent
opening. (This will prevent leakage from the vent opening when you
turn over the cartridge in Step 8
.)
7. Lift the EluGen cartridge straight up and off the cartridge holder.
8. Turn the EluGen
cartridge upside
down and place it on
the EG drip tray (see
Figure 9-14
). This is
the “service position”
for the cartridge.

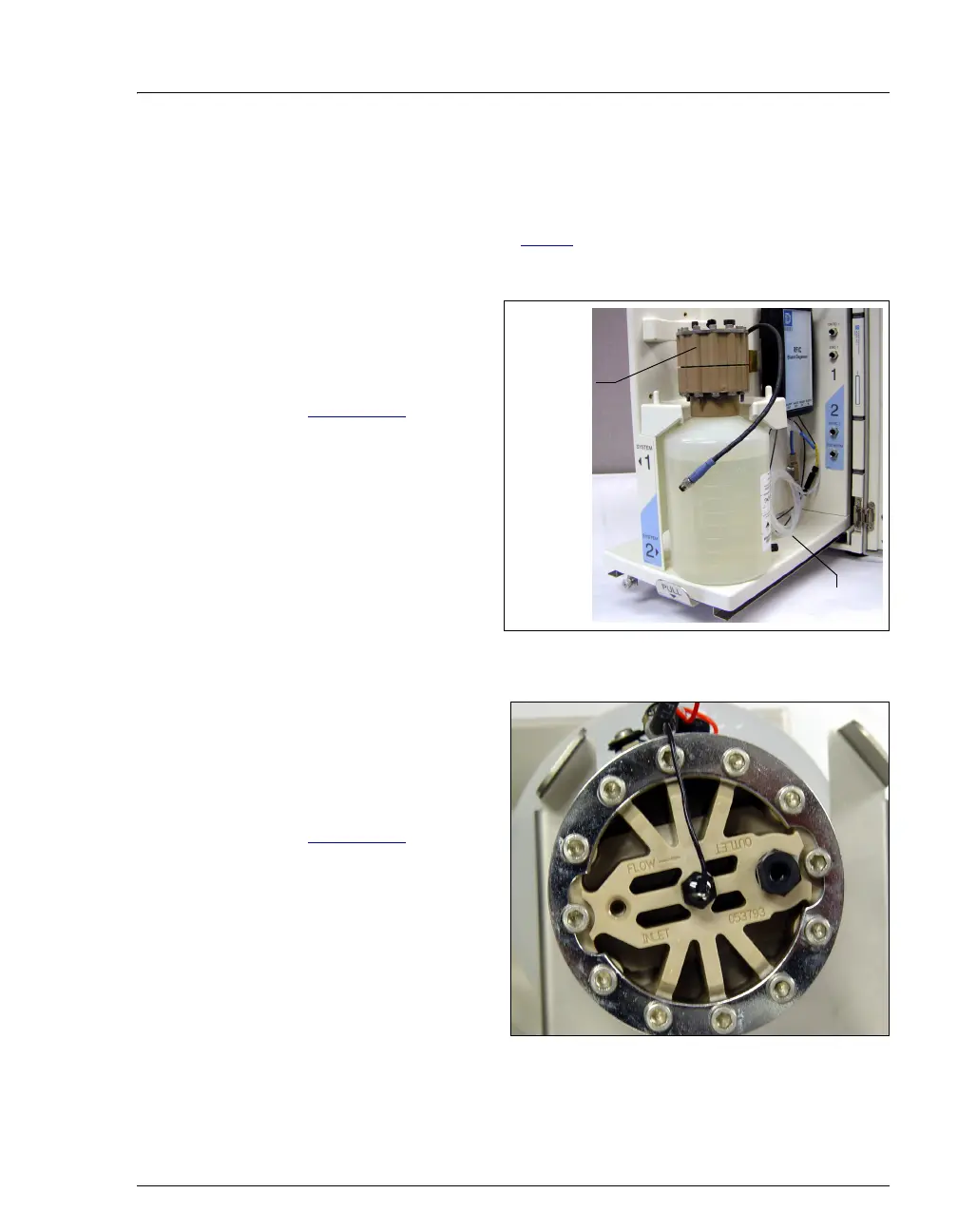

Figure 9-14. EluGen Cartridge in the Service Position
9. Disconnect the EGC IN
and
EGC OUT lines
from the
INLET and
OUTLET ports on the
EluGen cartridge (see
Figure 9-15
).
Figure 9-15. EluGen Cartridge Inlet and Outlet Fittings
(Shown with fittings removed)
Electrolyte
Drip Tray
Chamber
Reservoir
Generation
OUTLET
INLET
