FOR RESTRICTED USE only
Fargo Electronics, Inc.
DTC550 Direct to Card Printer/Encoder User G
uide (Rev. 2.8)
6-87

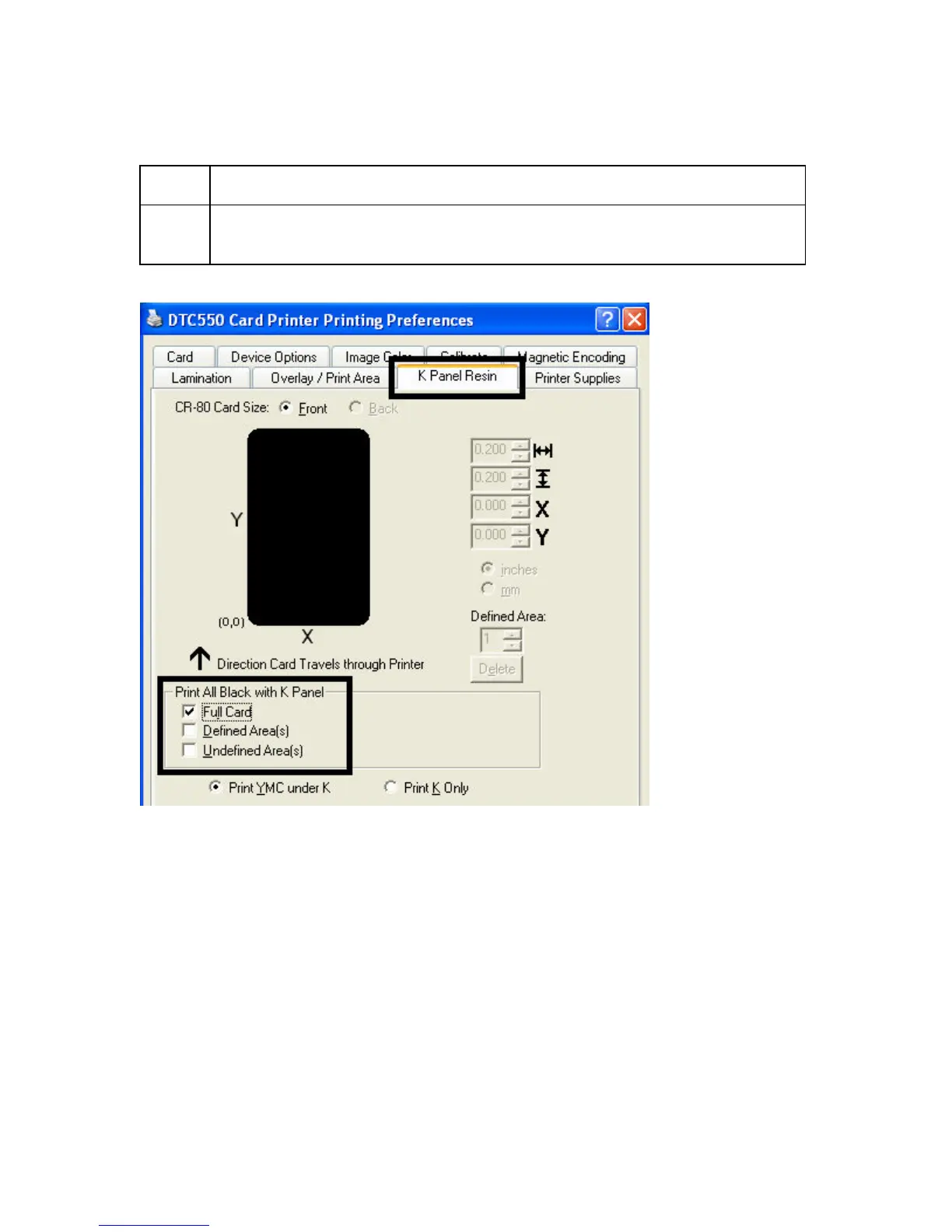

Selecting the Full Card with the K Panel Resin tab
Step
Procedure
1 Select
the
Full Card
option to print the resin black (K) panel for all black
found within all areas of the image, as shown below.
264
