Defining the positioning of the area on the Card
Step Procedure

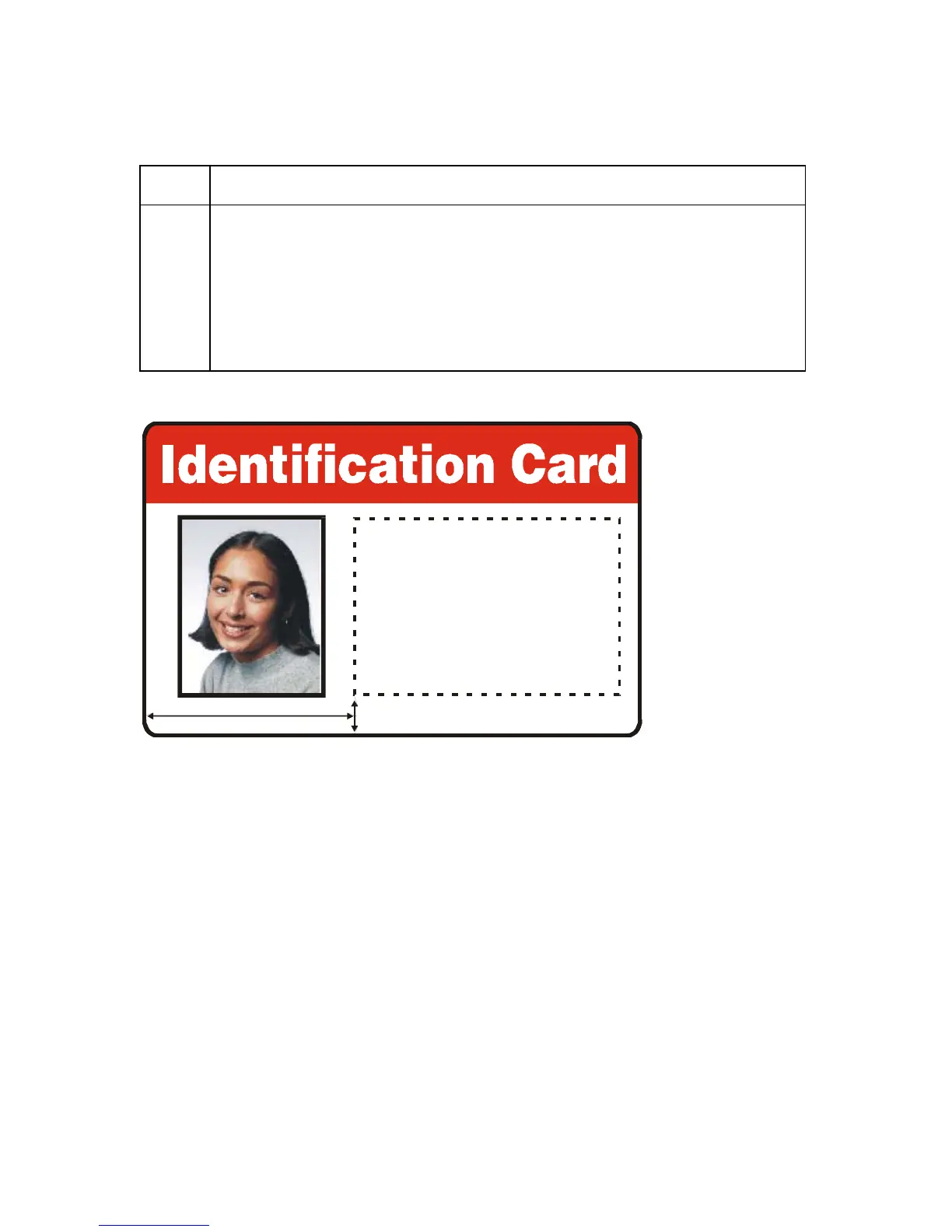

1 Once the area is sized properly, measure the location where this area is to
be positioned on the card.
a. Measure from the lower left corner of the card up and over to the lower
left corner of where the defined area is to begin.
b. Enter these values into the X and Y boxes, as shown below.
c. Note that the card grid lines are spaced at .2” (5mm) intervals.
*172355*
Karen Atkins
Access Level-2
ID# 1234478
Y
=0.2“
X=1.4“
