Setting the Magnetic TOF (continued)
Step Procedure
5 Enter a Magnetic TOF value appropriate for the direction for the magnetic
data to move.
• As a rule, a shift of ±27 equals about .0625" (1/16") or 1.6mm. (Note:
Keep this in mind when adjusting this option to avoid over-adjusting.)
• If the negative value is set too high, for example, the Printer may start
encoding before the card's Magnetic Stripe reaches the encoding
head.
6 Repeat steps 1 to 5 until the Magnetic TOF is correct.
7 Press DONE to save the value. Press YES when asked to save the
change.

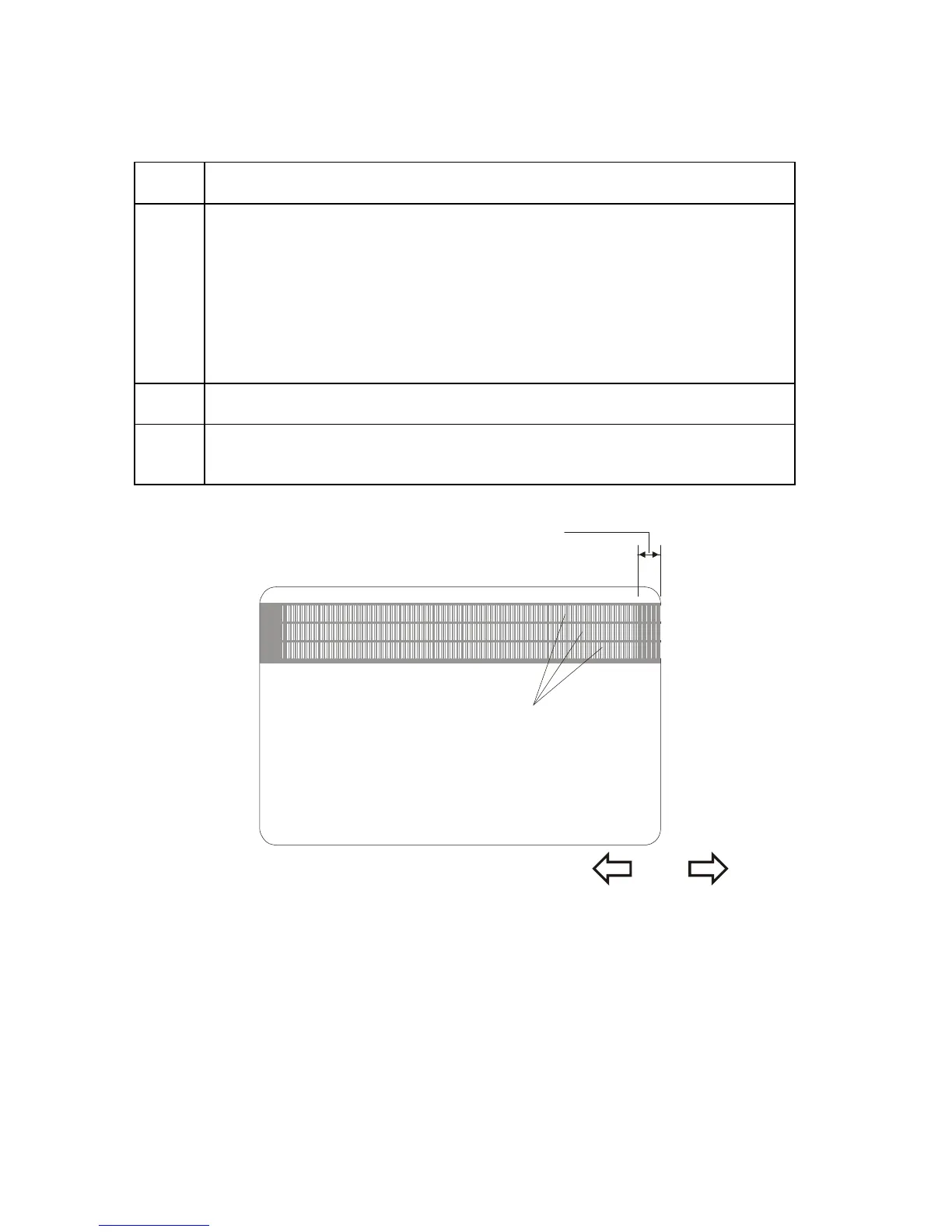

Magnetic Track Data
.293“ / 7.44mm
Trailing Edge
of Card
Leading Edge
of Card
- +
