Paper Jams
575
Problem Solving
15
Paper jams in the Finisher D2-P with Booklet Maker
The following describes how to clear paper jams in the finisher when the Finisher D2-
P with Booklet Maker (optional) is installed.
This section describes how to clear paper jams at the following locations:
Paper Jams in Tray 8 (Inserter) ................................................................................................ 575
Paper Jams at the Lever 1a and the Knob 1c............................................................................ 576
Paper Jams at the Lever 1d....................................................................................................... 577
Paper Jams at the Lever 1b....................................................................................................... 577
Paper Jams at the Lever 3b and 3d........................................................................................... 578
Paper Jams at the Lever 3e and the Knob 3c............................................................................ 579
Paper Jams at the Lever 3g and the Knob 3f............................................................................ 579
Paper Jams at the Lever 4b and the Knob 3a ........................................................................... 580
Paper Jams at the Lever 2a and the Knob 3a when D2 Folder Unit is Installed ...................... 581
Paper Jams at the Lever 2b and the Knob 2c when D2 Folder Unit is Installed...................... 581
Paper Jams at the Knob 2c, the Levers 2e/2f and the Tri-fold Output Tray 2d
when D2 Folder Unit is Installed ............................................................................................. 582
Paper Jams at the Tri-fold Tray 2d and the Lever 2g when D2 Folder Unit is Installed ......... 583
Paper Jams at the Unit 4 and Knob 4a for the Finisher D2-P with Booklet Maker ................. 583
Paper Jams at the Output Tray ................................................................................................. 584
Paper Jams at the Finisher Tray ............................................................................................... 584
Paper Jams at the Booklet Output Tray for the Finisher D2-P with Booklet Maker ............... 585

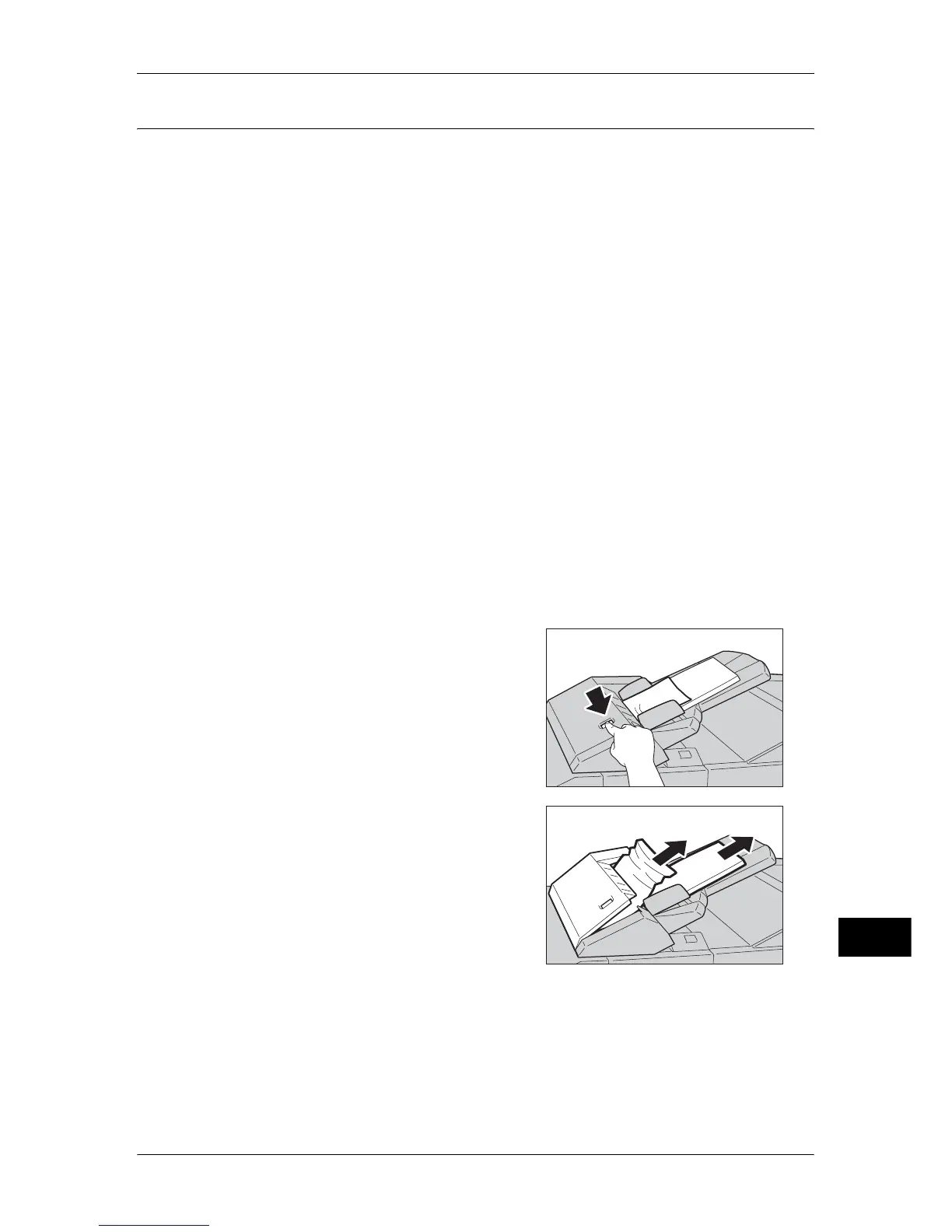

Paper Jams in Tray 8 (Inserter)
The following describes how to clear paper jams in Tray 8 (Inserter).
1 Press the Cover button.
2 Open the cover 1e, and then remove the
jammed paper and all paper loaded in the
inserter.
Important • When two or more sheets of paper are
loaded, remove all of the sheets from the
tray.
Note • If paper is torn, check for any torn pieces
of paper inside the machine.
3 Fan the paper you removed making sure that all four corners are neatly aligned, and
then load them again.
