Alignment Adjustment Settings
623
Appendix
16

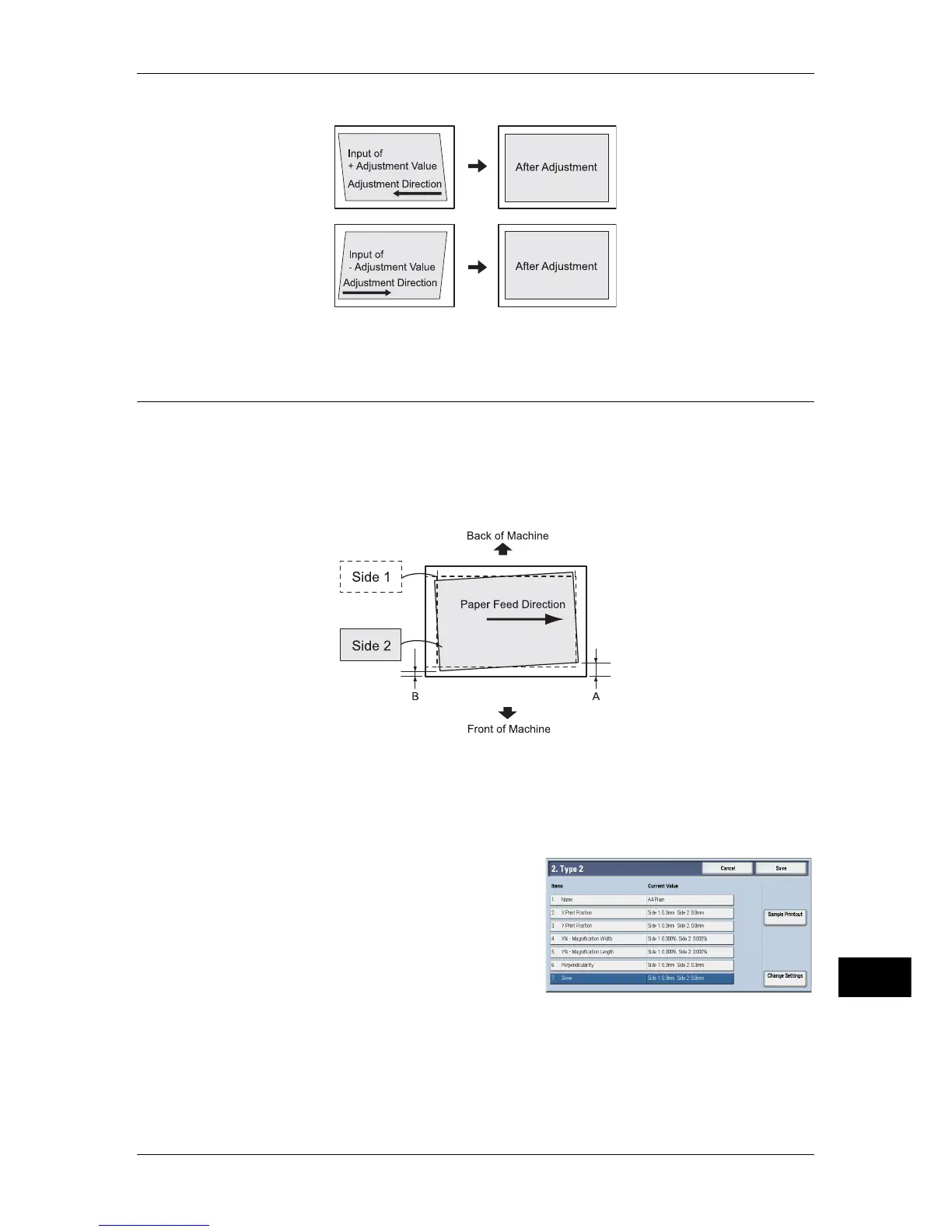

• Entering a positive or negative value adjusts the squareness as shown below:
4 Select [Save].
Skew Adjustment
Adjust image skewing (tilt extent) in 0.1 mm increments for each of sides 1 and 2.
Specify a positive value when you want to adjust the position of the image in the
opposite direction to the paper feed direction, and a negative value when you want to
adjust the image in the paper feed direction.
1 Check the sample printout, and measure the squareness offset amount that occurred.
Use the following equation to obtain the tilt extent amount, with "A" as the length of the
leading registration edge of the output sample, and "B" as the length of the trailing
registration edge of the output sample.
Skew amount = A - B
2 Select [Skew], and press select [Change
Settings].
To Next Page
