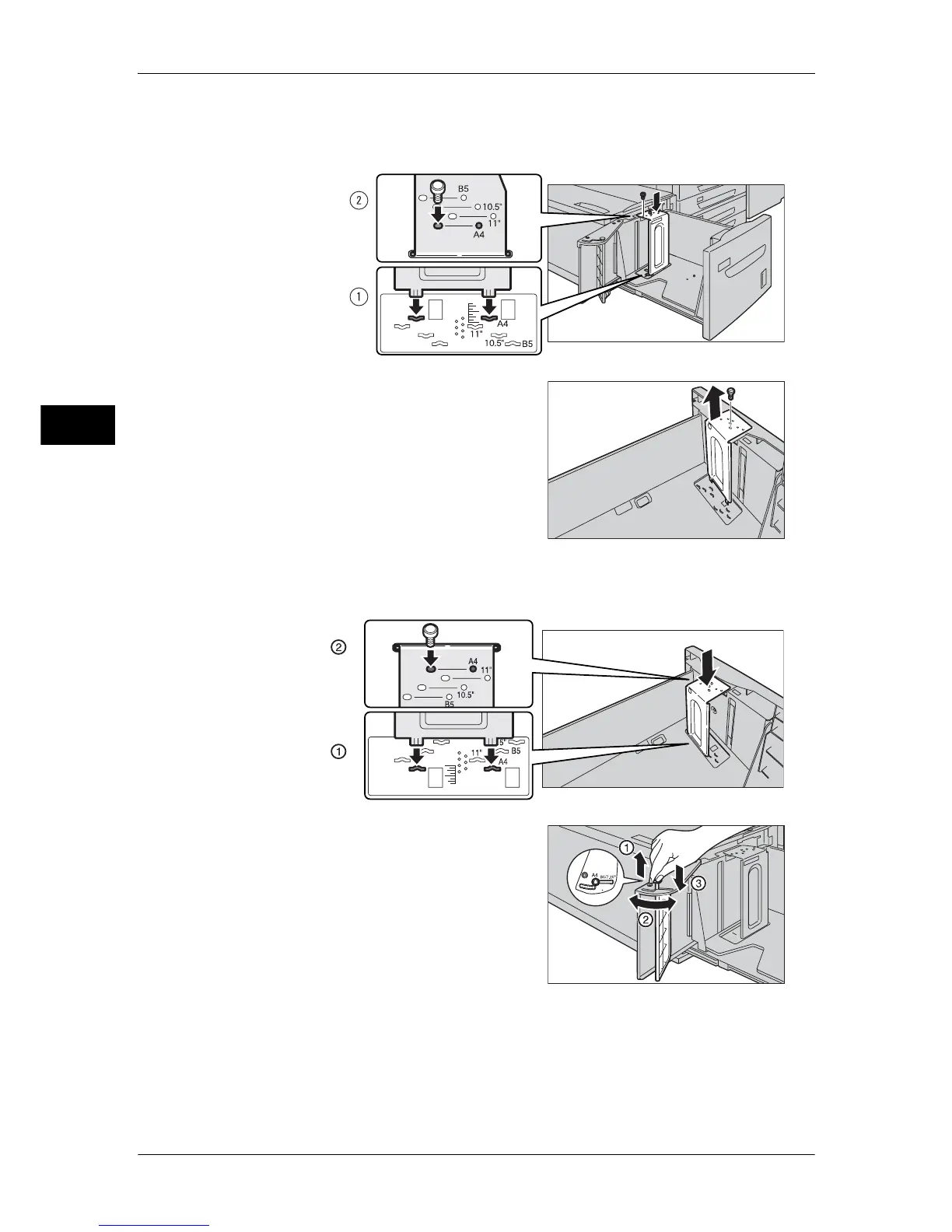

4 Insert the small protrusions at the bottom of the guide into holes corresponding to the
paper size (1). Insert the screw into a hole corresponding to the paper size on the top
of the guide and screw up (2).
5 Unscrew the screw of the front guide and
remove the guide from the Tray.
6 Insert the small protrusions at the bottom of the guide into holes corresponding to the
paper size (1). Insert the screw into a hole corresponding to the paper size on the top
of the guide and screw up (2).
7 Pull the lever up of the end guide and move
it along the slot (1). Set the lever at the
position corresponding to the paper size (2)
and press the lever down (3).
Important • Adjust the end guide accordingly with the
size of paper. If the end guide is not
adjusted correctly, the machine cannot
feed the paper properly, resulting in a
paper jam.
Note • The slot on the left of 8.5” is not used.
