TX1330 M1
Upgrade and Maintenance Manual 155
System fan and air duct

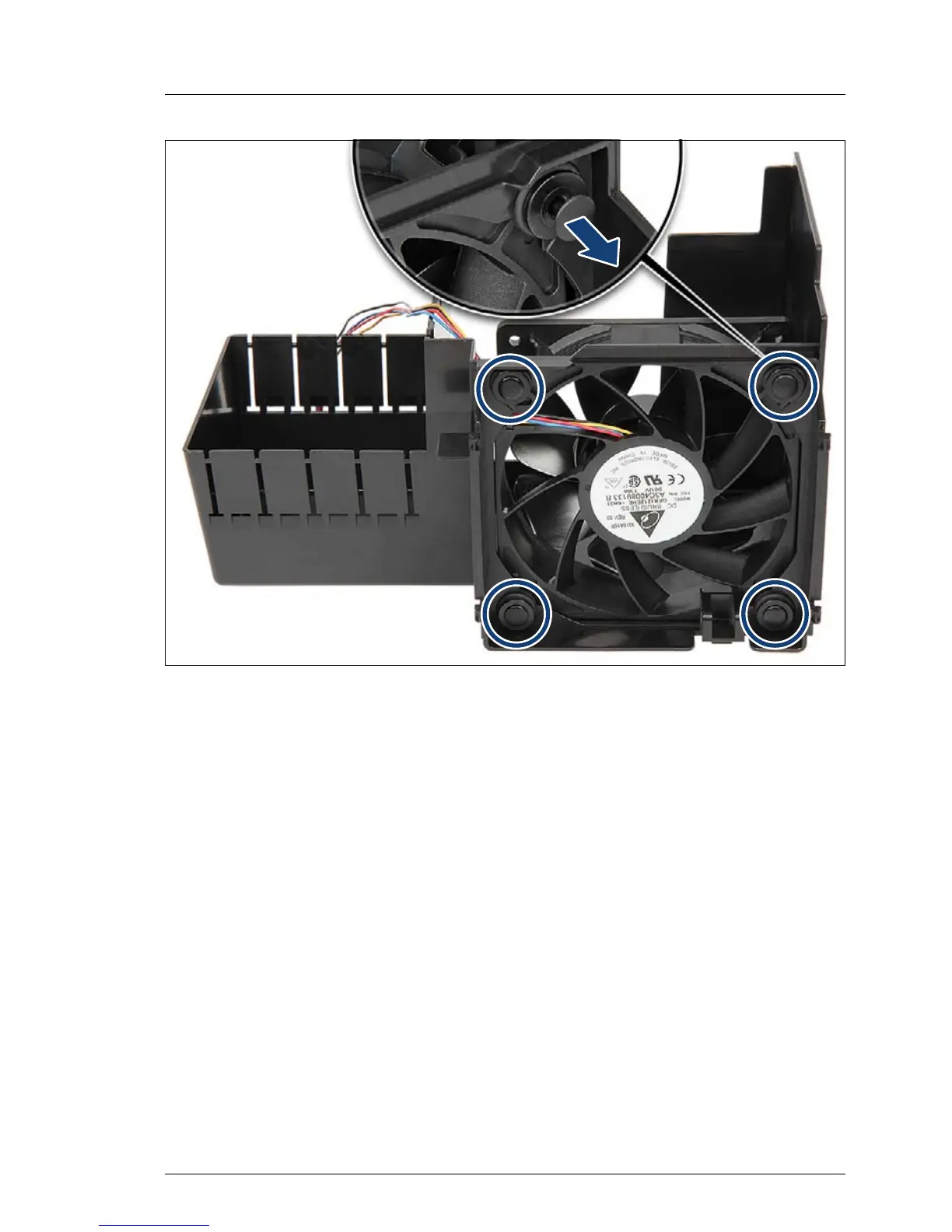

Figure 72: Removing the safety pins from the snap rivets
Ê Remove the safety pins (see circles) from the four snap rivets on the air duct.
