Installing the slot bracket

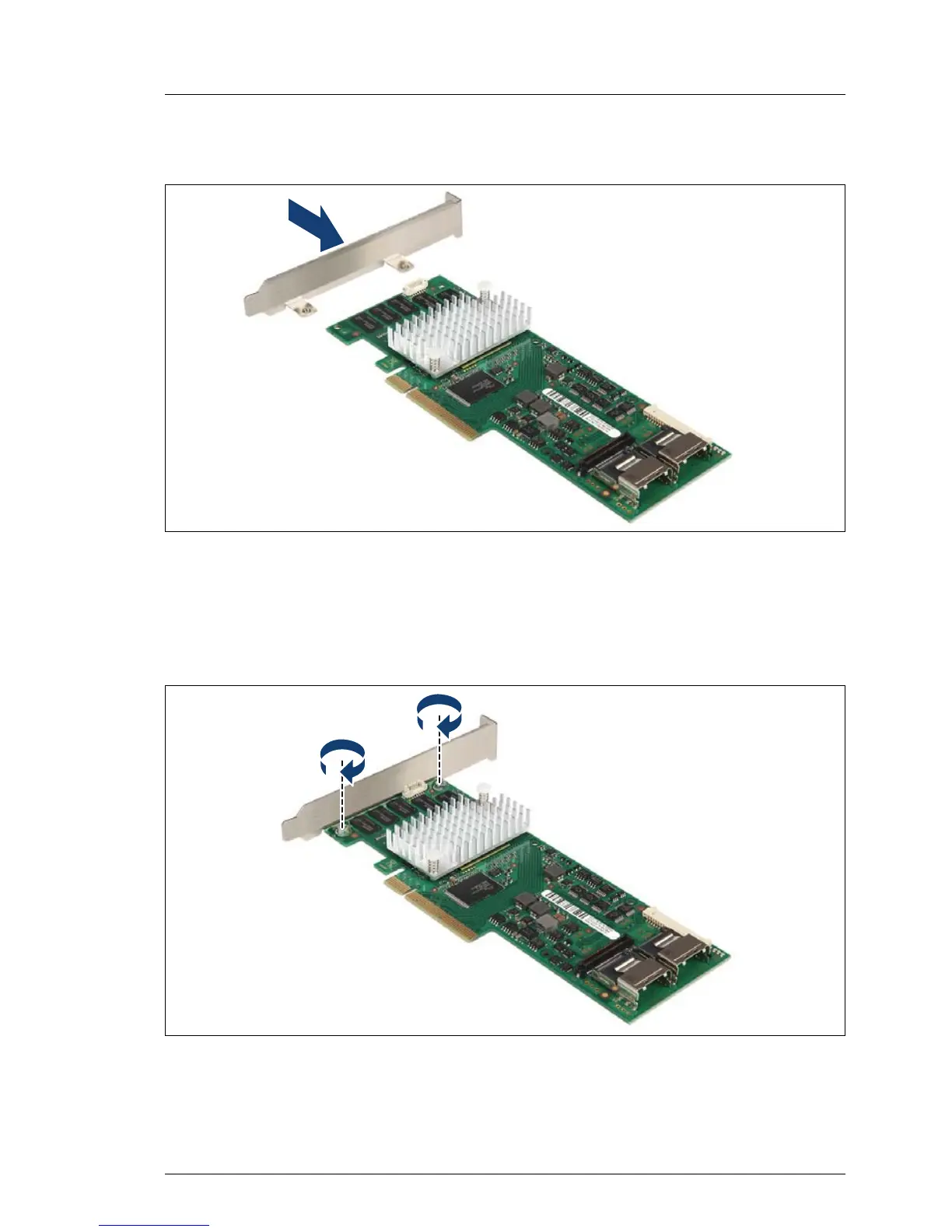

Figure 77: Installing the PCI slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket.
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Figure 78: Installing the PCI slot bracket (B)
Ê Secure the slot bracket to the controller with two screws.
