166 Upgrade and Maintenance Manual TX1330 M1
Expansion cards and backup units

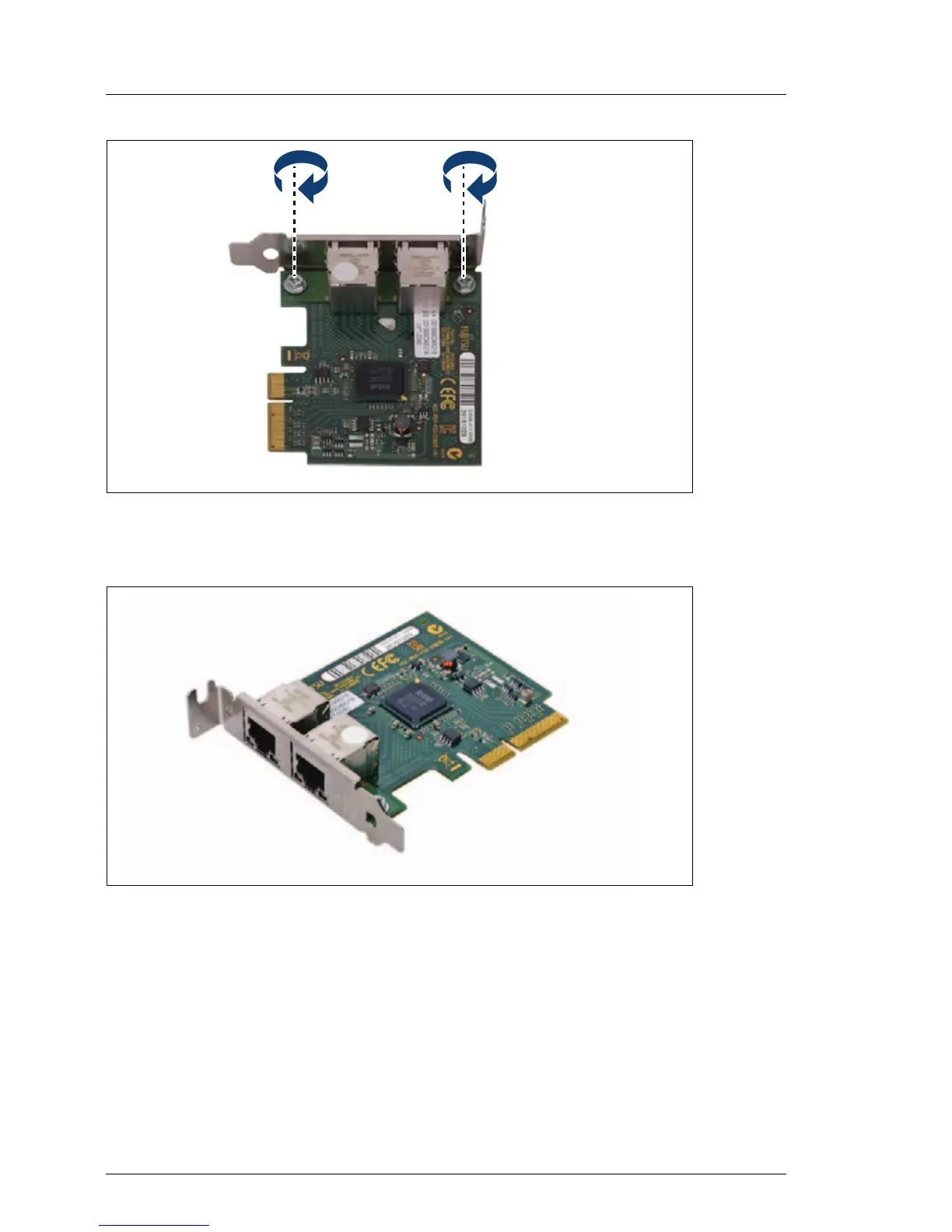

Figure 83: Fastening the slot bracket - D3035
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 84: Assembled network adapter D3035
