TX1330 M1
Upgrade and Maintenance Manual 171
Expansion cards and backup units

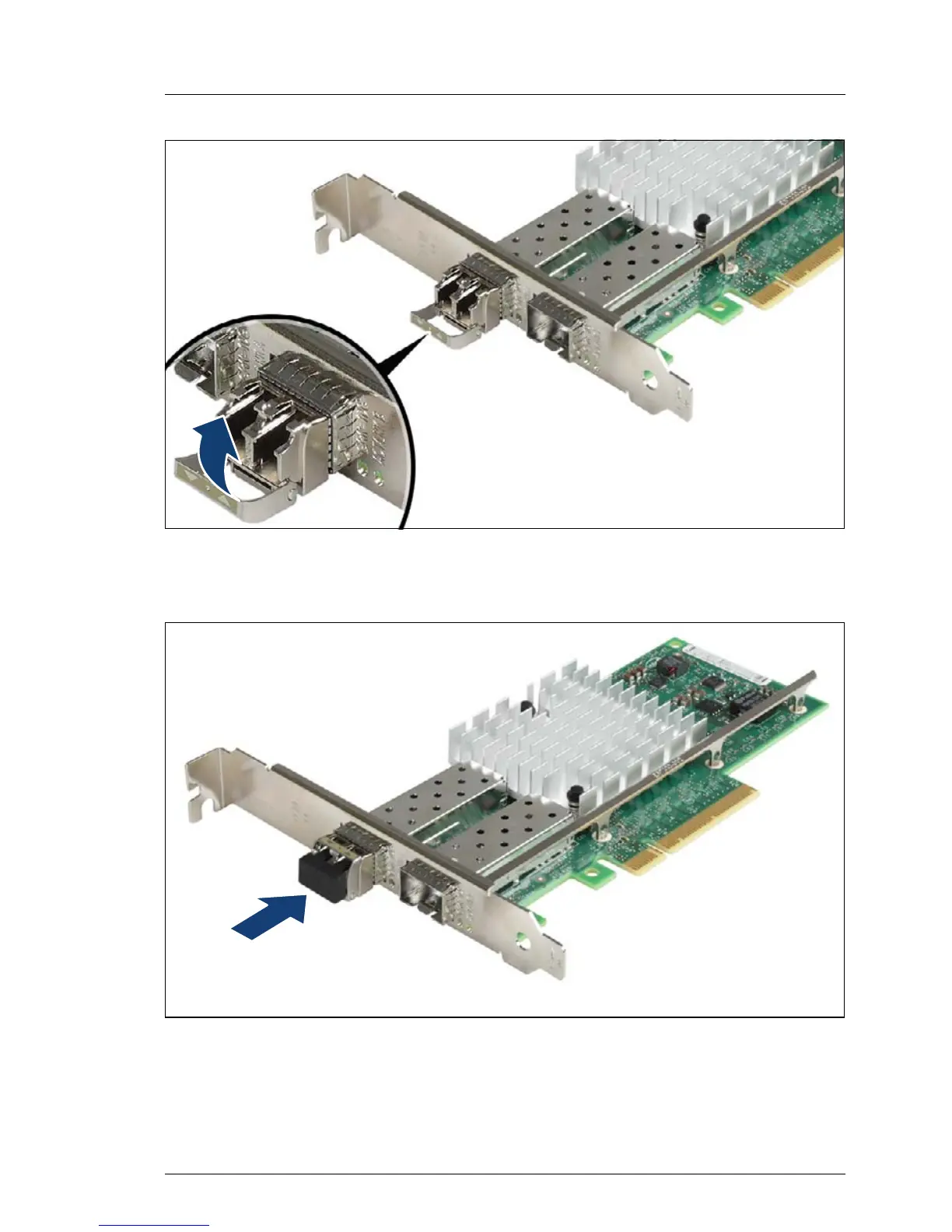

Figure 91: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 92: Attaching the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
