TX1330 M1
Upgrade and Maintenance Manual 277
System board and components

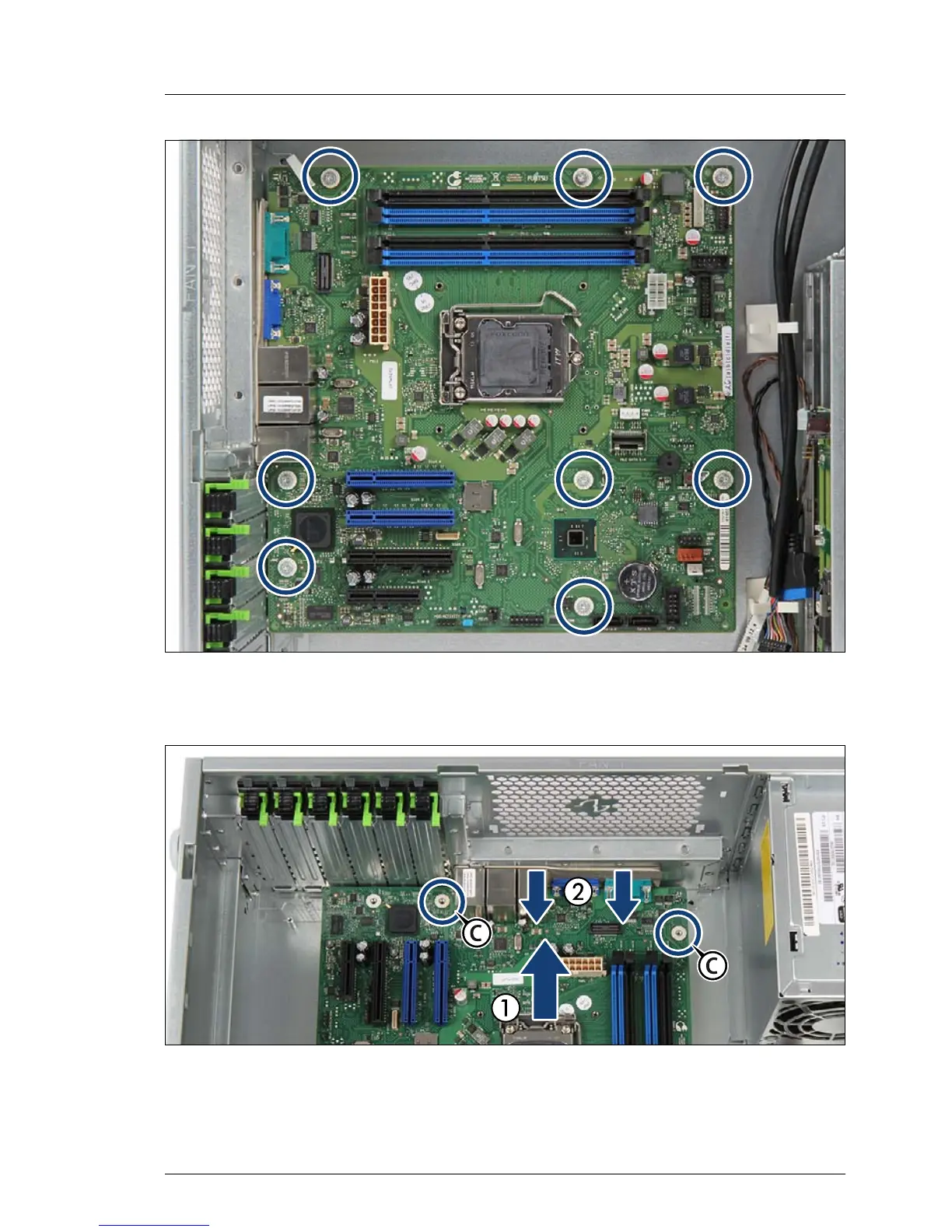

Figure 177: Screws system board
Ê Remove eight screws from the system board (see circles).
Figure 178: Detaching the system board
Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot (1) in order to detach it from the centering bolts (C).
