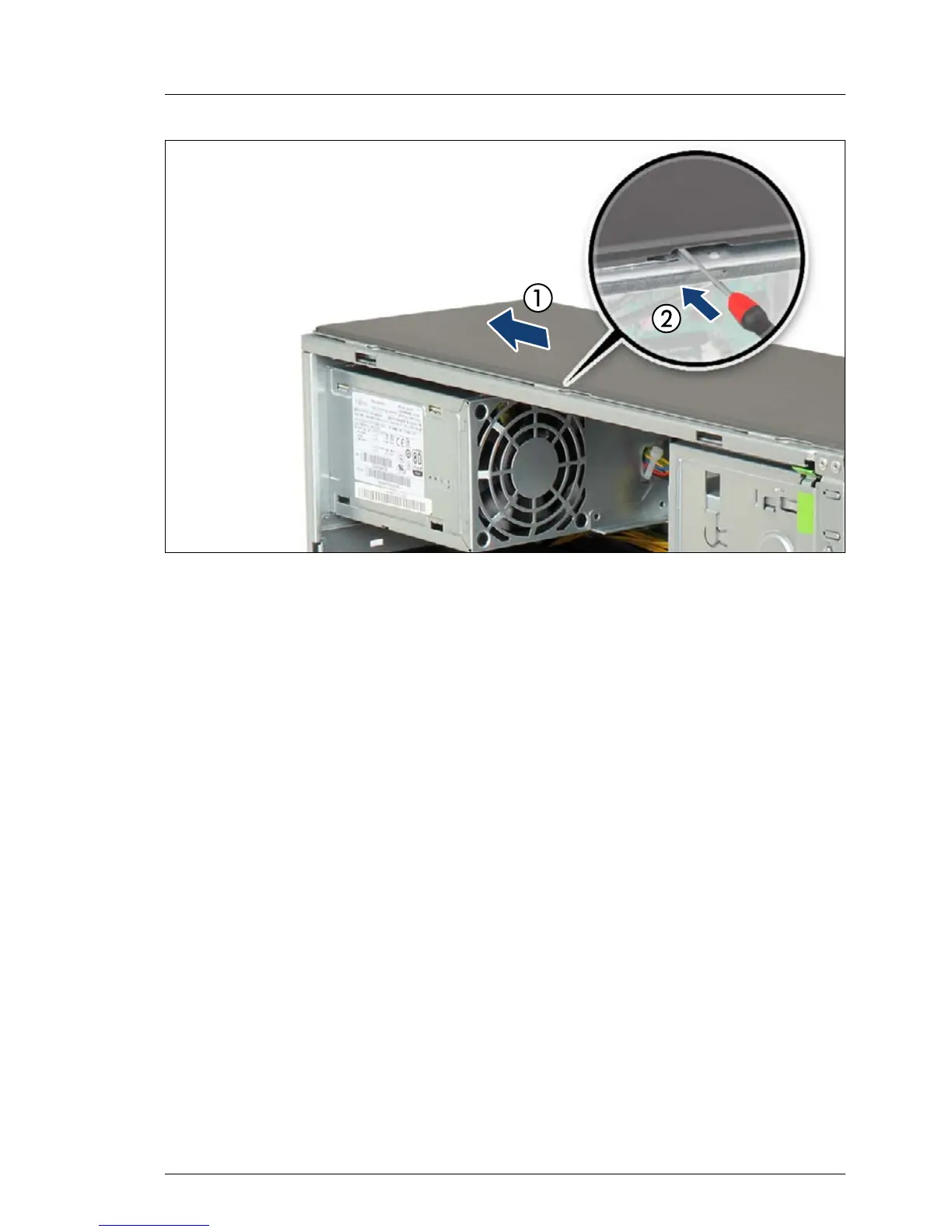

Figure 190: Removing the right side cover (B)
Ê Slide the right side cover towards the server rear as far as it will go (1).
Ê Remove the three hooks on the right side cover from the slots on the upper
chassis edge:
Ê Using a slotted screw driver, slightly pry up on the middle hook until it
disengages (2).
Ê Pull up on both ends of the right side cover to remove the left and right
hooks from the slots on the upper chassis edge.
Ê Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Ê Carefully turn the server upside down.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
Ê Lift off and remove the right side cover.
I The right side cover is no longer required.
Ê Leave the server in its upside down position.
