Removing the accessible drive cage
Ê Remove the front panel module as described in section "Removing the
defective front panel module" on page 249.
Ê If applicable, remove all accessible drives as described in section
"Removing an accessible drive" on page 241.

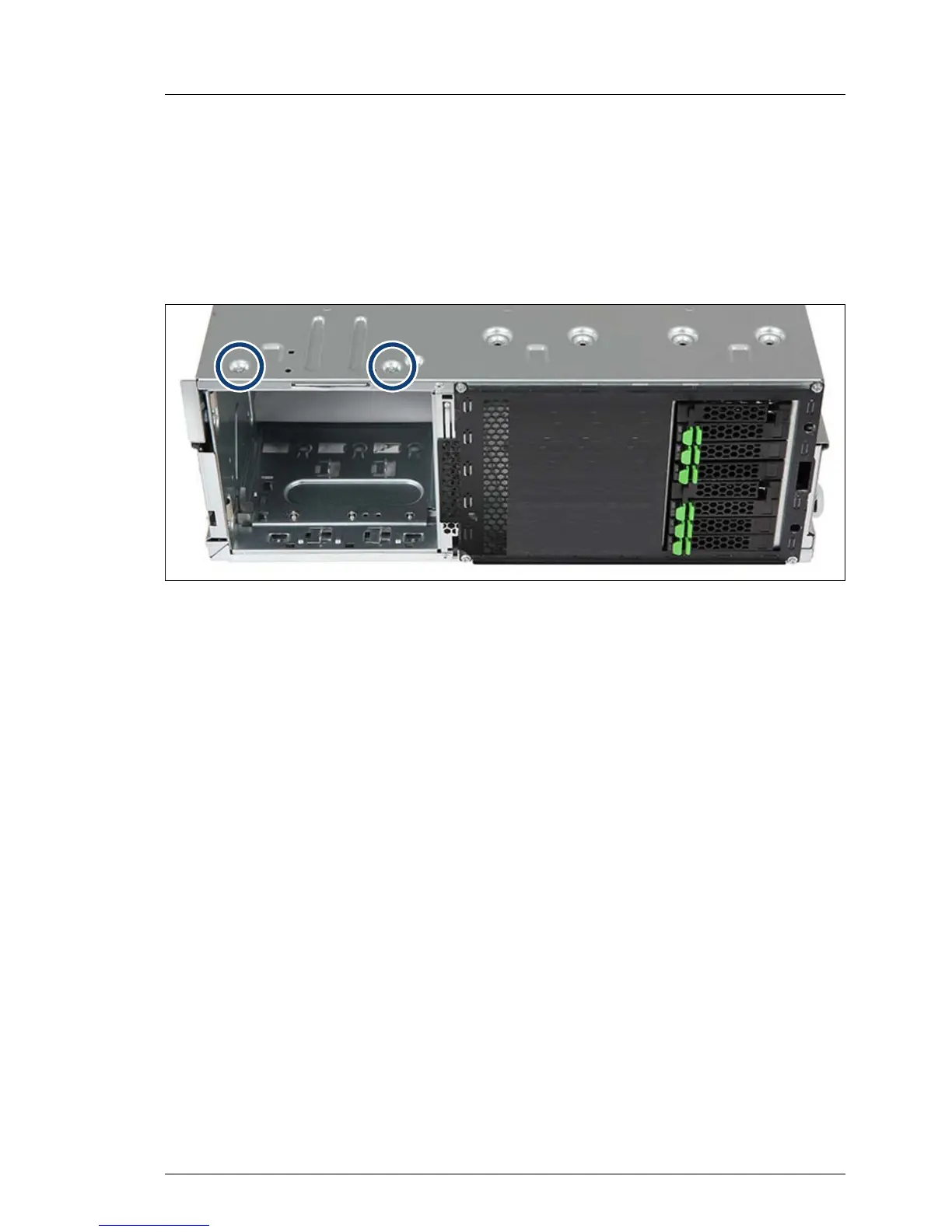

Figure 192: Detaching the accessible drive cage (A)
Ê Remove two screws from the bottom side of the server as shown.
Ê Bring the server back to its horizontal position.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply units in order to facilitate
the task.
