Converting a tower model to a rack model

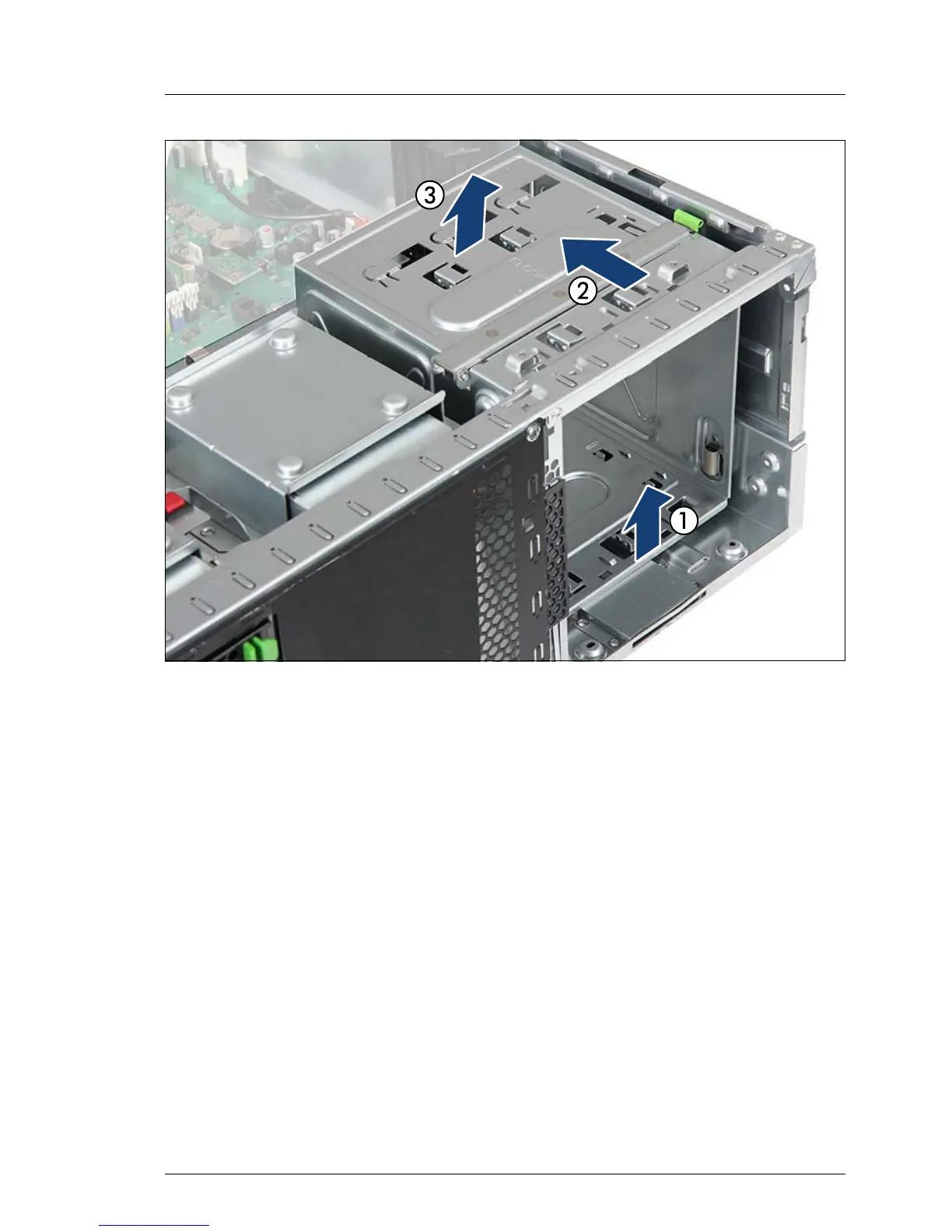

Figure 194: Removing the accessible drive cage
Ê Slightly lift up the accessible drive cage to disengage its front bottom edge
from the slot on the chassis floor (1).
Ê Slide the accessible drive cover from under the chassis frame as shown (2).
Ê Lift the accessible drive cage out of the chassis (3).
