TX1330 M1 Upgrade and Maintenance Manual 295
Converting a tower model to a rack model
Reinstalling the accessible drive cage

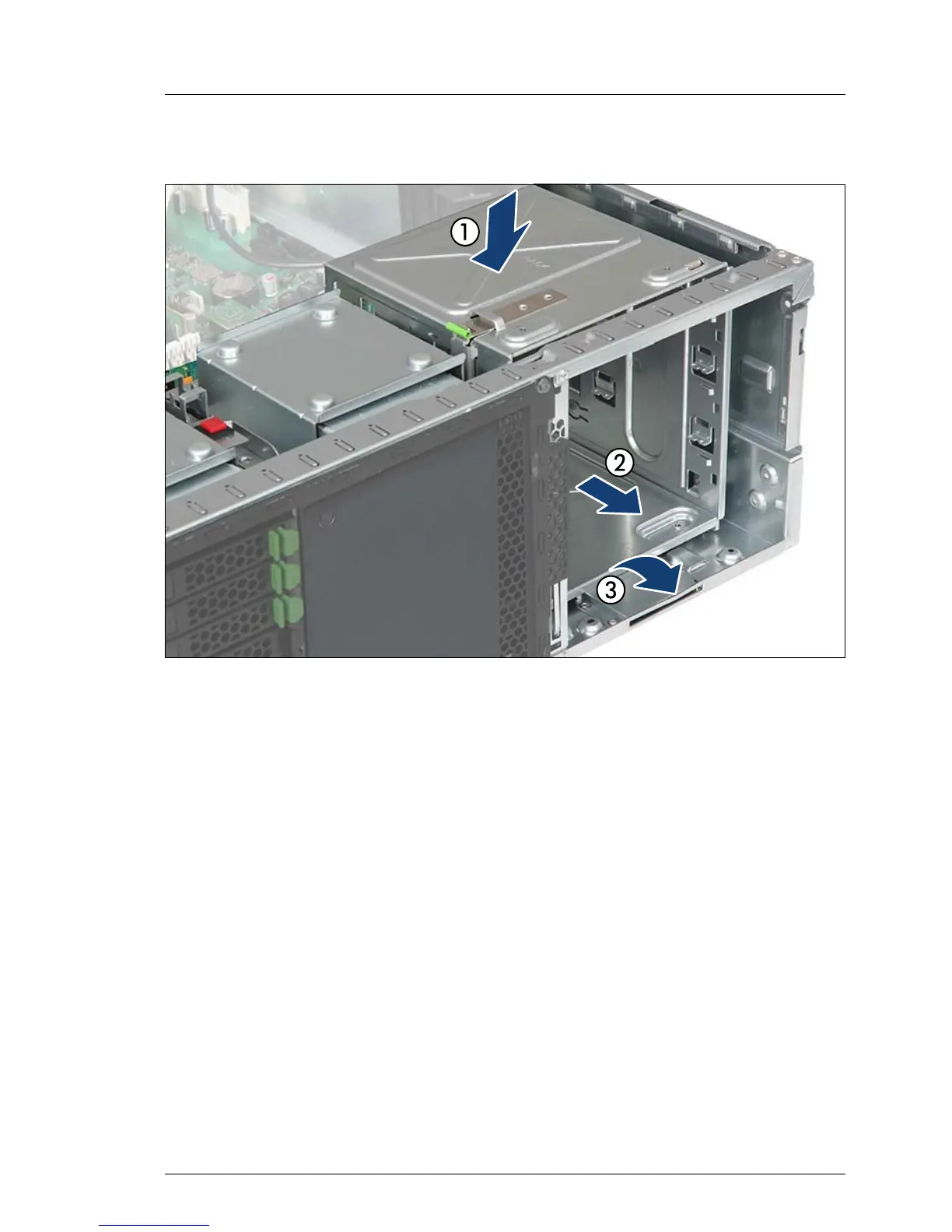

Figure 196: Mounting the accessible drive cage
Ê With its "RACK" stamping facing up, lower the accessible drive cage into the
chassis (1).
Ê Slide the accessible drive cage towards the server front as far as it will go
(2).
Ê Ensure that the front bottom edge on the accessible drive cover properly
engages in the slot in the chassis floor (3).

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
