Fujitsu Server PRIMERGY TX1330 M1 User Manual

306 Upgrade and Maintenance Manual TX1330 M1
Cabling

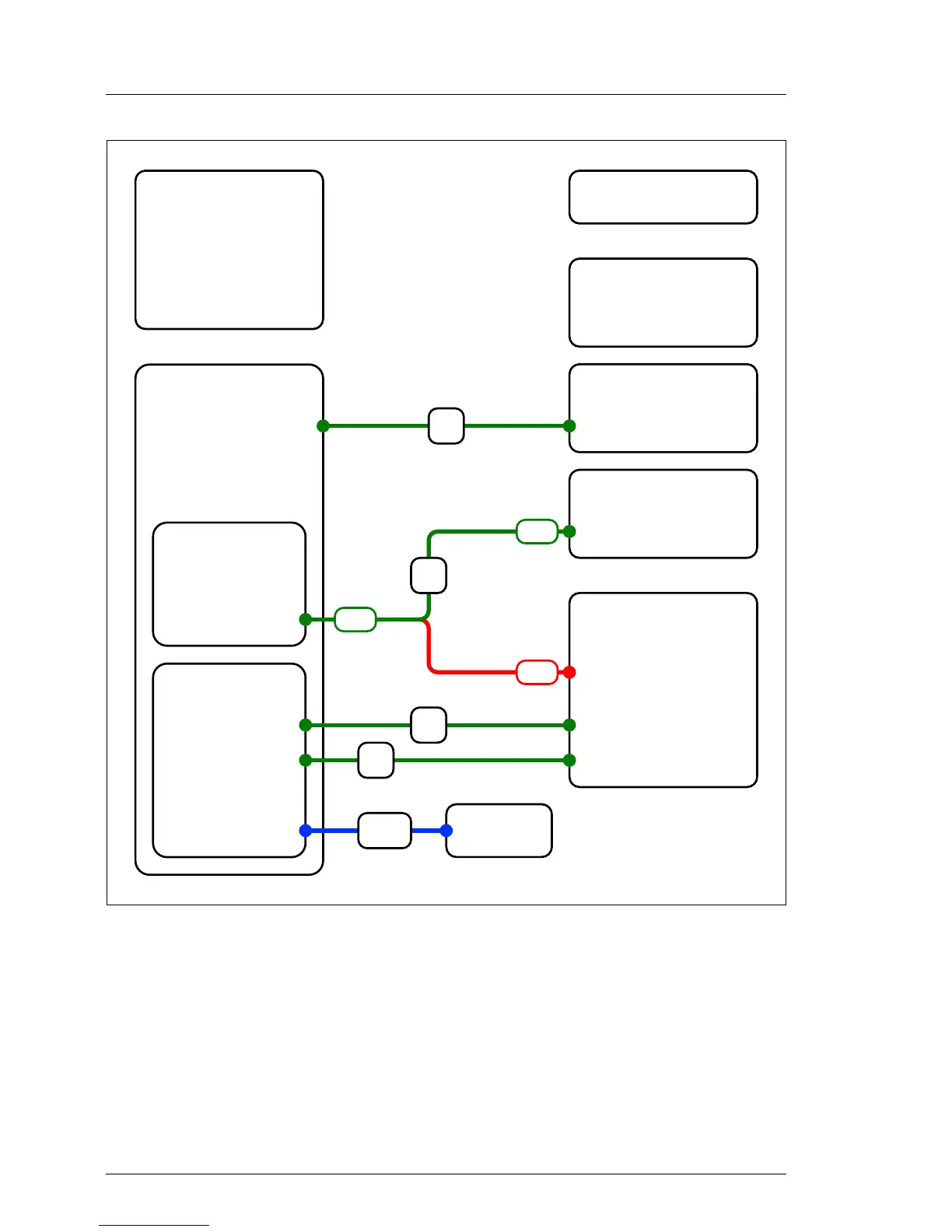

Figure 205: SAS cabling with LTO 5/6 backup drive
PSU
System Board D3239
USB1 DAT
USB1 AUX
Front Panel
Drive Bay 1
SATA ODD
Drive Bay 2
USB Backup Drive
Drive Bay 3
LTO 4/5/6 Backup Drive
X10
X9
X1
X1
HDD Backplanes
3.5” HDD BP
2.5“ HDD BP 2
2.5” HDD BP 2
3.5” / 2.5“ BP
MLC 2
MLC 1
SAS Controller
Slot 3
/ 2
MLC 2
MLC 1
BBU / FBU
SAS Controller
Slot 4
(Boot)
BBU / FBU
6
6
12
13
9 / 10
P2
P1
P3

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
