54 Upgrade and Maintenance Manual TX1330 M1
Basic hardware procedures
Ê Insert the key into the lock on the server front.
Ê Turn the key clockwise to unlock the front and side covers (1).
Ê Remove the key from the server front (2) and set aside for later use.

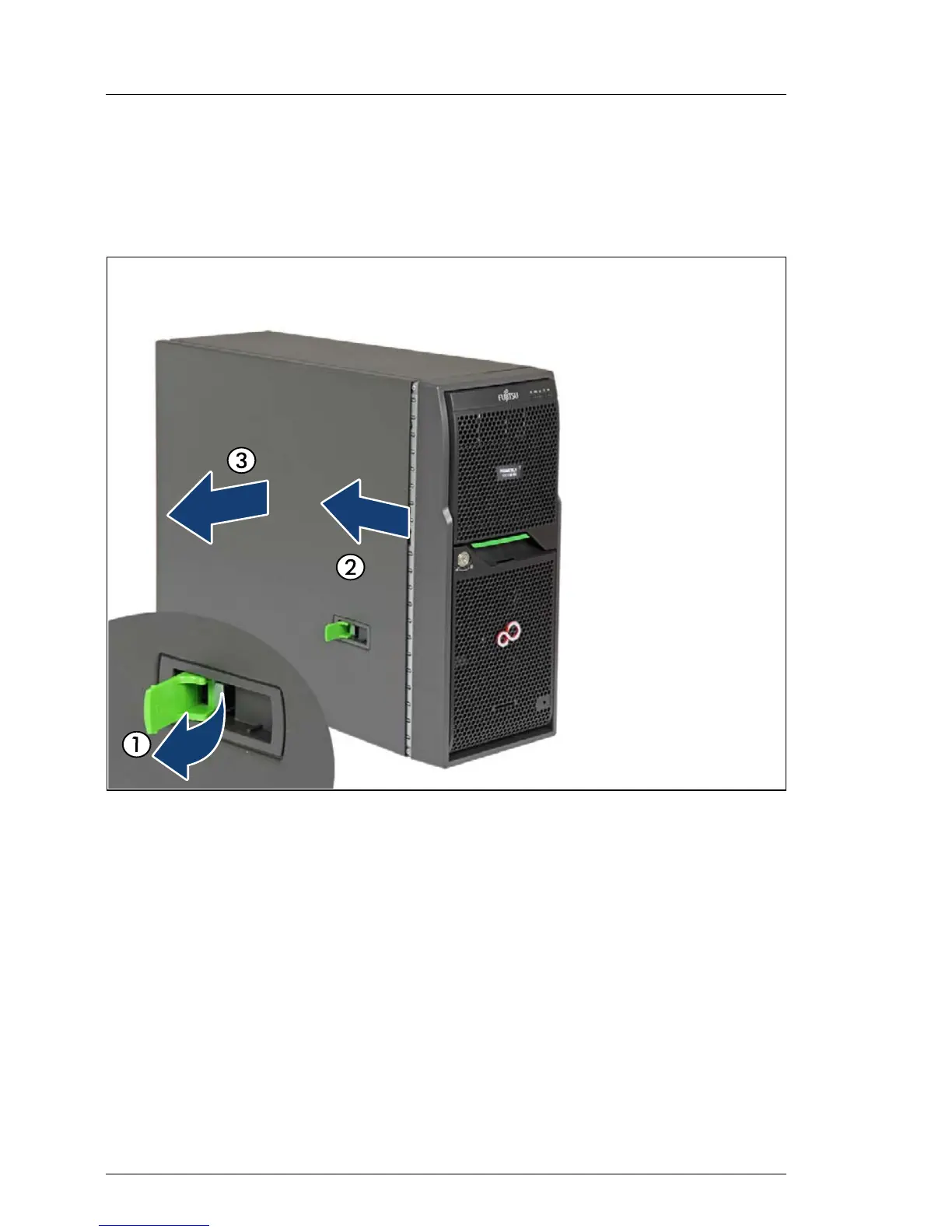

Figure 10: Removing the side cover (tower server)
Ê Open the locking lever (1). This will slide the side cover back disengaging
the locking mechanism (2).
Ê Remove the side cover (3).

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
