CHAPTER 6: COMMUNICATIONS NETWORK SETTINGS
D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 103
Port 1 Ethernet Duplex, Port 2 Ethernet Duplex, Port 3 Ethernet Duplex
Range: Full Duplex, Half Duplex
This actual value indicates the Ethernet duplex mode on each of the three ports.
Port 1 Ethernet Speed, Port 2 Ethernet Speed, Port 3 Ethernet Speed
Range: 10 Mbps, 100 Mbps
This actual value indicates the network speed on each of the three Ethernet ports.
Port 1 Ethernet Link Status, Port 2 Ethernet Link Status, Port 3 Ethernet Link Status
Range: Online, Offline
This actual value indicates the connection status on each of the three Ethernet ports.
IEC 60870-5-104 Available
Range: No, Yes
This actual value indicates if the IEC 60870-5-104 protocol is enabled on the Ethernet
ports.
IEC 61850 Available
Range: No, Yes
This actual value indicates if the IEC 61850 protocol in enabled on the Ethernet ports.
Configure IP Network Status
Range: OK, PORT 1 NETMASK ERROR, PORT 2 NETMASK ERROR, PORT 3 NETMASK ERROR,
PORT 1 IP ADDR RSVD, PORT 2 IP ADDR RSVD, PORT 3 IP ADDR RSVD, PORT 1 IP ADDR
LPBK, PORT 2 IP ADDR LPBK, PORT 3 IP ADDR LPBK, PORT 1 IP ADDR NETWK, PORT 2 IP
ADDR NETWK, PORT 3 IP ADDR NETWK, PRT 1-2 SUBNET OVRLP, PRT 1-3 SUBNET OVRLP,
PRT 2-3 SUBNET OVRLP, > 1 GATEWAY DEFINED
This actual value indicates the validity of the IP parameters applied to the network stack.
For details on the status values, see Ethernet ports
on page 95. The Ethernet parameters
for ports 2 and 3 exist only when the D90
Plus
contains a communications card.
Remaining TCP/IP connections
Select the Actual Values > Communications > Remaining Connection menu item to open
the remaining TCP/IP connections actual values window.

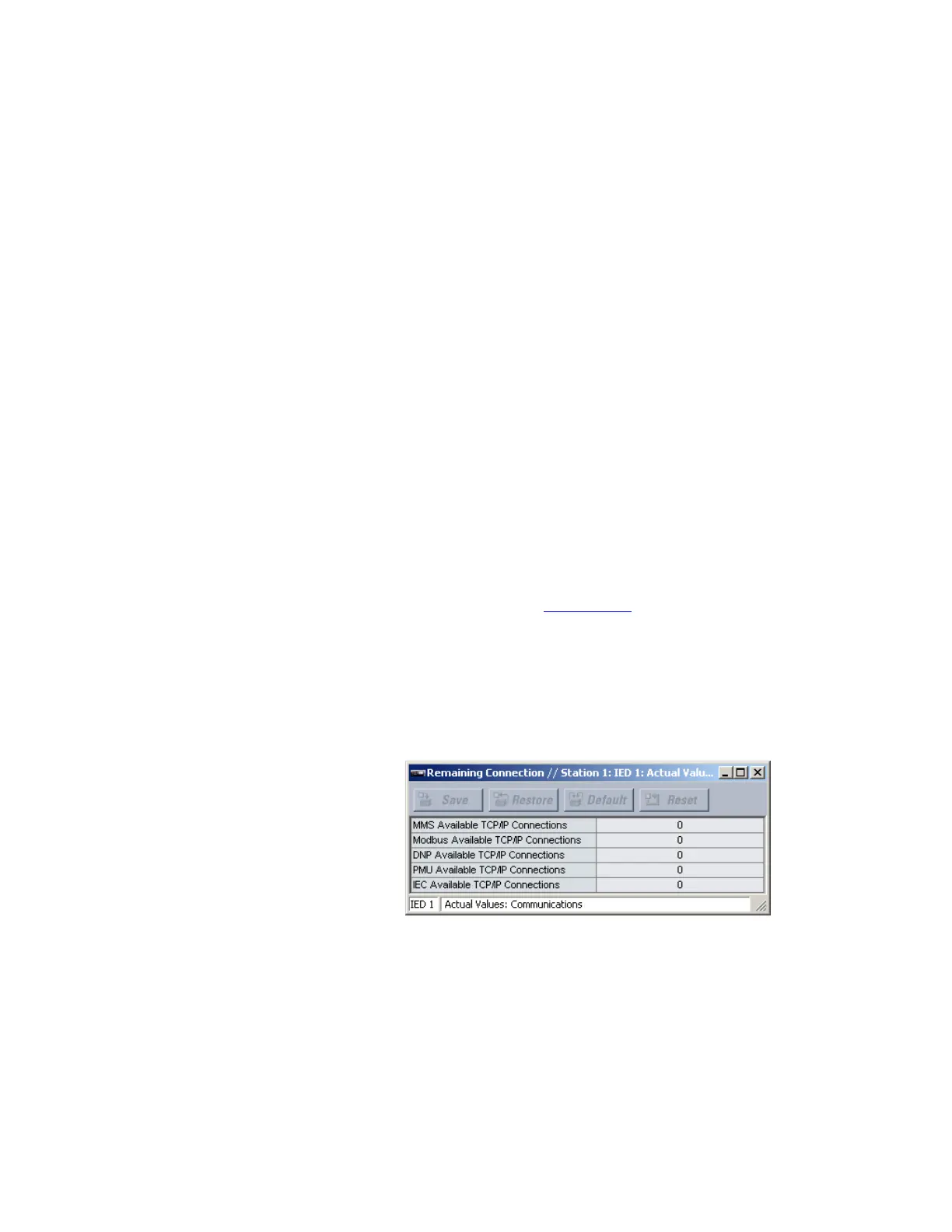

Figure 83: Remaining TCP/IP connections actual values
The following actual values are available to display the remaining TCP/IP connections.
MMS Available TCP/IP Connections
Range: 0, 1, 2, 3, 4, 5
This actual value indicates the number of connections available for IEC 61850 MMS
communications.
Modbus Available TCP/IP Connections
Range: 0, 1, 2, 3, 4
This actual value indicates the number of connections available for Modbus
communications.
